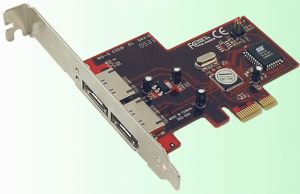

Addonics ADSA3GPX1-2E eSATA II RAID Controller - 2 Ports - PCI-Ex1
  • RAID 0,1,1+0,5,JBOD
  • Port Multiplier (PM) Support

IMG 1 of 2
No Longer Available
Part Number:
127743
(?) Brand:
Addonics Web Site
Manuf No:
ADSA3GPX1-2E
ADSA3GPX12E
Shipping Weight:
0.5 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
ADSA3GPX12E, ADSA3GPX1-2E
This new family of PCI Express controllers offer the latest 3G/sec SATA performance and configuration flexibility at an amazingly affordable price. Comes with choice of 2 internal SATA II ports or 2 eSATA II ports for external SATA connection. both controllers can also be installed in low profile PCs using the bundled low profile bracket. The two ports can be configured as individual ports, as RAID 1, 0, 0+1, RAID 5 or JBOD. Both controllers are also Port Multiplier compatible, thus offering potential expansion capability and new storage solutions

Product Features
  • Choice of controller with 2 internal SATA II ports or 2 eSATA ports
  • Install into both standard height or low profile system.
  • Install in PCI-Express BUS
  • Fully compliant with SATA II and SATA 1.0 standard
  • Maximum 3Gbits/sec per port
  • Support NCQ commands
  • Compatibility with Port Multiplier
  • Silicon Image chip set SiI 3132
  • Use as a non-RAID or RAID controller
    Built-in RAID 0, RAID 1, RAID 1+0, RAID5 and JBOD support
    (illustration on the left is the bundled RAID utility for Windows OS. RAID5 and JBOD requires Port Multiplier)
  • Upgradeable firmware
  • Hot swap support - drive can be removed and added without system shut down or restart *
  • eSATA connector for more secure connection, reliability and supports up to 2 meters cable length
  • Compatible with drivers for Windows 2000 , XP, and 2003 Server, Vista, Linux (2.4 kernel and higher)

Specifications

  • 48 bits LBA, support HDD partition larger than 137GB
  • Supports 1-lane 2.5Gbps PCI Express
  • Hot-plug capability
  • SATA II transfer rate of 3.0Gbps
  • Fully compliant with Serial ATA 1.0 specifications
  • Supports two independent Serial ATA channels
  • Independent Link, Transport, and data FIFO
  • Independent command fetch, scatter/gather, and command execution
  • Supports Legacy Command Queuing (LCQ)
  • Supports Native Command Queuing (NCQ)
  • Supports Non-zero offsets NCQ
  • Supports Out of order data delivery NCQ
  • Supports FIS-based switching with Port Multipliers
  • 31 Commands and Scatter/Gather Tables per Port
  • Two Pin headers on board for LED connection
  • Temperature: Operating 0 to 70 degree C.
  • Storage: -25 to 90 degree C.
  • Humidity: Operating 20% to 80%
  • Non Operating 15% to 90%
  • RAID 0, 1, 0 + 1, RAID 5 and JBOD firmware on board
    To install OS onto a single hard drive (not in a RAID set), it must be connected to the 1st port (the lowest port on the PCI bracket). The controller BIOS must be set to 'CONCATENATED'
  • Completely with drivers for Windows 2000 , XP, and 2003 Server, Vista
  • RoHS Compliant
