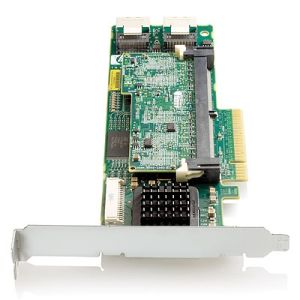

HP P410 Smart Array RAID Controller - 8xSAS/SATA (via 2-ports Mini-SAS Internal SFF-8087), 256MB Cache, Low Profile - PCI-Ex8
RAID 0,1,1+0,5,5+0

No Longer Available

Part Number:

130078

(?) Brand:

HP Web Site

Manuf No:

462862-B21
462862B21

Shipping Weight:

1 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Finance Images & Video

All stock codes associated to this product

462862B21, 462862-B21, 1006067, 883585576883

PRODUCT : HP Smart Array P410 controller
DATA COMPATIBILITY : Yes, future SAS Smart Array controllers
CONSISTENT SOFTWARE MANAGEMENT TOOLS : Yes
PCI BUS : PCIe 2.0 x8
SCSI PROTOCOL SUPPORT: 3Gb SAS(6Gb Capable)/1.5Gb SATA (3Gb Capable)
CHANNELS : 8 SAS ports
CONNECTORS (EXTERNAL/INTERNAL) : 0/2
DRIVES SUPPORTED (Max): 12
CACHE : 256MB DDR2- RAM, with available BBWC upgrade, 512MB BBWC
RAID SUPPORT : 0, 1, 1+0, 5 Optional 6 (ADG)
ONLINE SPARE SUPPORT : Yes
BBWC ENABLER : Optional
I/O SLOT TYPE: PCI-Express
COMPATIBILITY : HP ProLiant DL160 G6 Server series
HP ProLiant DL180 G6 Server series
HP ProLiant DL185 G5 Server series
HP ProLiant DL370 G6 Server series
HP ProLiant DL380 G6 Server series
HP ProLiant DL385 G5p Server series
HP ProLiant DL585 G5 Server series
* Instant Upgrades to other SAS Smart Array Controllers

Model comparison

	SA-P212	SA-P410	SA-P411	SA-P812
Data Compatibility	Yes, future SAS Smart Array controllers	Yes, future SAS Smart Array controllers	Yes, future SAS Smart Array controllers	Yes, future SAS Smart Array controllers
Instant Upgrades to other Smart Array Controllers	Yes, SAS Smart Array controllers	Yes, SAS Smart Array controllers	Yes, SAS Smart Array controllers	Yes, SAS Smart Array controllers
Consistent Software Management Tools	Yes	Yes	Yes	Yes
PCI Bus	PCIe 2.0 x8	PCIe 2.0 x8	PCIe 2.0 x8	PCIe 2.0 x8
Storage Protocol Support	6Gb/s SAS & 3Gb/s SATA	6Gb/s SAS & 3Gb/s SATA	6Gb/s SAS & 3Gb/s SATA	6Gb/s SAS & 3Gb/s SATA
Channels	8 SAS ports	8 SAS ports	8 SAS ports	24 SAS ports
Connectors (External/Internal)	1/1	0/2	2/0	4/2
Drives Supported (Max)	54	24	100	108
Cache	0MB RAM; Available 256MB & BBWC upgrade	256MB DDR2 RAM; Available BBWC upgrade, 512MB BBWC & 512MB/1G FBWC	256MB DDR2 RAM; Available BBWC upgrade, 512MB BBWC & 512MB/1G FBWC	1G FBWC
RAID Support	0,1, 1+0, 5, 5+0 standard; RAID 6 (ADG), 6+0 optional	0,1, 1+0, 5, 5+0 standard; RAID 6 (ADG), 6+0 optional	0,1, 1+0, 5, 5+0 standard; RAID 6 (ADG), 6+0 optional	0,1, 1+0, 5, 5+0, 6 (ADG), 6+0 standard
Online Spare Support	Yes	Yes	Yes	Yes
