Introduction

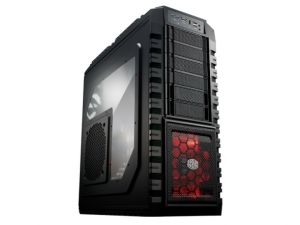

The much anticipated HAF X arrives as the flagship of the popular HAF (High Air Flow) series. Designed for performance systems, this chassis is able to house today's latest and hottest CPUs, motherboards, graphics cards and is even compatible with USB 3.0 devices. With specialized support and cooling for graphic cards, massive airflow with the help of up to four gigantic fans and easy access to installed components, this as close as it gets to a system builder's 'dream case'.
Features
- SATA Dock for easy installation without the need of removing side panel
- USB 3.0 on front I/O panel
- Air duct to cool the latest graphic cards
- Up to 1 x 230 mm red LED fan and 3 x 200 mm fans
- 9 slots support triple VGA cards
- Adjustable VGA card holder to support heavier GPU cards
- Power supply partition to conceal cables
- Advanced cable management with rubber grommets
- Spacious interior for larger component parts
- Rugged black coated interior

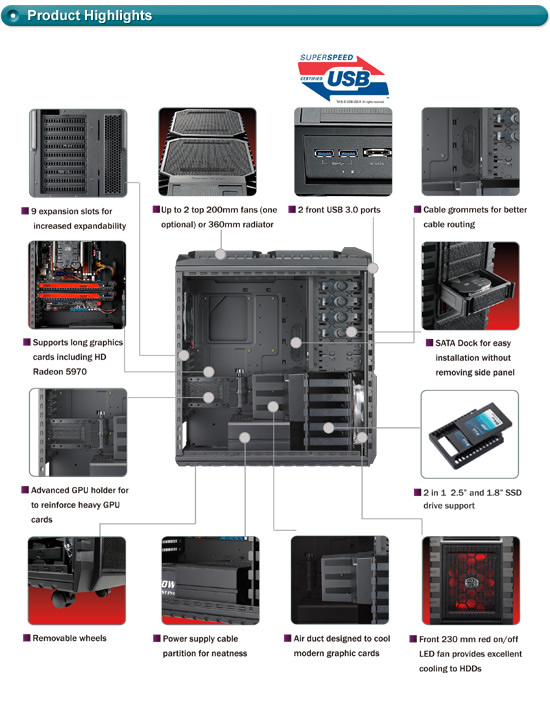

Product Highlights
Specifications
| Color |
Black |
| |
| Material |
Steel + Plastic |
| |
| Dimension (W / H / D) |
230 x 550 x 590 mm / 9.1 x 21.7 x 23.2 inch |
| |
| Weight |
Net Weight:14.35 kg / 31.6 lbs ; Gross Weight:16.08 kg / 35.5 lbs |
| |
| M/B Type |
M-ATX / ATX / E-ATX / GIGABYTE XL-ATI |
| |
| 5.25" Drive Bay |
6 (2 converted SATA HDD drive bay available) |
| |
| 3.5" Drive Bay |
5 Hidden |
| |
| SATA HDD Drive Bay / 2.5 Drive Bay |
2 (converted from 5.25 drive bays) |
| |
| I/O Panel |
USB 3.0 x 2,USB 2.0 x 2, IEEE 1394a x 1, e-SATA x 1, Audio x 1, Mic x 1, |
| |
| Expansion Slots |
9 |
| |

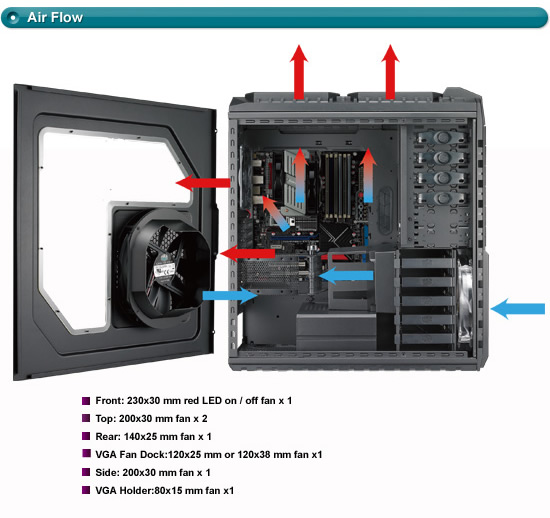

| Cooling System |
Front:230 x 30 mm red LED fan on/off x 1
Top:200 x 30mm fans x 2 (one optional)
Side:200 x 30mm fan x 1
Rear:140 x 25mm fan x 1
VGA Fan Duct:120 x 25 mm or 120 x 38 mm fan x 1(optional)
VGA Holder:80 x 15 mm fan x 1(optional) |
| |
| Power Supply |
Bottom / Standard ATX PS2(optional) |
| |
