All stock codes associated to this product
944551019, 1449195, 886111054893
Kyman GUN
SAP Certified - Integration with SAP Application
GS1 databar compatible (To know more)
Route PAD System for Zebra RW420 Printer
Laser scanner with "Green spot", providing good read feedback (Datalogic patent)
Extra Long Range Laser
Microsoft Windows CE 5.0 and Microsoft Windows Mobile 6.0 Operating Systems
Bluetooth wireless technology, Wi-Fi 802.11 b/g (CCX V4)
1.8 m (6 ft) drop resistance
IP64 protection class
Large high visibility color graphic display with touch screen
Voice and VoIP support
RUGGED
The Kyman-GUN rugged mobile computer is designed to survive demanding environments and provide ergonomics that reduce operator fatigue. A sturdy outer case with overmold protection ensures reliability and robustness.
Kyman-GUN resists harsh environments, multiple drops, strong shocks, repetitive tumbles and freezing temperatures.
FLEXIBLE

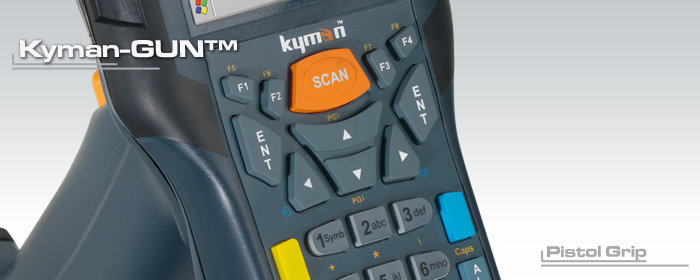

Kyman-GUN is available in hand-held and pistol grip models. Its detachable handle provides maximum flexibility switch between hand-held and pistol grip operations, without affecting Kyman-GUN's intrinsic robustness.
VERSATILE
Kyman-GUN offers a wide range of Data Capture options including bar code and Voice Recognition. Standard laser, high performance laser and extra long range laser options provide data capture from near contact to several meters away. A vast variety of symbologies enable Kyman-GUN to meet every market and application objective. Kyman-GUN simultaneously supports WLAN and Personal Area Networks. 802.11 b/g CCX V4 certified offers all the advantages of the Cisco WLAN infrastructure and the latest in security protocols, WPA and WPA2.
STANDARD
Kyman-GUN maximizes operations for the enterprise using the fastest Intel X Scale processor available. The latest Windows CE operating system increases the return on investment through seamless integration and ease of deployment.
The Kyman-GUN rugged mobile computer is designed to survive demanding environments and provide ergonomics that reduce operator fatigue. A sturdy outer case with overmold protection ensures reliability and robustness. Kyman-GUN resists harsh environments, multiple drops, strong shocks, repetitive tumbles and freezing temperatures.
Faster and More Secure International Shipments with Datalogic Mobile
Considerable time savings with mobile computers
Tottenham Hotspur sign 2 Italian hot shots
Luis Simoes assures the best service thanks to Datalogic Mobile Solutions
Datalogics Mobile Computers Support Graupners Warehouse Reorganisation
Specifications
> PHYSICAL CHARACTERISTICS
DIMENSIONS
238 x 91 x 55 mm (9.3 x 3.5 x 2.2 in) without handle
238 x 91 x 162 mm (9.3 x 3.5 x 6.3 in) with handle
WEIGHT
550 - 630 g (19.3 - 22.1 oz) without handle incl. battery
660 - 690 g (23.1 x 24.2 oz) with handle incl.battery
DISPLAY
64K color TFT LCD with 320 x 240 pixel resolution, with LED backlight and touchscreen, 89mm (3.5 in) diagonal
KEYBOARD
53 full alphanumeric or 36 numeric keys with navigation keys, backlit
OPERATING TEMPERATURE
-20 º to +50 ºC (-4 º to 122 ºF)
STORAGE TEMPERATURE
-20 ºC +70 ºC (-4 º to 158 ºF)
DROP RESISTANCE
Withstands drops from 1.8 m (6 ft) onto
concrete
ENVIRONMENTAL SEALING
IP64 standard for water and dust resistance
> SYSTEM
OPERATING SYSTEM
Microsoft Windows Mobile 6.0 / Microsoft
Windows CE 5.0
MICROPROCESSOR Intel® XScale PXA270 @ 520 MHz
SYSTEM RAM MEMORY 128 MB
SYSTEM FLASH MEMORY 128 MB (including Backup directory for user
data & permanent program storage)
EXPANSION SLOTS
User-accessible mini-SD slot
POWER SUPPLY Removable battery pack with rechargeable
Li-Ion batteries; 2 cell Li-Ion 2,200 mAh @ 7.4
V (16.3 Watt-hrs); Local connection for fast
battery charging
> COMMUNICATIONS
INTERFACES Electrical: 3-pin RS232 up to 115.2 Kbps
USB: integrated high speed USB (USB 1.1)
Ethernet via multiple cradle desk
LOCAL AREA NETWORK IEEE 802.11b/g CCX V4 Certified
Frequency range: Country dependent, typically
2.4 - 2.5 GHz
PERSONAL AREA NETWORK IEEE 802.15 Bluetooth® wireless technology
(optional) Integrated module
> READING OPTIONS (xxx-9xx/xxx-1xx/xxx-6xx Laser models)
SCANNING RATE 105 ± 12 scan/s (xxx-9xx); 35 ± 5 scans/s
(xxx-1xx); 40 ± 6 scan/s (xxx-6xx)
MAX. RESOLUTION 0.10 mm/4 mils (xxx-9xx); 0.13 mm/5mils
(xxx-1xx); 0.20 mm/7.5 mils (xxx-6xx)
DEPTH OF FIELD 5 to 64 cm (1.97 to 25.2 in), depending on
bar code density (xxx-9xx); 5 to 74 cm (1.97
to 29.1 in), depending on bar code density
(xxx-1xx); 15 to 380 cm (5.9 to 149.6 in),
depending on bar code density (xxx-6xx)
LASER CLASSIFICATION VLD - Class 2/II EN 60825-1/CDHR
> SOFTWARE
DEVELOPMENT
Windows SDK™
DL Mobility Developer Assistant™
MCL-Collection™
CONFIGURATION & MAINTENANCE
Wavelink® Avalanche™
Datalogic Firmware Utility
Datalogic Desktop Utility
Datalogic Configuration Utility
TERMINAL EMULATION
Wavelink® Terminal Emulation™
UTILITIES
Wavelink® Remote Control
Wavelink® TermProxy
Wavelink® Communicator
Wavelink® SpeakEasy
Vo-CE™
