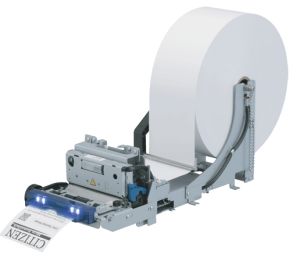

Citizen PPU231P Thermal Kiosk Printer - (Parallel Compatiable)

IMG 1 of 1
No Longer Available
Part Number:
15993
(?) Brand:
Citizen
Manuf No:
PPU231P
Shipping Weight:
1 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
PPU231P
CITIZEN PMU-2300III Thermal Kiosk printer, fast printing, multiple paper widths, LED lighted bezel and Presenter options, Easy Recovery from Paper jam and Head cleaning.

Features
  • Small foot print compact design
  • 150mm/sec high-speed printing
  • Easy recovery from paper jam and easy head cleaning owing to removable head design
  • Serial, Parallel, USB interfaces available
  • 203mm diameter roll paper holder PHU-203T available (option)
  • Wide variety of paper holding positions (with the optional paper holder PHU-102S)
  • Black mark sensor available (option)
  • Barcode and 2D barcode printing
  • Wider operation temperature range -10C~60C
  • Wider storage temperature range -25C~65C

Specifications

PMU-2300III



Printing Method

Line Thermal Printing

Printing Width

80mm/640 Dots (83mm Paper), 72mm/576 Dots (80mm Paper), 60mm/480 Dots (67mm Paper), 54mm/432 Dots (58mm Paper)

Dot Pitch

8 Dots/mm, 203dpi

Printing Speed

150 mm/sec (max.), 35.4 lines/sec

Number of Columns

80mm Paper: 48 columns (Font A), 64 Columns (Font B), 72 Columns (Font C)

Font Size

1.50mm x 3.00mm (Font A: 12 x 24 dots)

1.13mm x 3.00mm (Font B: 9 x 24 dots)

1.00mm x 2.00mm (Font C: 8 x 16 dots)

Fonts

Alphanumeric, International characters

Barcode type

UPC-A/E, JAN (EAN) 13/8, ITF, CODE39, CODE128, CODABAR, Code 93

Logo Registration/Print

Capable of registering user defined characters and logos into flash memory, 256 K Bytes

Line Spacing

4.23mm (1/6") Selectable by command set (Min. 1/203 inch).

Printing Paper

Thermal Roll Paper width: 58/60/80 mm

External diameter: 102mm max. (with paper holder unit)

Internal diameter: 25.4mm

Paper thickness: 65 to 150 m

Recommended paper: TF-50KS-E-2D, TF-62KS-E (Nippon Paper Industries)

Interface

Parallel

IEEE1284 compliant

Serial

RS-232C

USB



Input Buffer

4K or 45 Bytes (Dipswitch selectable)

Sensors

Paper near end sensor

Paper end sensor

Black mark sensor (option)

Power Source Voltage

24V 7%

Current Consumption

1.9A (peak 6A)

Weight

1.1.kg

External Dimensions

118 x 179 x 96mm

Operating Temperature/Humidity

-20 to 60C, 35 to 85% RH (No condensation)

Storage Temperature/Humidity

-25 to 65 C, 10 to 90% RH (No condensation)

Reliability

Head:

100,000,000 pulses or 100 km

Auto Cutter:

1,000,000 cuts

Safety Standards

UL, C-UL, FCC class A, TUV-CE marking
