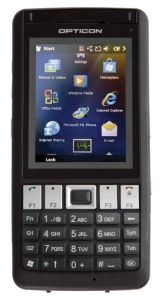

Opticon H21N Portable Terminal with Numeric Keyboard
  • 2D Barcode Scanner, 2.8"Touchscreen LCD, WiFi, 3G, BT, GPS, MicroSD, 3.2MP-CAM, Windows Mobile 6.5
  • Includes Leather Case, Hand Strap, Stylus

IMG 1 of 1
Our Price:
$785.40
RRP:
$1,729.00
You Save:
$943.60
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
164399
(?) Brand:
Opticon
Manuf No:
OPH21N-2D
OPH21N2D
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
OPH21N2D, OPH21N-2D

The H21, a consumer-grade design, is a mobile terminal with Windows Mobile 6.5, a barcode reader, color camera and 3G communication. The H21 withstands drops up to 1.5 meter onto concrete and is sealed up to IP 64 standards. Apart from Windows Mobile 6.5, the H21 is standard equipped with assisted GPS, 3G and 3.5G communication, Bluetooth and WiFi. The barcode reader provides the versatility to read all standard 1D barcode and 2D symbologies.


Features
  • Windows Mobile Portable Data Terminal
  •  2D Imager
  • Can withstand multiple drops to concrete from 1.5 m
  • IP-64 Rating
  • 2.8 inch Colour LCD with Touch screen
  • Windows Mobile 6.5
  • GPRS/EDGE (Quad Band 850/900/1800/1900), 3G UMTS (WCDMA band 1,II,V,VI), 3.5G UMTS (HSDPA 7.2M / HSUPA 5.76 M) GPS: Integrated AGPS
  • Wifi IEEE 802.11b/g
  • Bluetooth Ver. 2.1 + EDR Class 2
  • Colour Camera 3.2 Megapixels

Model

H21 Imager

Processor

Qualcomm MSM 7225 528Mhz

Operating System

Microsoft Windows Mobile 6.5

Software

Excel Mobile, Powerpoint Mobile, Word Mobile, Internet Explorer, ActiveSync, Internet sharing, Pocket MSN, Phone application, Opticon scanner application, Accessories

Flash Memory

256 MB flash ROM

RAM Memory

256 MB SRAM

Expansion

User accessible microSD + HC

Scan engine

CMOS Area Sensor, 900 x 512 Pixels, Grey Scale

Light Source

Aiming Laser Diode, Illumination LED's

Scan rate

up to 80 Frames/sec

Reading Pitch Angle

-50 to 0 to +50

Reading Skew Angle

-50 to 0 to +50

Reading Tilt Angle

360

Minimum Resolution

PCS 0.9: 0.127mm/5mil

Reading Distance

Code 39

45 - 1000 mm / 1.77 - 39.37 in (0.127 mm/5mil)

Symbologies support

Barcode (1D): JAN/UPC/EAN incl. add on, Codabar/ NW-7, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of 5, ISBN-ISMN-ISSN, Matrix 2of 5, MSI/Plessey,S-Code, Telepen, Tri-Optic, UK/Plessey

Postal code: Chinese Post, Korean Postal Authority code

2D code: Composite Codes, MicroPDF417, PDF417 Aztec Code, Aztec Runes, Codablock F, Datamatrix (ECC200/ECO-140), Maxicode (mode 2~5), Micro QR Code, QR Code

Keyboard

Navigation Key (Scroll & Select), function Keys, Control Keys, 1 Power Key, 2 hot Keys, 2 Phone Keys, 1 Camera Key, Reset Key, Volume Key, 2 Scan keys

and 12 Alpha/Numeric keys or QWERTY Keyboard

Display

Graphic Transflective TFT LCD with touch panel, 16-bit colour with adjustable backlight

Size: 2.8, 480 x 640 pixels

Mode: Portrait / Landscape

Camera

Colour 3.2 Megapixels, auto-focus, LED Flash

Battery

Rechargeable battery: Lithium-Ion Polymer 3.7V 3060mAh

Lithium rechargeable

Hot swapable (Backup Battery 6 mAh)

Operating Temperature

-10C to 50C

Humidity

up to 90% relative humidity, non-condensing

Mechanical Shock

Functional after 1.5 m (4) drop onto concrete

Sealing

IP-64 rating

H x W x D

135 x 67 x 22 mm

Weight

235 g (including battery)

Regulatory & Safety

Product compliance: CE, FCC, VCCI, PTCRB, GCF, RoHS, JIS-C-6802 Class 2, IEC 60825-1 Class 2, FDA CDRH Class II


No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
