All stock codes associated to this product
VN300M1W2N
Chaser MK-I
VN300M1W2N
Features
- Breath Lighting effect
- USB3.0 superspeed
- Top-mounted HDD hot swap Docking Station
- VGA TripleMax 33cm
- CableClear cable management
- Liquid cooling ready
- Innovative 5.25 & 3.5 tool-free design
- Combat Headset Holder
- Heightened footstand enhances intake airflow
Unique Design

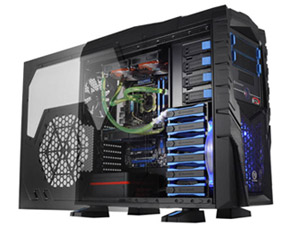

Liquid Cooling Ready
Top HDD Docking Station
Top HDD Docking Station
USB3.0 SuperSpeed (internal header)

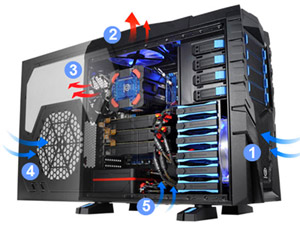

The Cooling System
HDD Air Cooling System
1. Front (intake) :
200 x 200 x 30 mm Colorshift fan x 1 (600~800rpm, 13~15 dBA) or
120 x 120 x 25 mm x 2 (optional)
CPU Air Cooling System
2. Top (exhaust) :
200 x 200 x 30 mm Colorshift fan x 1 (600~800rpm,13~15 dBA);
200 x 200 x 30 mm x 1 (optional) or
140 x 140 x 25 mm x 2 (optional) or
120 x 120 x 25 mm x 2 (optional)
3. Rear (exhaust) :
140 x 140 x 25 mm TurboFan, 1000rpm, 16dBA or
120 x 120 x 25 mm x 1 (optional)
VGA Air Cooling System
4. Side (intake) :
200 x 200 x 30 mm x 1 (optional)
5. Bottom (intake) :
120 x 120 x 25 mm x 1 (optional)
Liquid Cooling Application (optional)
ColorShift Fan

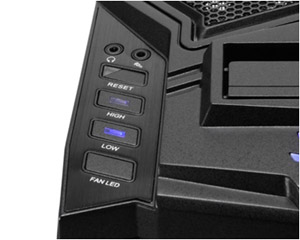

Fan Speed & Light Control Knob
fan speed & color mode controller
Specifications
| Model |
Chaser MK-I |
| P/N |
VN300M1W2N
|
| Case Type |
Full Tower |
| Side Panel |
Transparent Window
|
| Net Weight |
11.6 kg / 25.6 lbs |
| Dimension (H x W x D) |
567.9 x 237.0 x 581.6 mm (22.4 x 9.3 x 22.9 inch)
|
| Cooling System |
Front (Intake) :
200 x 200 x 30 mm Colorshift fan x 1 (600~800rpm,13~15dBA) or
120 x 120 x 25 mm x 2 (optional)
Rear (Exhaust) :
140 x 140 x 25 mm TurboFan, 1000rpm, 16dBA or
120 x 120 x 25 mm x 1 (optional)
Top (Exhaust) :
200 x 200 x 30 mm Colorshift fan x 1 (600~800rpm, 13~15dBA);
200 x 200 x 30 mm x 1 (optional) or
140 x 140 x 25 mm x 2 (optional) or
120 x 120 x 25 mm x 2 (optional)
Bottom (Intake) :
120 x 120 x 25 mm x 1 (optional)
Side (Intake) :
200 x 200 x 30 mm x 1 (optional)
|
| Drive Bays |
- Accessbile : 4 x 5.25, 1 x 3.5 (Converted from one 5.25 drive bay)
- Hidden: 6 x 3.5or 6 x 2.5
- HDD Docking: 1 x 3.5or 1 x 2.5 |
| Material |
SECC
|
| Color |
Exterior & Interior : Black
|
| Expansion Slots |
8 |
| Motherboards |
9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX)
|
| I/O Ports |
USB 3.0 x 2, USB 2.0 x 2, eSATA connector x 1,
MIC & Speaker (support AC97 & HD Audio)
|
| PSU |
Standard ATX PS2 (optional)
|
| Others |
CPU cooler height limitation: 180mm
VGA length limitation: 330mm |
