Maximises Power, Efficiency and Space at the Office.

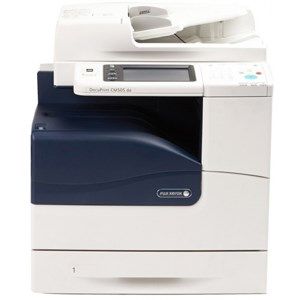

DocuPrint CM505 da Colour Multifunction Device
The DocuPrint CM505 is Fuji Xerox Printers first true enterprise class A4 copier based Multifunction Device, bringing high-end enterprise level technology, functionality and innovation to the mid-market, small and medium business (SMB) level.
With advanced features and high-end multifunction device capabilities, it enables workgroups to consolidate existing print fleets and achieve the highest levels of productivity. In fact, the DocuPrint CM505 is so powerful and versatile, one single unit effectively performs the job of several lower-end multifunction devices, faster and more reliably. Print, copy, scan, email and fax (optional) with absolute ease with the DocuPrint CM505.
Specifications
| Print Speed |
Simplex: 45ppm (Mono/Colour) Duplex: 36ppm (Mono/Colour) |
| First Page Out |
Up to 9 sec for Mono and 9.5 sec for Colour |
| Memory Standard/Maximum |
2GB |
| Print Language or PDL (Page Description Language) |
PCL6, PCL5, TIFF, FX PDF, XPS, Adobe Postscript 3, HP GL, HP GL2 |
| Duty Cycle |
110,000 pages / month |
| Print Resolution (dpi) |
1200 x 1200dpi, 600 x 600dpi (Standard) |
| Image Processing |
Power PC 1GHz |
| Auto 2-sided Printing (Duplex) |
Duplex printing standard |
| Media Size |
Paper Tray 1-4: A4, A5, B5 JIS, Legal, Folio, Letter, Executive, Custom Paper (Width: 98x216mm Length: 190x356mm) Paper Tray 5 (MSI): Custom Paper (width 76x216mm, Length: 127x356mm) |
| Paper Input Capability |
Standard (700 sheets): Standard tray (550 sheets) + Bypass Tray (150 sheets) Max (2,350 sheets): Standard tray (700 sheets) + 1 Tray Module (550 sheets) + 2 Tray Module (1,100 sheets) |
| Paper Output Capability |
500 sheets |
| Connectivity |
Ethernet 1000 BASE-T/100 BASE TX/10 BASE-T, USB 2.0 |
| Printer Features |
All-in-one functionality gives you the power to print, copy, scan, email and fax (optional) in one compact unit. And with the Fuji Xerox multi-tasking network controller, all these tasks can even be performed simultaneously. Easily access machine functions with the large 7 inch WVGA touch screen with feature icons for easy navigation. |
| Operating |
Microsoft Windows 2000, Microsoft Windows XP, Microsoft Windows Vista, Microsoft Windows 7, Windows Server 2003 & 2008, Mac OS 9.2.2, x10.3.9 - 10.4.11 (except 10.4.7), x10.5/10.6 |
| Standard Warranty |
One year on-site warranty |
| Copy Resolution |
600 x 600 dpi |
| Copy Features |
Copy Speed: Simplex: 45ppm (Mono/Colour) Duplex: 36ppm (Mono/Colour) First Copy Out Time: Platen: 7.8 sec (Mono) 9.8 sec (Colour); DADF: 9.8 sec (Mono) 11.8 sec (Colour) Reduction / Enlargement: 25% - 400% Continuous Copy: 999 sheets Copy Features: 2 sided book copy; booklet creation; duplex; multi-value copy |
| Scan Resolution |
Up to 600 x 600dpi |
| Scan Feature |
Type: Colour Scanner Scan Speed: Mono: 45ppm ; Colour: 45ppm Scan Features: Scan to PC. Scan to e-mail. Scan to folder. Scan to USB*. *Optional DocuPrint CM500 Series Upgrade Kit is required. |
| Fax Features |
Document Size: Max: 215.9 x 355.6mm Fax Resolution: Up to 600 x 600dpi Transmission Speed/Time: Maximum: G3 - 3 sec Fax Features: Direct Fax, Internet Fax |
