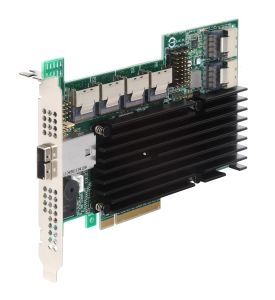

Intel RS2SG244 RAID Controller - 24x Internal Port, 4x External Ports SAS/SATA, RAID 0, 1, 5, 6, 10, 50, Up to 240 Devices - PCI-Ex8

IMG 1 of 1
No Longer Available
Part Number:
177955
(?) Brand:
Intel Web Site
Manuf No:
RS2SG244
Shipping Weight:
0.8 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
RS2SG244
Key features
  • LSI* SAS2108 ROC controller providing SAS 2.0 compliance including 6Gb/s data transfer
  • Embedded 512 MB 800 MHz cache (ECC DDR2 memory) to efficiently store data in transition
  • 24 Internal Ports with six SFF8087 (Mini-SAS) connectors
  • Four external ports with a single SFF8088 connector
  • Speaker to deliver audible alerts
  • x8 PCI Express* Generation 2 interface for fast communication with the server board
  • Six internal cables with SFF8087 connectors on each end
  • Optional: Intel Smart Battery AXXRSBBU7 for up to 72 hours of cache data retention
Intel® RAID Controller RS2SG244

Overview

The Intel RAID Controller RS2SG244, with twenty-four internal, and four external ports, supports both internal drive storage and external JBOD expansion for up to 240 SATA or SAS drives. With a large number of internal ports, the Intel RAID Controller RS2SG244 connects up to 24 drives inside the server via direct connection or passive backplane. Using the external SAS ports, multiple JBODs can be connected to a server, providing a scalable and affordable solution for growing storage requirements.



Features and benefits

Exceptional data protection Supports data redundancy using SAS or SATA hard disk drives through mirroring, parity, and double parity (RAID levels 1, 5, and 6) plus striping capability for spans (RAID levels 10, 50, and 60).
Excellent performance, Highly scalable LSI* SAS2108 ROC technology, x8 PCI Express* Generation 2 host interface and 800 MHz cache enhances the performance of mainstream applications. Capable of connecting up to 28 drives directly or up to 240 using SAS expanders.
Easy to use management utility The Intel RAID Web Console provides the essential software interface to efficiently manage Intel RAID products, whether deployed in an enterprise or small business. Intel also offers a collection of applications and tools including a pre-boot setup utility and a full spectrum of online Intel RAID management utilities.
Outstanding availability Delivers proactive drive monitoring and automatic error correction. An optional battery backup maintains the integrity of data in transit to drives in the event of a power interruption.
Support for premium feature upgrades Includes a connector for optional hardware-based keys that easily plugs in to unlock advanced software algorithms designed to improve performance and enhanced data protection. For instance the Intel Solid State Drive (Intel SSD) Cache with FastPath* I/O upgrade allows for using one or more Intel SSD as enhanced cache for the Intel RAID Controller which can significantly improve performance of read-intensive applications, such as file, Web and online transaction processing servers.

Related products

Processors
  • All Intel Xeon processors
Server boards
  • All Intel Server Boards


Specification Sheets / Installation guides / Associated files

Warranty: 3-year Manufact.

Full manufacturers warranty details are available at the manufacturers (Intel) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
