All stock codes associated to this product
SSTFT02SWUSB3, SST-FT02S-W-USB3
FT02S-W-USB3
Introduction
Combining two of SilverStone's most distinctive computer chassis breakthroughs - the unibody construction of the Temjin TJ07, introduced in 2005, and the 90-degrees rotated motherboard mount of the RAVEN RV01 from 2008 - the Fortress FT02 advances both chassis construction and thermodynamics in a dynamic, streamlined design. With the Fortress FT02, SilverStone engineers have combined the rigidity of unibody construction with the unparalleled cooling layout of the RAVEN chassis, adding a hot-swappable hard drive cage and an acoustically padded interior for maximum versatility. The result is increased structural strength, increased storage capacity, and whisper-quiet operation. Available in black and silver colors, its elegant outer shell is perfectly accentuated by the U-shaped unibody aluminum frame that not only provides unique styling, but also functional purpose. The bottom gap from the frame to the main body actually serves as the main air intake area for its three massive 180mm fans, making it even suitable for use on carpeted surfaces. For professionals and enthusiasts looking to build a silent workstation or gaming machine with maximum performance, there is no better than the SilverStone Fortress FT02.
Special Features
- Revolutionary 90 degree motherboard mounting from RAVEN RV01
- Innovative 4.5mm aluminum unibody frame from Temjin TJ07
- Three 180mm fans for unprecedented positive pressure and stack effect cooling
- Supports liquid cooling radiator mounting
- Motherboard back plate opening behind CPU area for quick cooler assembly
- Supports 11 wide ATX motherboard
- Foam padded interior for advanced noise absorption
- Easy access power/reset button with hidden front I/O ports
- Top motherboard I/O port design with support for ClearCMOS
- Top mounted 120mm exhaust fan
- Support for 2.5” HDD or SSD at unique location
- Large motherboard tray cut-out for CPU cooler backplates
- Five tool-less button design for 5.25” drive bays
- Foam padded interior for advanced noise absorption
- Hot-swappable drive cage support (one CP05 adapter included)
- Three 180mm fans in alignment for unprecedented cooling performance
- Automotive-caliber 4.5mm aluminum unibody frame
- Large air cap created by bottom panel usable for carpeted surface
- Positive pressure design with filter on all intake vents
Specifications
|
Model No.
|
SST-FT02B (black) |
| SST-FT02S (silver) |
| SST-FT02B-W (black + window) |
| SST-FT02S-W (silver + window) |
|
Material
|
4.5mm aluminum unibody frame, 0.8mm steel body |
|
Motherboard
|
SSI CEB, ATX (maximum 12 x 11), Micro ATX |
|
Multimedia
|
-- |
|
Drive Bay
|
External |
5.25" x 5 |
| -- |
| Internal |
3.5" x 5 , 2.5 x1 |
|
Cooling System
|
Front |
-- |
| Rear |
-- |
| Side |
-- |
| Top |
1 x 120mm exhaust, 1200rpm, 19dBA |
| Bottom |
3 x 180mm intake fan 700/1000rpm, 18/27dBA |
| Internal |
-- |
|
Expansion Slot
|
7 |
|
Front I/O Port
|
USB3.0 x 2
Audio x 1
MIC x 1 |
|
Power Supply
|
1 x Optional standard PS2 (ATX) |
|
Operating system support
|
-- |
|
Expansion Card
|
Support 12 or 12.2 (with fan grille removed) |
|
Limitation of CPU cooler
|
165mm |
|
Limitation of PSU
|
Unlimited |
|
Net Weight
|
15kg |
|

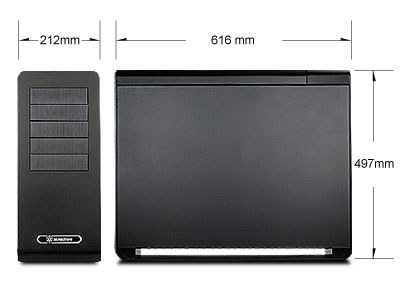

Dimension
|
212mm (W) x 497mm (H) x 616mm (D) |
|
Extra
|
One CP05 included for single hot-swappable SATA hard drive, additional CP05 can be purchased separately |
