Prima is a simple, durable and cost effective system to mount single or multiple LCD monitors above the desk. Save desk space, increase ergonomic flexibility and achieve easy monitor adjustment.
The Prima system is particularly suitable where expansion from a single desktop monitor to a dual or multiple monitor configuration is required. Prima's modular design allows upgrade from a single to multiple monitors in minutes, with minimal cost and disruption. Various configurations are available: allowing up to six monitors to be supported on the one sturdy central steel pole mount.
A screw-on desk clamp or a through-desk grommet clamp are available; the cost is the same for either of these options.
The standard pole height is 460 mm however for increased vertical adjustability, or for future expansion a 750 mm pole is also available.
The standard extension arm length is 215 mm, up to three extension arms can be added for each monitor giving a total reach of 645 mm. Adding more than one extension arm allows the arms to be folded back on themselves giving a wider range of adjustability.
Swivel extension arms adjust vertically up and down the pole allowing screens to be positioned as desired. Screens rotate 360 degrees at up to three joints, while the monitor tilter mechanism offers over 270 degrees of vertical screen tilt.

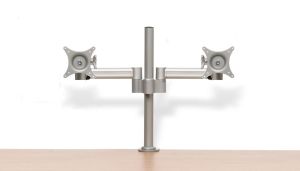

The standard Prima dual horizontal LCD monitor pole system comes complete with everything you need to mount two LCD screens side by side included in the price:
- Desk clamp (Grommet clamp optional)
- 460 mm pole
- 2 x 215 mm extension arms (see "related items" to add more, upto 3 per monitor)
- 1 x multiple LCD pole connector (for side-by-side configuration)
- 2 x LCD VESA brackets and tilters
|
