Convert as many as eight SATA connections into two Mini SAS connection
The Addonics family of SATA - external mini SAS converters make implementing the reliable external mini SAS cabling between system and external SATA storage easy and simple. Consists of a system version (for the host) and an enclosure version (for the external storage device), this family of connector bridges enable connecting up to four SATA hard drives from an external storage to any system via a single cable over a distance up to 3 meters with minimal signal degradation.

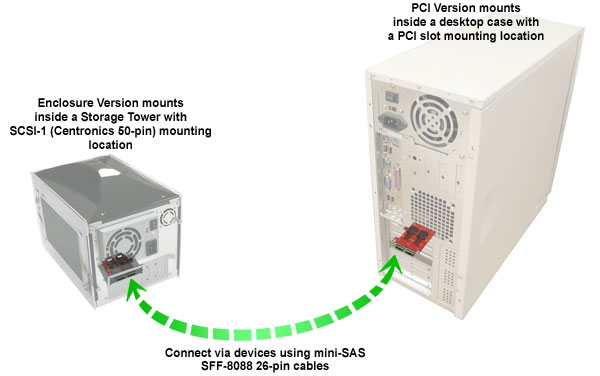

The system version easily adds two external mini SAS connectors (SFF-8088) to any desktop system, server or equipment via a PCI mounting bracket. With this converter, up to eight internal SATA/SATA II/SATA III ports can be set up for external SATA connection via two quick release external mini SAS cables.
The enclosure version is designed to mount easily into Addonics family of Storage Towers, Storage Rack or any storage enclosure with the standard SCSI - I (Centronic 50) connector opening. This enclosure version converts the SATA connection from eight SATA drives into two external mini SAS connector (SFF-8088).

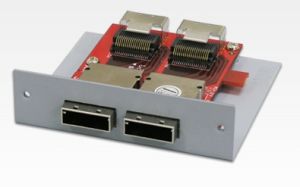

Enclosure version (model: AD2EMSRM)
- Convert two Internal Mini SAS (SFF-8087) connectors into two External Mini SAS (SFF-8088) ports externally
- Supports up to eight SAS or SATA hard drives through two External Mini SAS (SFF-8088) cables
- Mounts inside any Addonics Storage Tower or Storage Rack
- Fits into Addonics family of Storage Tower, Storage Rack or any multi-bay drive enclosures with the standard SCSI-I (centronic 50-pin) opening
- Supports High Speed Transfer rate of 6Gbps
|
 |
Dual Mini SAS converter Connection Configuration

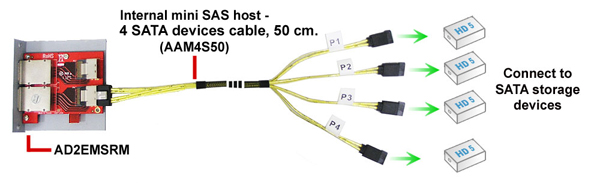

Diagram to illustrate how to connect hard drive to external mini SAS connector using the internal mini SAS to 4 SATA device connection cable ( cable model : AAM4S50)

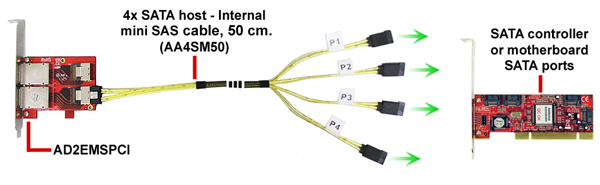

Diagram to illustrate how to connect 4 internal SATA host ports to external mini SAS connector using the internal mini SAS to 4 SATA host ports connection cable ( cable model : AA4SM50)

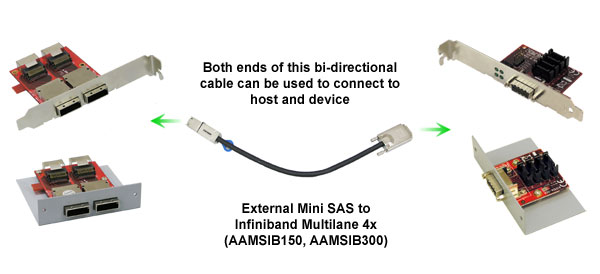

Connecting cables to convert External Mini SAS (SFF-8088) to Multilane connector (SFF-8470)
(model: AAMSIB150 (150 cm), AAMSIB300 (300 cm) )
- Supports up to eight SAS or SATA I, SATA II, SATA III hard drives
- External Dual mini-SAS SFF-8088 26pin sockets connection to dual SFF-8087 connectors
- Fully compliant with SFF-8088 & SFF-8087 Specification
- RoHS Compliant
- Dimension:
|
Model
|
PCB (W x L x H)
|
mounting bracket
|
| AD2EMSPCI |
56 x 75 x 11 mm
(2.2 x 2.95 x .43 in.)
|
Standard height or low profile PCI mounting bracket |
| AD2EMSRM |
56 x 75 x 11 mm
(2.2 x 2.95 x .43 in.)
|
84(W) x 79(D) 23(H) mm
( 3.30 x 2.36 x 0.91 in) |
- 1 year warranty
All specifications are subject to change without notice
