ATEN Altusen KH2516A: 2-console 16-port Cat 5 High-Density KVM Switch

Features:

  • Two KVM consoles independently and simultaneously control up to 16 directly connected computers
  • By daisy chaining up to 31 additional KH2516A switches, as many as 512 computers can be controlled from the original KVM console
  • Console conversion any type of KVM console can control any type of computer; mixed combinations (PS/2&USB)
  • supported on both the KVM console and computer sides
  • Superior Video Quality- Supports the video resolutions up to 1600x1200@60Hz for up to 40 meters, and 1280x1024@75 Hz for up to 50 meters *With KVM Adapter Cable KA7000 series
  • Configue port access rights for users on a port - by - port basis
  • Diversified port operation mode enables flexible computer management Occupy, Exclusive and share modes
  • Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display)
  • Multiplatform support PC, Mac, Sun, and serial
  • Multiple User Accounts -Supports up to 10 user and 1 administrator accounts
  • Two-Level Password Security- Supports one administrator and ten user profiles. Strong password protection prevents unauthorized accessing to the installation
  • Auto Scan mode enables continuous monitoring of user-selected computers
  • Broadcast Mode sends commands from the console to administrator-selected computers allowing you to perform operations (such as software installation, upgrades, shutdowns, etc.), on them simultaneously
  • Adapter ID
  • Firmware Upgradeable

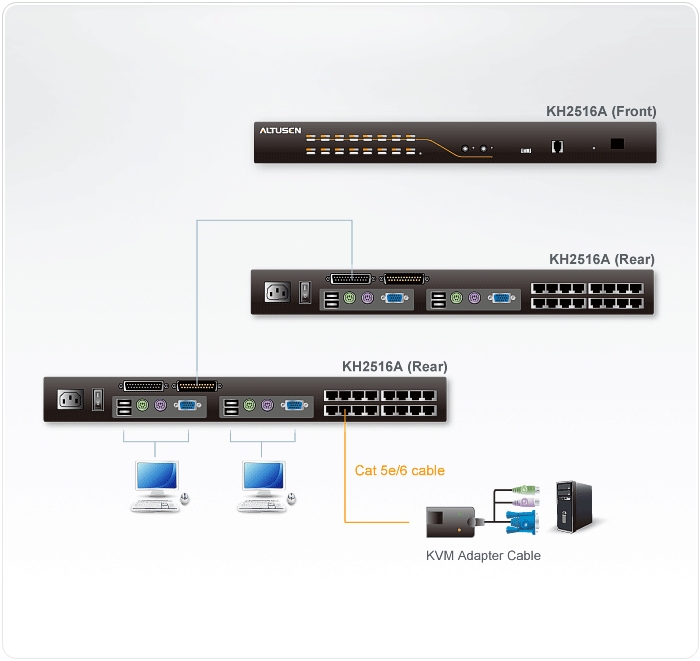

KH2516A Diagram

Specifications:

Computer
Connections
Direct 16
Max. 512(via Daisy Chain)
Port Selection OSD (On Screen Display);
Hotkeys, Pushbutton Switches
Connectors Console Ports Keyboard 2 x 6-pin Mini-DIN Female (Purple);
2 x USB Type A Female
Video 2 x HDB-15 Female (Blue)
Mouse 2 x 6-pin Mini-DIN Female (Green);
2 x USB Type A Female (White)
KVM Ports 16 x RJ-45 Female
Daisy
Chain
In 1 x DB-25 Female (Black)
Out 1 x DB-25 Male (Black)
F/W Upgrade 1 x RJ-11 Female
Power 1 x 3-prong AC socket
Switches Port Selection 16 x Pushbutton
Console Selection 2 x Pushbutton
Reset 1 x Semi-recessed Pushbutton
F/W Upgrade 1 x Slide
Power 1 x Rocker
LEDs Port On Line 16 (Green)
Selected 16 (Orange)
Console 2 (Orange)
Power 1 (Blue)
Station ID 1 x 7-segment LED display (Orange)
Emulation Keyboard PS/2; USB
Mouse PS/2; USB
Scan Interval 1-255 Seconds
Video 1600 x 1200 @ 60 Hz (40m);
1280 x 1024 @ 75 Hz (50m)
I/P Rating 100240 VAC; 50/60 Hz; 1A
Power Consumption 120V/7.6W; 230V/9.0W
Environment Operating Temp. 0-50C
Storage Temp. -20-60C
Humidity 0-80% RH, Non-condensing
Physical Properties Housing Metal
Weight 2.85 kg
Dimensions
( L x W x H )
43.72 x 16.36 x 4.40 cm


No additional files, specification sheets, guides or documentation found for product.

Warranty: 36 months*

Full manufacturers warranty details are available at the manufacturers web site.
