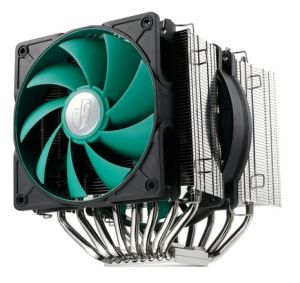

Deepcool Assassin CPU Cooler - Intel LGA2011, 1366, 1156, 1155, 776, AMD FM1, AM3+, AM3, AM2+, AM2, 140mm Fan, 120mm Fan, 1200rpm, 52.35CFM, 23.2dBA

IMG 1 of 1
No Longer Available
Part Number:
189408
(?) Brand:
Deepcool
Manuf No:
CFAN-ASSASSIN
CFANASSASSIN
Shipping Weight:
3 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
CFANASSASSIN, CFAN-ASSASSIN
Assassin

Twin Tower Heatsink

The twin tower heatsink sets provides more heat dissipation area than traditional heatsinks. More than 2 fans can be mounted on the heatsink sets to achieve extraordinary cooling performance. Shark teeth fin design not only advocates aesthetics of heatsink but also allow better air conduction between fins. The whole heatsink sets are nickel plated for appealing appearance and also for gaming spirits.

8 pieces of U-shaped Heatpipe

Eight pieces of high cooling performance copper heatpipe ensures the best cooling effect for the processor. The heatpipes are scientifically bended to achieve optimal balance with the heatsink fins.

Mirror Finished Copper Base

Eight heatpipes are firmly soldered onto the copper base to enhance the heat conductivity from the processor to the heatsink. For the quickest heat transfer, the copper base has been CNC machined to extremely flat, just like a mirror.

12+14cm De-Vibration TPE Cover Fan

De-vibration TPE cover is a soft and elastic material which can absorb the operating vibration and noise maximally. Assassin equips with one 120mm and one 140mm fans to fulfill your harsh cooling requirement at lowest noise.


Shark teeth fin design not only advocates aesthetics of heatsink but also allow better air conduction between fins.


Patented UF fan series enhance the cooling performance by providing high airflow. At the same time, de-vibration rubber absorbs operating noise for a quite using environment.


Designers strive to get the best from every aspect of ASSASSIN. This cooler may not surprise you by its appearance but it will definitely surprise you by its astonishing cooling performance.


ASSASSIN is compatible with the latest Intel Socket LGA2011. At the same time, its equipped with a full set of installation kits for all the mainstream processors in the market.

Specifications

Application For
    • Intel Socket
    • LGA2011/LGA1366/LGA1156/LGA1155/LGA775
  • Core i7/i5/i3
  • Core 2 Extreme
  • Core 2 Quad
  • Core 2 Duo
  • Pentium/Pentium G
  • Pentium D/Pentium 4
  • Celeron Dual-Core
  • Celeron/Celeron D
    • AMD Socket
    • FM1/AM3+/AM3/AM2+/AM2
  • FX X8/X6/X4
  • A8/A6/A4
  • Phenom II X6/X4/X3/X2
  • Phenom X4/X3
  • Athlon II X4/X3/X2
  • Athlon X2
  • Athlon /Athlon FX
  • Business Class
  • Sempron


Technical Spec

  • Overall Dimension (Without Fan)
  • 140X128X158mm

  • Overall Dimension (With Fan)
  • 144X154X160mm

  • Net Weight
  • 1378g (With Fan)

  • Heatpipe
  • 8X6mm Heatpipe

  • Fin Material
  • Aluminum

  • Base Material
  • Full-copper base

  • Fan Dimension
  • 140X140X25mm120X120X25mm

  • Fan Weight
  • 143g165g

  • Fan Speed
  • 700200~140010%RPM120010%RPM

  • Rated Current
  • 0.1710%A(MAX)0.0910%A

  • Power Input
  • 2.04W1.08W

  • Max. Air Flow
  • 80.28CFM52.35CFM

  • Noise
  • 18.2~32dB(A)23.2dB(A)

  • Rated Voltage
  • 12VDC

  • Operating Voltage
  • 10.813.2VDC

  • Starting Voltage
  • 7VDC

  • Bearing Type
  • Hydro Bearing

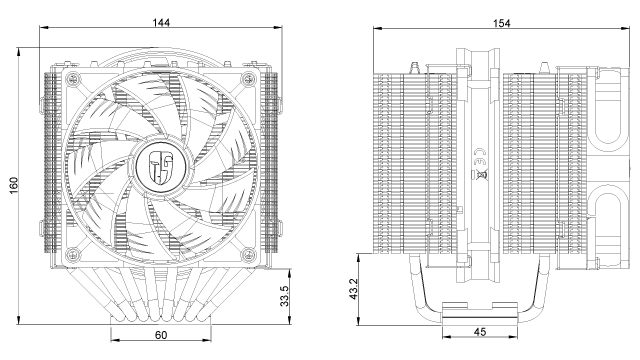

Overall Dimension


No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
