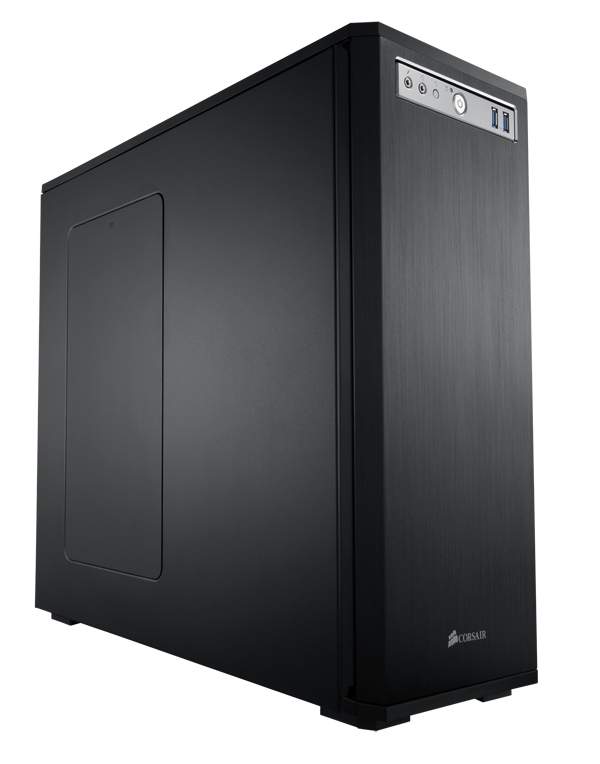

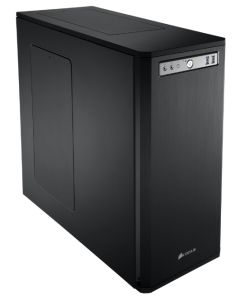

Obsidian Series 550D Mid-Tower Case Quiet Case
A revolutionary combination of noise reduction and cooling.
Obsidian Series 550D is carefully engineered for noise reduction and sound isolation. But, its not just about keeping things quiet theres amazing cooling potential, lots of expansion flexibility, and the durability that Obsidian Series is renowned for.
SKU# CC-9011015-WW
Overview
The Obsidian Series: Designed by builders, for builders
A revolutionary combination of noise reduction and cooling.
Obsidian Series 550D is carefully engineered for noise reduction and sound isolation. But, its not just about keeping things quiet theres amazing cooling potential, lots of expansion flexibility, and the durability that Obsidian Series is renowned for.
Superior airflow for high-performance PCs.
Obsidian Series 550D comes with two front-mounted 120mm intake fans and one 120mm exhaust fan more than enough for delivering the airflow required for a high-performance system. But if youre pushing past high performance and into the realm of extreme-performance overclocking, theres room for a lot more. The top panel provides room for two 120mm or 140mm fans, or a 240mm radiator for compatibility with Corsair Hydro Series CPU coolers and other liquid cooling systems. The side panel has mounting points for another two 120mm or 140mm fans for cooling multiple GPUs. In total, the 550D offers ten 120mm fan mounting points, six of which can also accommodate 140mm fans.
Stamped steel meets rugged aluminum for a look that’s subtly elegant.
The silent treatment.
With many high-end PC cases, cooling is often provided without consideration for noise. Not so with the 550D: the front and side panels are fully lined with sound-damping material, and the top and side panels have their own sound-insulated vent covers to reduce noise leakage from unused fan mounting locations. The front air intakes are angled away from the front of the case for noise reduction, and the fans and drive bays use silicone mounts to reduce vibration noise. The result is a platform for building high-performance PCs you can live with.

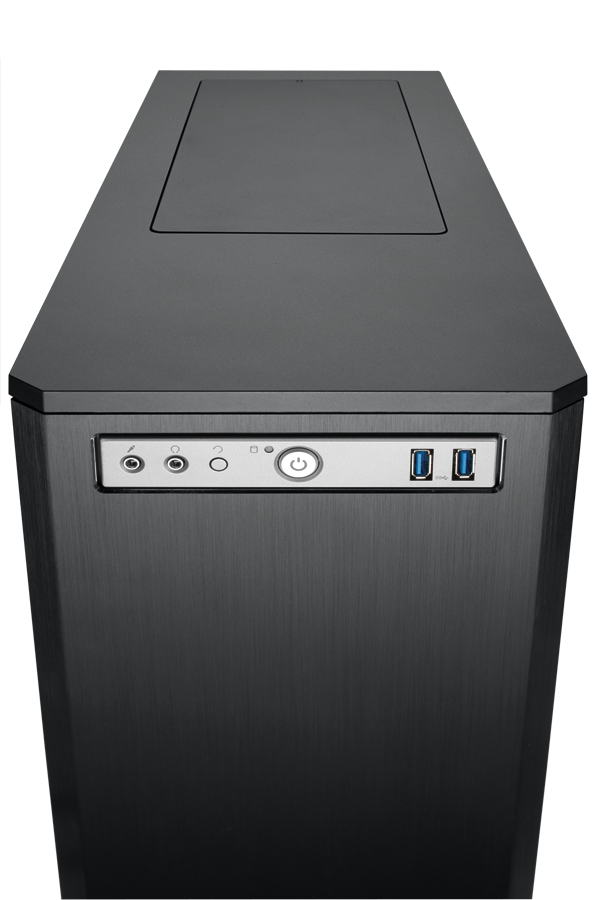

The diamond-cut aluminum front panel includes two USB 3.0 connectors and audio connectors.
Smart features for serious builders.
The extra touches like magnetically mounted dust filters and one-button side panel removal make building fun, and using a 550D-based system a rewarding experience. Expansion is easy, with eight expansion slots, six tool-free hard drive bays with removable caddies and integrated 2.5” SSD support, and four tool-free optical drive bays. The top drive cage can be removed to accommodate GPUs of up to 452mm in length. The diamond-cut brushed aluminum front panel houses two high-speed USB 3.0 connectors and audio ports.
The Obsidian Series: Designed by builders, for builders
World-class Obsidian Series cases are made from stamped steel and brushed aluminum, providing both outstanding durability and great looks. State-of-the-art features are engineered with the singular purpose of meeting the needs of professional builders, high-end system integrators, and performance enthusiasts. Builds are straightforward and efficient, and theres room for nearly any system configuration you can imagine.
Contents and Specifications
Package contents
- Obsidian Series 550D
- Quick Start Guide
- Installation kit
Technical Specifications
- Four 5.25” drive bays
- Six 3.5” hard drive bays with 2.5” compatibility
- Eight expansion slots
- Supports most 240mm dual radiators (15mm spacing)
- Two-year warranty
- Front I/O panel contains:
- Two USB 3.0 connectors
- 3.5mm headphone and microphone connector
- Power and reset switches
- Dimensions: 20.9” x 8.7” x 19.5”
- Ten available fan mount locations
- Six 120mm/140mm fan mount locations
- Four 120mm fan mount locations
- One 200MM side panel fan mount location
- Three 120mm fans included
Compatibility
- ATX and Micro ATX motherboards
Specifications:
Warranty: Two years
Dimension: 20.9 x 8.7 x 19.5
MB Support: ATX, mATX
Expansion Slots: 8
Form Factor: Mid-tower
Material: Steel structure with black brushed aluminum faceplate
Drive Bays: (x4) 5.25, (x6) 3.5/2.5 Drive Caddies
Cooling: (x2) 200mm Fans, (x1) 120mm Fans
Front I/O: (x2) USB 3.0, (x1) Headphone, (x1) Mic
Power Supply: ATX (not included)
