All stock codes associated to this product
, CO9050004WW(AF120TPPE), CO-9050004-WW(AF120TP-PE)

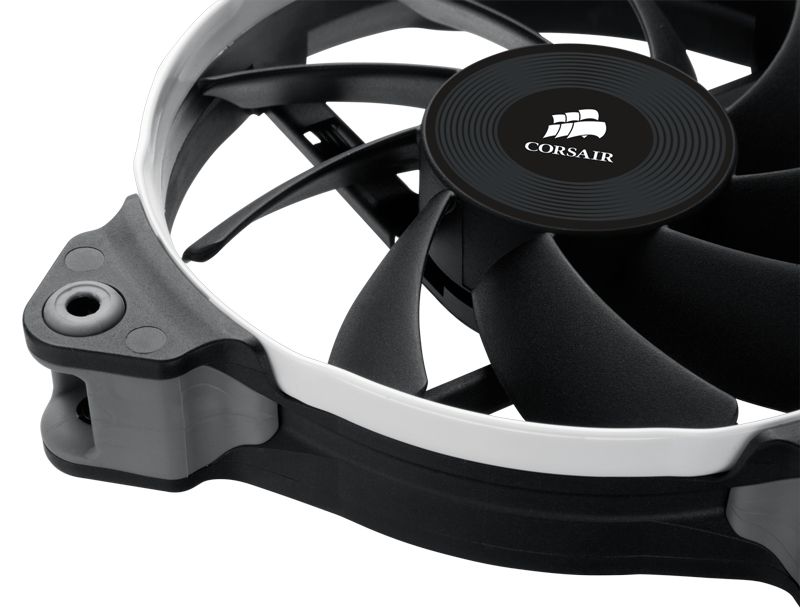

Air Series AF120 Performance Edition High Airflow 120mm Fan
Air Series AF120: High Airflow, Low Noise
The Air Series AF120 fans let you have it all. Nine ultra-thin, custom-molded blades push ample air volume. Rubber corners dramatically reduce vibration. The advanced hydraulic bearing system is quiet and reliable, and you can customize the look with the three included colored rings.
SKU# CO-9050003-WW
Overview
High Airflow for Efficient Large-Volume Cooling
Air Series AF fan models perform best in unrestricted spaces with at least 3cm of clearance, and theyre ideal for mounting at the rear or top of your PC case as exhaust fans for your PCs motherboard and CPU, graphics accelerators, and other components that fill the case with heat. They work equally well as unrestricted intake fans for areas like side panels or bottom intakes.
For high restriction areas like hard drive cages or in other tight spaces where theres less air volume, check out our Air Series SP models of high static pressure fans.
The ultra-thin blades are custom-molded for high-volume air delivery with low noise, while rubber corners reduce vibration and noise.
Performance
| |
AF120 Performance Edition |
AF120 Quiet Edition |
| Size |
120mm x 25mm |
| Operating Voltage |
7V 12V |
| Performance at 12V |
| Airflow |
63.47 CFM |
39.88 CFM |
| Static Pressure |
1.1 mm/H20 |
.5 mm/H20 |
| Sound Level |
30 dBA |
21 dBA |
| Speed |
1650 RPM |
1100 RPM |
| Power Draw |
0.13 A |
0.08 A |
Technical Specifications
Package contents
- AF120 Performance Edition Fan
- Three colored rings in red, blue, and white
- Mounting Screws
- Voltage step-down adapter for lower speed operation
System requirements
- Motherboard with an open standard 3-pin fan connector
