All stock codes associated to this product
CO9050005WW(SP120QE), CO-9050005-WW(SP120-QE)

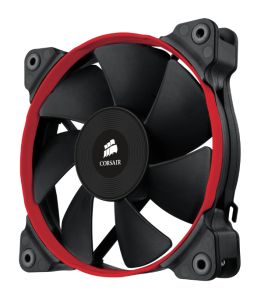

Air Series SP120 Quiet Edition High Static Pressure 120mm Fan
Air Series SP120: Improved heatsink and radiator performance, less noise
The advanced design of the SP120 provides the higher static pressure that radiators and heatsinks demand, while maintaining a quiet noise profile. Seven ultra-wide, custom-molded blades deliver high static pressure, and the customized fan enclosure helps airflow move in the right direction. The rubber mounts and the advanced hydraulic bearing system combine high reliability with low-noise operation. Three included colored rings allow you to customize the look of the fan to match the rest of your hardware.
SKU# CO-9050005-WW
Overview
High Static Pressure for Efficient Cooling on Radiators or Heatsinks
Cooling todays high-performance PCs is a complex task, and a single fan design cant meet every need. The fan you use to exhaust hot air out of your case might not be the best fan to mount flush against a heatsink or radiator.
Static pressure is the measure of how well a fan can push air in this type of highly restrictive environment, and this is where the SP120 excels. Its an ideal solution for radiator and heatsink use, as well as drive bay intakes, and other locations where youre mounting a fan directly adjacent to a heat source.
For high-volume cooling in less restrictive environments, like case exhaust or side intakes, check out our AF series of high-volume fans.

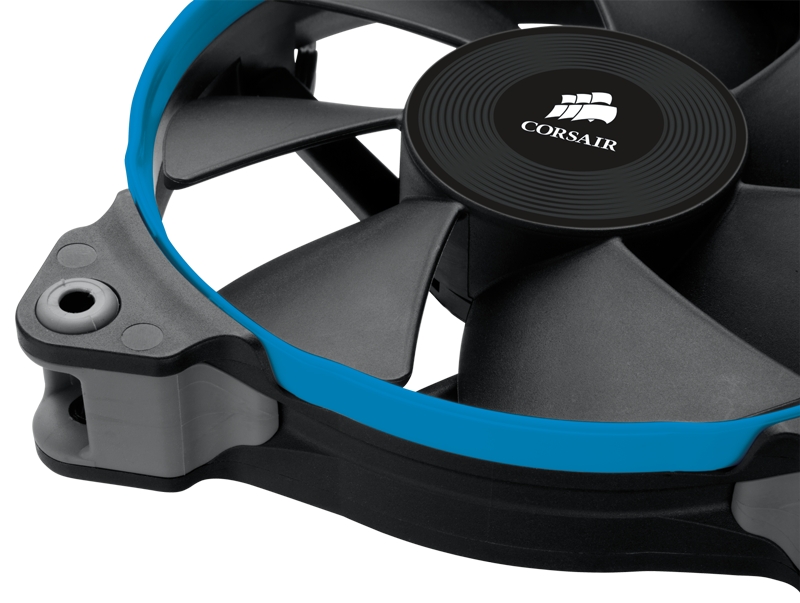

The wide body, low-pitch blades are custom-molded for high static pressure air delivery with low noise, while rubber corners reduce vibration and noise.
Performance
| SP120 High Performance Edition |
SP120 Quiet Edition |
| Size |
120mm x 25mm |
| Operating Voltage |
7V 12V |
| Performance at 12V |
| Airflow |
62.74 CFM |
37.85 CFM |
| Static Pressure |
3.1 mm/H20 |
1.29 mm/H20 |
| Sound Level |
35 dBA |
23 dBA |
| Speed |
2350 RPM |
1450 RPM |
| Power Draw |
0.18 A |
0.08 A |
Technical Specifications
Package contents
- SP120 Quiet Edition High Static Pressure Fan
- Three colored rings in red, blue, and white
- Mounting Screws
- Voltage step-down adapter for lower speed operation
System requirements
- Motherboard with an open standard 3-pin fan connector
