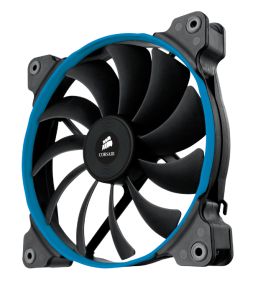

The Air Series AF140 fans let you have it all. Eleven ultra-thin, custom-molded blades push ample air volume. Rubber corners dramatically reduce vibration. The advanced hydraulic bearing system is quiet and reliable, and you can customize the look with the three included colored rings.
The Air Series AF140 fans let you have it all. Eleven ultra-thin, custom-molded blades push ample air volume. Rubber corners dramatically reduce vibration. The advanced hydraulic bearing system is quiet and reliable, and you can customize the look with the three included colored rings.
SKU# CO-9050009-WW
Overview
High Airflow for Efficient Large-Volume Cooling
AF models performs best in unrestricted spaces with at least 3cm of clearance, and they're ideal for mounting at the rear or top of your PC case as exhaust fans for your PC's motherboard and CPU, graphics accelerators, and other components that fill the case with heat. They work equally well as unrestricted intake fans for areas like side panels or bottom intakes.
For high restriction areas like hard drive cages or in other tight spaces where there's less air volume, check out our SP series of high static pressure fans.

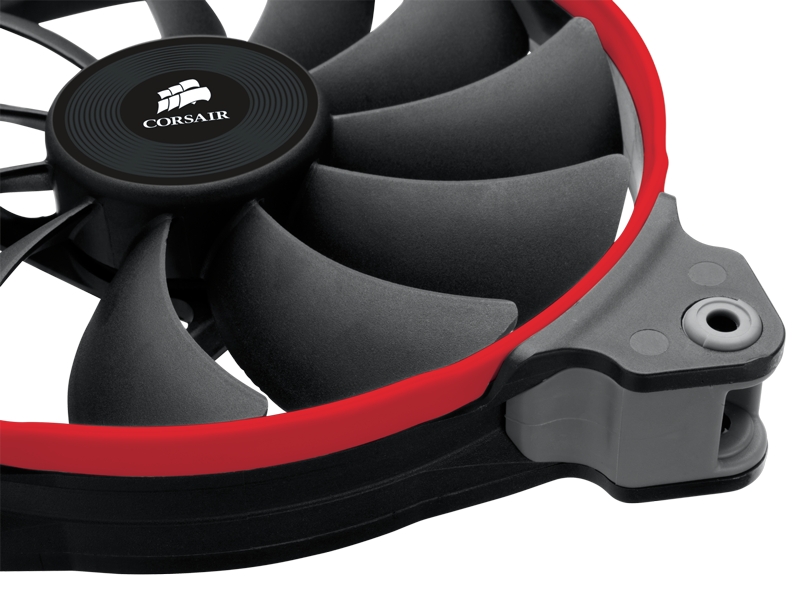

The ultra-thin blades are custom-molded for high-volume air delivery with low noise, and rubber corners reduce vibration and noise.
Performance
| AF140 Quiet Edition |
| Size |
140mm x 25mm |
| Operating Voltage |
7V 12V |
| Performance @ 12V: |
| Airflow |
67.8 CFM |
| Static Pressure |
.84 mm/H20 |
| Sound Level |
24 dBA |
| Speed |
1150 RPM |
| Power Draw |
.1A |
Technical Specifications
Package contents
- AF140 Quiet Edition Airflow Fan
- Three colored rings in red, blue, and white
- Mounting Screws
- Voltage step-down adapter for lower speed operation
System requirements
- Motherboard with an open standard 3-pin fan connector
