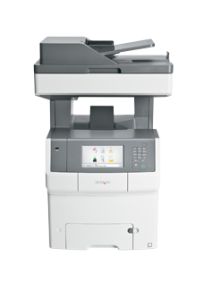

Lexmark X746de
Part #34T5089
Intuitive colour MFPs for busy workgroups
The Lexmark X746de MFP increases efficiency and delivers high-quality colour documents. Security controls and workflow-enhancing solutions make high-volume printing easy and secure.
Highlights
Features
INTUITIVE COLOUR TOUCH SCREEN
The easy-to-use 7-inch colour touch screen provides audible feedback and tablet-like navigation to make device operation intuitive and simple.
CORPORATE COLOUR MATCHING
Match corporate colours on marketing collateral and brand-sensitive text and graphics with Lexmark Named Color Replacement and PANTONE® calibration.
CONVENIENT UPDATES
Preview documents and change output settings such as two-sided printing directly at the device.
MULTIPLE MEDIA SUPPORT
Expand input capacity with optional drawers that let you load multiple media types and boost total input capacity up to 4,300 sheets.
ADVANCED SECURITY
Protect your device, data and network with innovative security controls like authentication and authorisation, and disk wiping and encryption.
ECO-FRIENDLY PRINTING
Print responsibly with Eco-Settings that let you customise print settings and Hibernate Mode which reduces energy consumption to less than one watt.
Specifications:
- Function
- Colour Copying
Colour Faxing
Colour Printing
Colour Scanning
Colour Network Scanning
- Packaged Size (in. - H x W x D)
- 41.1 x 28.74 x 26.38 in.
- Size (mm - H x W x D)
- 787 x 546 x 622 mm
- Packaged Size (mm - H x W x D)
- 1044 x 730 x 670 mm
- Product Warranty
- 1-Year Onsite Service, Next Business Day
- Packaged Weight (lb.)
- 136 lb.
- Packaged Weight (kg)
- 61.7 kg
- Size, Trays Extended (mm - H x W x D)
- not define mm
- Product Certifications
- Energy Star, Blue Angel (RAL-UZ-122), CAN/CSA-C22.2 60950-1, CSA E60825-1, ICES-003 Class A, BSMI Class A, VCCI Class A, US FDA, FCC Class A, UL 60950-1, EN/IEC 60320-1, CE Class A, CB IEC 60950-1, EN 60950-1, EN/IEC 61000-3, EN 55022 Class A, EN 55024, EN/IEC 60825-1, GS (TV), AR S (TV), SMA C-tick mark Class A, CCC Class A, CISPIR 22 Class A, MIC Mark, EK Mark
- Specified Operating Environment
- Temperature:16 to 32C
Humidity: 8 to 80% Relative Humidity
Altitude: 0 - 3048 Metres
- Country of Origin
- China (PR)
- Display
- Lexmark e-Task 17.8 cm colour touch screen with audible feedback
- Energy Star Typical Electricity Consumption (TEC)
- 4.525 kilowatt-hours per week
- Harmonized Tariff Code
- 8443.31.0000
- Print Technology
- Colour Laser
- Print Resolution, Black
- 1200 x 1200 dpi
4800 Colour Quality (2400 x 600 dpi)
- Print Resolution, Colour
- 1200 x 1200 dpi
4800 Colour Quality (2400 x 600 dpi)
- Print Speed (A4, Black): Up to
- 33 ppm
- Print Speed (A4, Colour): Up to
- 33 ppm
- Print Speed (A4, Black) Duplex: Up to
- 22 spm
- Time to First Page (Black) As fast as
- 9 seconds
- Expandable Memory Options
- Yes
- Printable Area
- 0.167 inches of the top, bottom, right and left edges (within)
- Printable Area (metric)
- 4.2 mm of the top, bottom, right and left edges (within)
- Print Noise Level, Operating
- 59 dBA
- Time to First Page (Colour) as fast as
- 9 seconds
- Duplex Print Noise Level, Operating
- 58 dBA
- Hard Disk
- Option available
- Maximum Monthly Duty Cycle: Up to
- 100000 pages per month
- Recommended Monthly Page Volume
- 3000 - 10000 pages
- Duty Cycle Notes
- "Recommended Monthly Page Volume" is a range of pages that helps customers evaluate Lexmarks product offerings based on the average number of pages customers plan to print on the device each month. Lexmark recommends that the number of pages per month be within the stated range for optimum device performance, based on factors including: supplies replacement intervals, paper loading intervals, speed, and typical customer usage.
"Maximum Monthly Duty Cycle" is defined as the maximum number of pages a device could deliver in a month using a multishift operation. This metric provides a comparison of robustness in relation to other Lexmark printers and MFPs.
- Copy Speed (A4, Black): Up to
- 33 cpm
- Copy Speed (A4, Colour): Up to
- 33 cpm
- Time to First Copy (Black) As fast as
- 13 seconds
- Reduce / Enlarge Range
- 25 - 400 %
- Copy Noise Level, Operating
- 59 dBA
- Time to First Copy (Colour) as fast as
- 13.5 seconds
- Scan Area, Maximum (mm)
- 216 x 355 mm
- Simplex Scan Speed (A4/Ltr, Black): Up to
- 34 / 35 sides per minute
- Scan Speed (A4/Ltr, Colour): Up to
- 33 / 35 sides per minute
- Duplex Scan Speed (A4/Ltr, Black): Up to
- 12 / 12 sides per minute
- Duplex Scan Speed (A4/Ltr, Colour): Up to
- 12 / 12 sides per minute
- Hardware Scanning Resolution
- 600 X 600 ppi
- Scan Noise Level, Operating
- 54 dBA
- Scanner Type
- Flatbed scanner with ADF
- ADF Scan
- RADF (reversing Duplex)
- Paper Handling Standard
- 250-Sheet Output Bin
Integrated Duplex
100-Sheet Multipurpose Feeder
550-Sheet Input Tray
- Paper Handling Optional
- 550-Sheet Drawer
2,000-Sheet High Capacity Feeder
550-Sheet Specialty Media Drawer
- ADF Paper Input Capacity: Up to
- 50 pages 75 gsm bond
- Paper Input Capacity, Standard: Up to
- 650 pages 75 gsm bond
- Paper Input Capacity, Maximum: Up to
- 4300 pages 75 gsm bond
- Paper Output Capacity, Standard: Up to
- 250 pages 75 gsm bond
- Paper Output Capacity, Maximum: Up to
- 250 pages 75 gsm bond
- Media Sizes Supported
- 10 Envelope
7 3/4 Envelope
9 Envelope
A4
A5
B5 Envelope
C5 Envelope
DL Envelope
B5
Executive
Folio
JIS-B5
Legal
Letter
Statement
Universal
Oficio
A6
- Media Types Supported
- Card Stock
Envelopes
Paper Labels
Plain Paper
Transparencies
Vinyl Labels
Refer to the Card Stock & Label Guide
- ADF Paper Output Capacity: Up to
- 50 pages 75 gsm bond
- Paper Weight Range Supported - Standard Tray (gsm)
- 60 - 218 gsm
- Number of Paper Inputs, Standard
- 2
- Number of Paper Inputs, Maximum
- 6
- Duplex (2-sided) Printing
- Integrated Duplex
- Supplies Yield
- *Average continuous black or continuous composite CMY declared cartridge yield up to this number of standard pages in accordance with ISO/IEC 19798.
12,000*-page Black High Yield Toner Cartridge
7,000*-page Colour (CMY) Toner Cartridges
- Cartridge(s) Shipping with Product
- 6,000*-page Black Starter Return Program Toner Cartridge
6,000*-page Colour (CMY) Starter Return Program Toner Cartridges
- Photoconductor Notes
- Actual Yield may vary based on other factors such as device speed, paper size and feed orientation, toner coverage, tray source, percentage of black-only printing and average print job complexity.
- Photoconductor Estimated Yield: Up to
- 20,000 pages, based on 3 average letter/A4-size pages per print job
- Apple Macintosh Operating Systems Supported
- Apple Mac OS X (10.5, 10.6, 10.7)
- Microsoft Windows Operating Systems Supported
- Microsoft Windows XP
Microsoft Windows Server 2003
Microsoft Windows XP x64
Microsoft Windows Server 2003 running Terminal Services
Microsoft Windows Server 2003 x64
Microsoft Windows Server 2003 x64 running Terminal Services
Microsoft Windows Vista
Microsoft Windows Vista x64
Microsoft Windows Server 2008
Microsoft Windows Server 2008 x64
Microsoft Windows Server 2008 running Terminal Services
Microsoft Windows Server 2008 x64 running Terminal Services
Microsoft Windows 7
Microsoft Windows 7 x64
Microsoft Windows Server 2008 R2
Microsoft Windows Server 2008 R2 running Terminal Services
- Novell Operating Systems Supported
- Novell NetWare 6.5 Open Enterprise Server
Novell NetWare 5.1(SP 6+), 6.0(SP 3+) with Novell Distributed Print Services (NDPS)
Novell Open Enterprise Server on SUSE Linux Enterprise Server
- Linux Operating Systems Supported
- SUSE Linux Enterprise Server 10, 11
SUSE Linux Enterprise Desktop 10, 11
Red Flag Linux Desktop 6.0
Linpus Linux Desktop 9.6
openSUSE 11.2, 11.3, 11.4
Debian GNU/Linux 5.0, 6.0
Fedora 14
Mint 9, 10
Red Hat Enterprise Linux WS 4.0, 5.0, 6.0
Ubuntu 9.04 LTS, 10.04, 10.10
Ubuntu 11.04, 11.10, 12.04
PCLinuxOS 2010
- UNIX Operating Systems Supported
- Sun Solaris SPARC 8, 9, 10
Sun Solaris x86 10
HP-UX 11.11, 11.23, 11.31
IBM AIX 5.2, 5.3, 6.1, 7.1
- Citrix MetaFrame
- Microsoft Windows Server 2003 running Terminal Services with Citrix Presentation Server 3.0, 4.0, 4.5
Microsoft Windows Server 2003 x64 running Terminal Services with Citrix Presentation Server 4.0 x64, 4.5 x64
Microsoft Windows Server 2003 and 2003 X64 Edition with Citrix XenApp 5.0
Microsoft Windows Server 2008 and 2008 X64 Edition with Citrix XenApp 5.0
- Standard Ports
- USB 2.0 Specification Hi-Speed Certified (Type B)
Front USB 2.0 Specification Hi-Speed Certified port (Type A)
Rear USB 2.0 Specification Hi-Speed Certified port (Type A)
Ethernet 10/100/1000 BaseTX (RJ-45)
- Optional Local Ports
- Internal RS-232C serial
Internal 1284-B Bidirectional Parallel
- Optional Network Ports
- Internal MarkNet N8250 802.11b/g/n Wireless
- Printer Languages (Standard)
- PCL 5c Emulation
PCL 6 Emulation
Personal Printer Data Stream (PPDS)
PostScript 3 Emulation
xHTML
PDF 1.6
Direct Image
Microsoft XPS (XML Paper Specification)
- Fonts and Symbol Sets
- 3 of 9 scalable PCL 5e fonts in Narrow, Regular and Wide
158 scalable PostScript fonts
2 PCL bitmap fonts
39 scalable PPDS fonts
5 PPDS bitmap fonts
84 scalable PCL fonts
OCR-A, OCR-B scalable PCL 5e fonts
For more information, refer to the Technical Reference.
- Network Protocol Support
- TCP/IP IPv4
AppleTalk
TCP/IP IPv6
TCP
UDP
- Network Printing Methods
- LPR/LPD
Direct IP (Port 9100)
HTTP
Enhanced IP (Port 9400)
FTP, TFTP
IPP 1.1 (Internet Printing Protocol)
ThinPrint .print integration
- Network Security
- SNMPv3
802.1x Authentication: MD5, MSCHAPv2, LEAP, PEAP, TLS, TTLS
IPSec
- Network Management Protocols
- HTTP
HTTPs (SSL*/TLS)
SNMPv3
WINS
IGMP
BOOTP, RARP
APIPA (AutoIP)
DHCP
ICMP
DNS
SNMPv2c
Bonjour
DDNS
mDNS
ARP
NTP
Telnet
Finger
*This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit.
