All stock codes associated to this product
CC9011017WW(300RBLKW), CC-9011017-WW(300R-BLK-W)

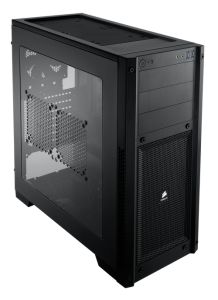

Carbide Series™ 300R Windowed Compact PC Gaming Case
Carbide Series 300R: A compact expression of Corsair's gaming philosophy.
The 300R provides a remarkable number of features in a compact chassis. Easy access, lots of room for expansion, and superior cooling make the 300R a great choice for building powerful PCs that don't take up a lot of room.
SKU# CC-9011017-WW
Overview
The Corsair Carbide Series: Everything You Need, Nothing You Don't.
A compact expression of Corsair's gaming philosophy.
Great systems start with a great case, and Carbide Series 300R provides a remarkable number of features in a compact chassis. Easy access, lots of room for expansion, and superior cooling make the 300R a great choice for building powerful PCs that don't take up a lot of room.
Serious cooling potential.
The 300R is equipped with two fans for intake and exhaust, and the integrated dust filters on the front and bottom intakes are easy removable. There's room for you to install five more fans, including mounting points for two side panel 120mm fans for drawing cool air directly over your GPUs. If you're building a multi-GPU gaming rig, proper graphics ventilation is essential.

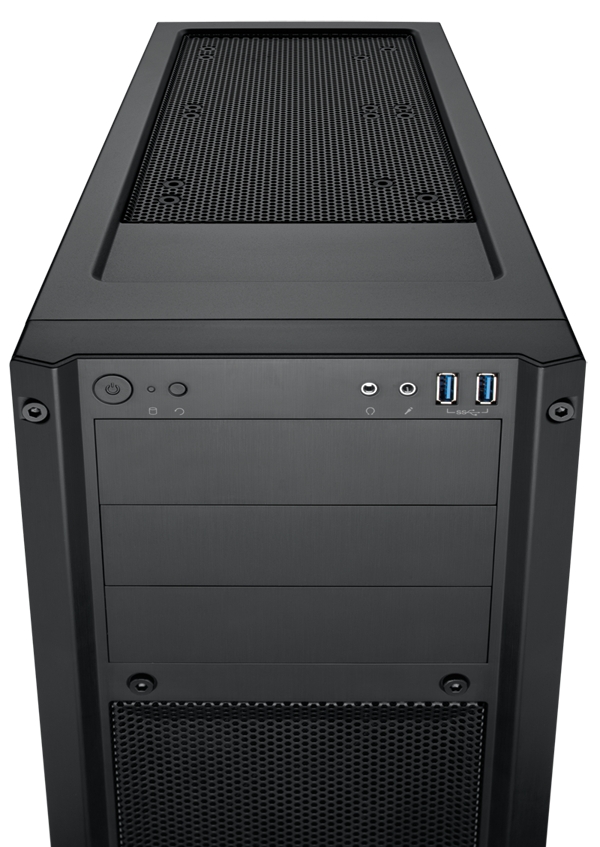

The front panel includes two USB 3.0 connectors and audio connectors.
High-performance gaming systems need room to work with. The compact 300R delievers the room you need to build your ultimate gaming PC.
It's big where it counts.
Despite its size, the 300R can fit extra-long graphics cards of up to 450mm length, and it has three optical drive bays and four hard drive bays. All the bays are tool-free, and the hard drive bays have integrated support for 2.5" drives, so you won't need to deal with adapters when installing SSDs
Build quality.
Whether you're building multiple systems or just one, and whether you're a professional or if it's your very first build, the 300R has the smart features that matter. Just like the drive bays, the side panels are tool-free, so you'll spend less quality time with your screwdriver.

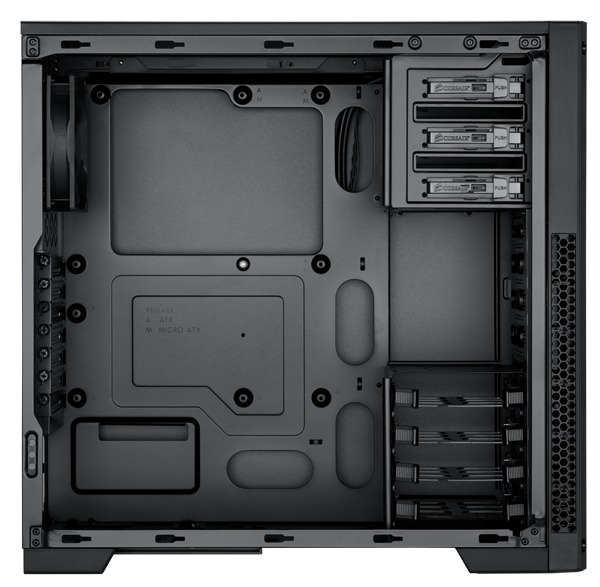

The black painted interior has a CPU cutout for quick installing or upgrading of CPU heatsinks, and Corsair's innovative cable management system provides a straightforward way to route cables behind the motherboard, not across it where it can interfere with airflow and give your system a cluttered look.
Contents and Specifications
Package contents
Carbide Series 300R
Quick Start Guide
Installation kit
Technical Specifications
Three 5.25” drive bays
Four3.5” hard drive bays with 2.5” compatibility
Seven expansion slots
Two-year warranty
Front I/O panel contains:
Two USB 3.0 connectors
3.5” headphone and microphone connector
Power and reset switches
Dimensions: 19.1” x 8.3” x 17.7”
Supports graphics cards up to 450mm in length
Two 120mm/140mm top fan mount locations
Two side panel 120/140mm fan mount locations
Two front panel 120/140mm fan mount locations
Includes one front-mounted 140mm fan and one rear 120mm fan
Compatibility
ATX and Micro ATX motherboards
Specifications:
Warranty: Two years
Dimension: 19.1” x 8.3” x 17.7”
MB Support: ATX, mATX
Expansion Slots: 7
Form Factor: Mid-tower
Material: Steel structure with molded ABS plastic accent pieces
Drive Bays: (x3) 5.25", (x4) 3.5"/2.5" Drive Caddies
Cooling: (x6) 120mm/140mm fan mounts, (x1) 120mm fan mounts, Includes (x1) front-mounted 120mm fans and (x1) rear 120mm fan
Front I/O: (x2) USB 3.0, (x1) Headphone, (x1) MIC, Power, Reset
Power Supply: ATX (not included)
