All stock codes associated to this product
AV320E2, AV3101
AV320E2+
Description
High Scan Rate and Great Performance
The Avision AV320E2+ is our most advanced and powerful high speed sheet feddocument scanner. Built to last using premium parts and material, the AV320E2+ can handle unprecedented 8,000 recommended daily duty cycles, and a pad life of 200,000 scans. The extra large capacity of its ADF can hold up to 150 sheets, compared to the standard of 50 sheets of our other models.
The AV320E2+ is capable of scanning documents up to A3 sizes, ensuring a wide range of document compatibility at your workplace. Equipped with new and improved rollers, it can take virtually any A8 to A3 size mixed documents you throw at it. No more need to pre-filter and organize similar-sized documents before batch scanning.
It doesn't stop there. The most amazing aspect of the AV320E2+ is its incredible scanning speed – a lightning fast 80ppm / 160ipm at 200dpi resolution in gray mode and 60 ppm / 120ipm at 300dpi resolution in color mode! Quantity and quality achieved, absolutely no compromises.
Look no further than the AV320E2+ for the ultimate solution to all your scanning needs.
Features:
Scan rate up to 80 PPM/160 IPM at 200 dpi, gray mode
The AV320E2+ delivers fast scan rates of 80 pages per minutes in simplex and 160 images per minutes in duplex at 200 dpi gray and 60 pages per minutes in simplex and 120 images per minutes in duplex at 300 dpi color, providing a truly breathtaking digitalizing experience.

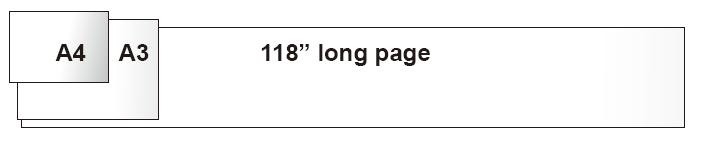

Support document up to A3 size, and support long page up to 118"(3m)
The reliable paper feed system also lets you scan unusually long document up to 3 meters (118") at 300 dpi in color, grayscale, or black and white. This is ideal for scanning engineering diagram, insurance bill, health record or other special documents.
Avision Button Manager
For typical users, Avision's Button Manager provides ease of use with 9 pre-configured file formats and destinations. For advanced users, Avision's Button Manager allows full customization. With a simple touch of the button, users can conveniently scan and send images to E-mail software, specific folder, favorite software application, your printer, or convert into searchable PDF format!
New TWAIN driver support

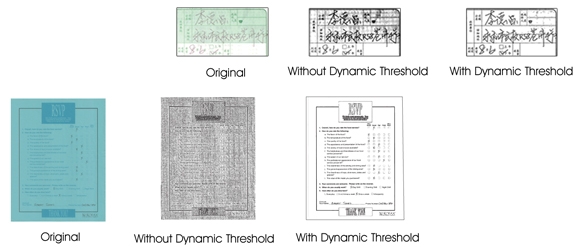

AV320E2+ incorporates the latest TWAIN driver with new features and enhancement such as the ability to adjust sensitivity of dynamic threshold, document/photo color matching, custom color dropout, automatic multiple cropping, intelligent multi-feed, reduce despeckle, image count, digital imprinter, and transport timeout. We are committed to improving the TWAIN driver continuously to enrich your scanning experience as never before.
Ultrasonic Multi-Feed Detection
The Avision AV320E2+ uses sound waves to detect multiple documents that go through the scanner at the same time. When multiple pages are fed, the scanner detects multi-feed and sends a warning message. This action ensures that all of your critical documents are imaged correctly without losing a single page.
Specifications:
| AV320E2+ |
| General Specification |
| Technology |
Color Charged-Coupled Device (CCD) |
| Light Source |
LED |
| Document feeding mode |
ADF |
| Optical Resolution (dpi) |
600 |
| Halftone Patterns |
Dither and Error Diffusion |
| Grayscale mode |
16bits input 8bits output |
| Color mode |
48bits input 24bits output |
| Memory Size |
256MB SDRAM |
| Dimensions (WxDxH) |
420 x 216 x 250 mm ( 16.5 x 8.5 x 9.8 in ) |
| Weight |
12 kg (26.4 lbs) |
| Interface |
USB 2.0 |
| Power Consumption |
Operation: < 68 W
Standby: < 38 W
Power saving: < 5 W |
| Recommended Daily Volume |
Up to 8000 pages |
| OS Support |
WinXP/Vista/Win 7 |
| Bundled Software |
ISIS driver, TWAIN driver, Button Manager, AVScan 5.0, PaperPort 14 SE |
| Features |
| Ultrasonic paper jam detection |
Yes |
| Long Paper Mode |
Up to 36 inch (200 dpi)
Up to 118 inch (300 dpi @ color simplex) |
| Card Scan |
Embossed card (Thickness 1.25mm) |
| Scan Size |
| ADF Minimum |
50 x 88 mm ( 2 x 3 in ) |
| ADF Maximum |
297 x 432 mm (A3) ( 11.7 x 17 in ) |
| ADF Capacity |
150 sheets (60 g/m or 16 lb. Paper) |
| Paper Thickness and Weight |
28 ~ 413 g/m ( 7 to 110 lb ) |
| Scanning Speed |
| B/W @ 200dpi, A4 |
Simplex : 80 PPM
Duplex : 160 IPM |
| B/W @ 300dpi, A4 |
Simplex : 60 PPM
Duplex : 120 IPM |
| Color @ 200dpi, A4 |
Simplex : 60 PPM
Duplex : 120 IPM |
| Color @ 300dpi, A4 |
Simplex : 60 PPM
Duplex : 120 IPM |
