All stock codes associated to this product
FDCADEFXLR2BL, FD-CA-DEFXLR2-BL, FD-CA-DEF-XL-R2-BL

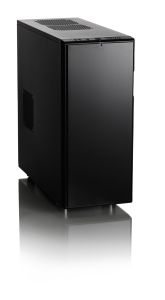

Define XL R2 Black Pearl
Information
Fractal Design builds on the success of its awarding-winning Define XL computer case with the Define XL R2. This updated chassis carries on the family tradition of providing superb cooling and ventilation capabilities with exceptional expandability, in a sleek and stylish Scandinavian form.
The Define XL R2, which includes Fractal Designs innovative ModuVent feature, has an updated internal layout that offers greater expandability, modularity and flexibility, including capacity for 9 PCI cards and two HDD cages that can be repositioned to provide more space for water cooling radiators.
Key features
- High density noise-reducing material for an optimal silent case
- Patented ModuVent design allowing the user to choose between optimal silence or maximum airflow.
- With a new internal layout and additional PCI expansion slots, it can harbor the most powerful enthusiast systems.
- Both HDD cages can be removed or repositioned - Top HDD cage can be removed or repositioned for increased airflow whereas bottom HDD cage can be repositioned further into the case to allow for front radiator mount.
- The case can fit water cooling equipment in the front, top, rear and bottom without major modifications.
- Three-speed fan controller is strategically integrated in the front panel and supports up to 3 fans
- Three Silent Series R2 fans are included, featuring hydraulic bearings which contribute to a longer life expectancy Silent Series R2 retail fans now come standard in all cases
- New tool-less front fan holder makes switching front fans a breeze
Specifications
- ATX, Micro ATX, Mini ATX, E-ATX and XL-ATX motherboard compatibility
- 4 - 5.25" bays
- 8 - 3.5" HDD trays - all compatible with SSDs
- A total of 9 expansion slots
- 3 - ModuVent plates two in the top and one in the side
- 7 - Fan positions (3 fans included)
- Filtered fan slots in front and bottom
- CPU coolers up to 170 mm tall (when no fan is installed in the side panel)
- PSU compatibility: ATX PSUs up to 190 mm deep when using the bottom fan location; when not using this fan location longer PSUs (up to 345 mm deep) can be used
- Graphics card compatibility: Graphics cards up to 330mm in length with the top HDD cage installed - With the top cage removed, graphics cards up to 480mm in length may be installed
- 26 mm of space for cable routing behind the motherboard plate
- Thick rubber grommets on all holes on the motherboard plate
- Colors available: Black Pearl, Titanium Grey
- Case dimensions (WxHxD): 232 x 559 x 560mm
- Net weight: 16.4kg
- Package dimensions (WxHxD): 322 x 637 x 655mm
- Package weight: 19kg
Cooling system
- Front: 1 - hydraulic bearing 140mm Silent Series R2 fan, 1000 RPM speed (included) ; 1 - 120/140mm fan (not included)
- Rear: 1 - hydraulic bearing 140mm Silent Series R2 fan, 1000 RPM speed (included)
- Top: 2 - 120/140mm fans (not included) positions also support 240/280mm slim radiators
- Bottom: 1 - hydraulic bearing 140mm Silent Series R2 fan, 1000 RPM speed (included)
- Side: 1 - 140mm fan (not included)
- Fan controller: 1 - integrated fan controller for up to 3 fans (included)
- Water cooling compatibility:
- Front 240mm radiator when HDD cages are removed or repositioned
- Top 240 and 280mm when using slim radiators
- Bottom 120mm radiators
- Rear 120 and 140mm radiators
Front Interface
- 2 - USB 3.0, 2 - USB 2.0
- Audio in/out
- Power button with LED (blue)
- Reset button
- Fan controller (behind door)
Package Contents
- Define XL R2 computer case
- Accessory box
- User manual
Additional information
- EAN/GTIN-13: 7350041081005
- UPC: 817301011006
- Product code: FD-CA-DEF-XL-R2-BL
- Available for System Integrators
