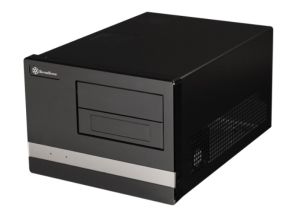

SilverStone SST-SG02B-F-USB3.0 HTPC Case - NO PSU, Black

The SG02F, as the successor to the SG02 is an evolutionary step forward in both performance and the capabilities over the original Sugo chassis, the SG01. With the case now capable of handling even more powerful graphics cards than ever before, the SilverStone engineers were still able to keep the smaller dimension in tact. Although SG02Fs front panel design is unchanged from its predecessor, its styling and function continues to stand out from ordinary SFF designs. The same can also be said of its tried and true chassis layout, which is still capable of accepting larger ATX power supply or optical drives than other SFF cases available. Built based on a brand new steel structure, the SG02F is sure to please potential builders looking for primarily silent applications.







Model No.	SST-SG02B-F (black)
	SST-SG02W-F (white)
	SST-SG02B-F-USB3.0 (black)
	SST-SG02W-F-USB3.0 (white)
Material	ABS & acrylic front panel, SECC body
Motherboard	Micro-ATX
Multimedia	--
Drive Bay	External	5.25 x 2
		3.5" converter x 1
	Internal	3.5 x 2
Cooling System	Front	--
	Rear	1 x 80mm fan slot, Optional cross-flow fan
	Side	1 x 80mm intake fan 2050rpm Option 80mm or 70mm in thickness of 25mm, 15mm or 10mm
	Top	1 x 80mm fan slot
	Bottom	--
	Internal	--
Expansion Slot	4
Front I/O Port	USB 2.0 x 2 (SST-SG02B-F, SST-SG02W-F only) USB 3.0 x 2 (SST-SG02B-F-USB3.0, SST-SG02W-F-USB3.0 only) IEEE 1394 x 1 Audio x 1 MIC x 1
Power Supply	Optional standard PS2(ATX)
Operating system support	--
Expansion Card	Full size long cards capable (14.5)*, width restriction-4.46"
Limitation of CPU cooler	82mm
Limitation of PSU	With ODD combine length = 370mm with 20mm connector
Net Weight	4.1 kg

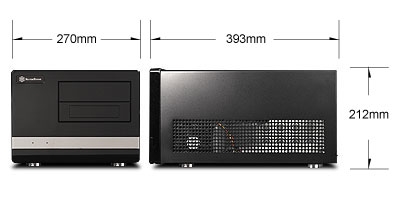

Dimension	270 mm (W) x 212 mm (H) x 393 mm (D), 22.5 liters
Extra	--
