All stock codes associated to this product
CW9060013WW(H90), CW-9060013-WW(H90), 843591037426

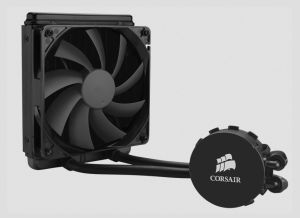

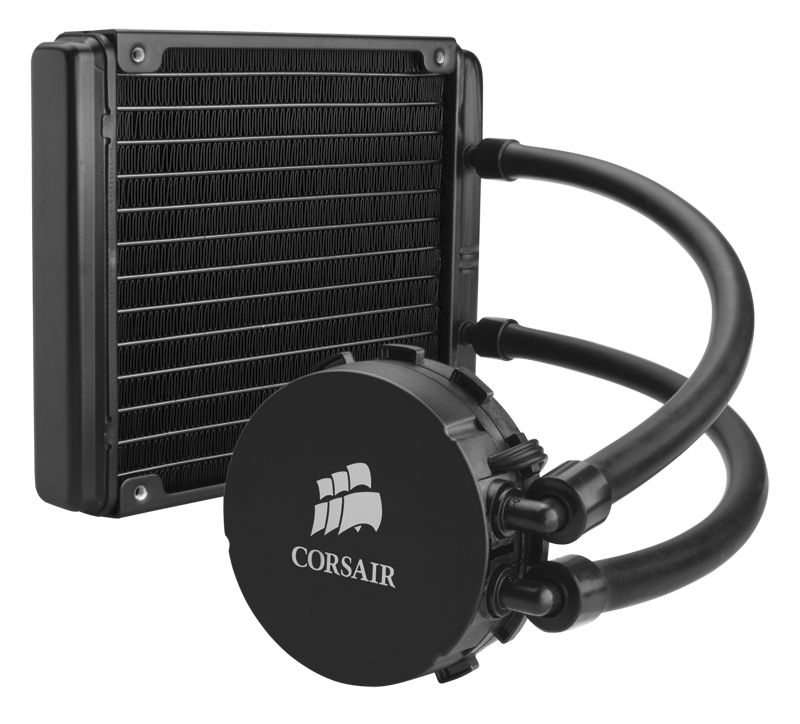

Hydro Series™ H90 140mm High Performance Liquid CPU Cooler
Hydro Series H90 Liquid CPU Cooler provides quiet, efficient, high-performance CPU cooling for cases which have a 140mm fan mount near the CPU.
SKU# CW-9060013-WW
Overview
Low noise, high performance CPU cooling
Hydro Series H90 is a 140mm all-in-one liquid CPU cooler that provides better cooling with lower noise than other high-end liquid coolers. Liquid cooling simply works better than air cooling, and the self-contained design of the H90 makes it easy for you to protect your valuable CPU.
Take advantage of your 140mm fan mount
For efficient cooling, bigger is better its simple physics. If your PCs case supports 140mm fans, Hydro Series H90 will give you better performance. The larger diameter fan has better airflow with lower noise than most 120mm fans, and the 140mm radiator has more surface area for faster cooling.
Features
140mm radiator
The 140mm-wide radiator has a larger surface area than typical 120mm radiators for more efficient heat transfer.

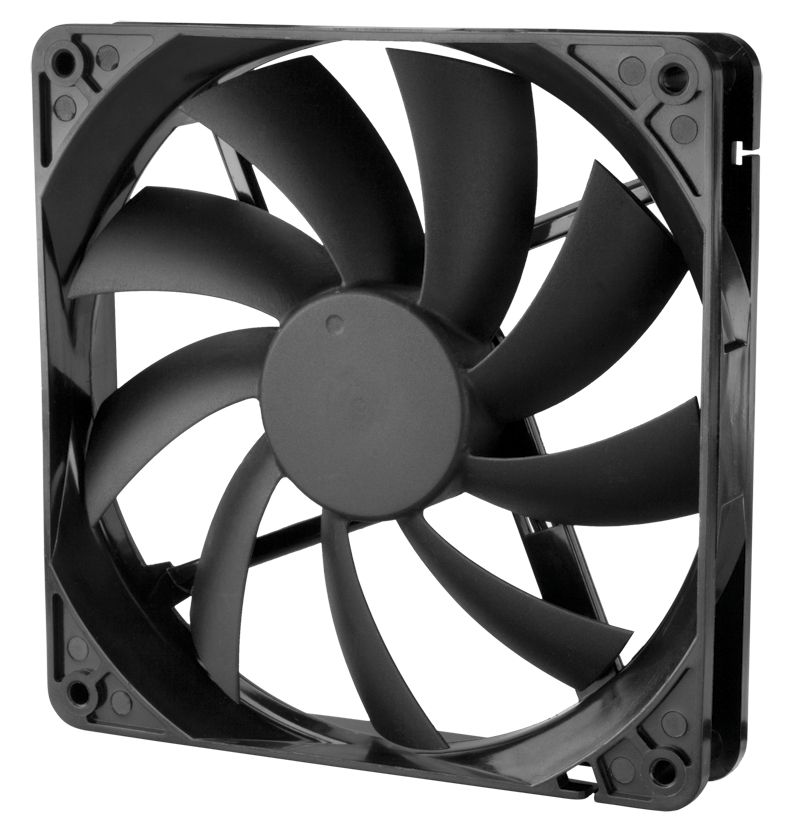

Low-RPM 140mm fan
The blades of the included 140mm fan are larger than most 120mm fan blades, so it doesn’t need to spin as fast to deliver the same airflow.
Next-generation tubing
The low-evaporation, easy-bend tubing is guaranteed leak-free.
Advanced cold plate and manifold design
The cold plate uses copper for outstanding heat transfer, and the manifold is engineered for efficient flow.
Simple mounting bracket
The multi-platform mounting bracket easily adapts for Intel and AMD processors.
Contents and Specifications
Package contents
- Corsair Hydro Series H90 High Performance Liquid CPU
- Mounting kit for all modern CPU sockets
- 140mm High Torque Fan
- Fan and radiator mounting screws
- Thermal compound (pre-applied)
- Quick Start Guide
Technical Specifications
- Radiator dimensions: 140mm x 170mm x 27mm
- Fan dimensions: 140mm x 25mm
- Fan speed: 1500 +/- 10% RPM
- Fan airflow: 94 CFM
- Fan static pressure: 1.64mm-H2O
- Noise level: 35dB(A)
Compatibility
- Intel LGA 1155, 1156, 1366, and 2011
- AMD sockets AM2, AM3, FM1, FM2
Specifications:
- Warranty: Five years
- Cold Plate Material: Copper
- Fan Specification: 140mm (x1)
- Socket Support: AMD AM2, AMD AM3, AMD FM1, AMD FM2, Intel LGA 1155, Intel LGA 1156, Intel LGA 1366, Intel LGA 2011
- Radiator Material: Aluminum
- Tubing: Low-evaporation, easy-bend tubing is guaranteed leak-free
