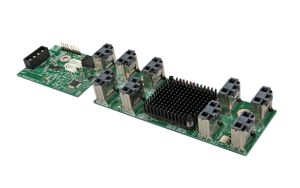

Intel RES2CV240 RAID Expander Card - 24-Port SAS/SATA-III

No Longer Available

Part Number:

219219

(?) Brand:

Intel Web Site

Manuf No:

RES2CV240

Shipping Weight:

1 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

RES2CV240

RES2CV240

Key Features

Six or nine SFF8087 SAS/SATA connectors for attaching up to 36 targets or initiators
Narrow width for mounting on chassis floor, wall, or duct
RA 4 pin power connector to power from a standard power cable
Mounting holes for attaching to a chassis or duct wall (if desired)
Includes up to six SAS cables with SFF8087 connectors at each end and designed to allow tight bend radii ease of procurement and integration simplicity (cables not shown)

Low Cost, High Performance

The Intel RAID Expander RES2CV360 and RES2CV240, powered by an LSISAS2x36/24 36- or 24-port SAS-2 expander, enable the connection of up to 32 or 20 directly attached SAS or Serial ATA (SATA) devices, and provide table routing to support connections for up to 1024 SAS addresses. Each expander is individually configurable and performs SAS and SATA transfers based on the speed of the host or target at either 6.0Gb/s, 3.0Gb/s, or 1.5Gb/s. The RES2CV360 and RES2CV240 have support management functions such as discovery and enclosure management, and can be cascaded to accommodate as many drives as the associated SAS/RAID card allows.

The RES2CV360 and RES2CV240 are excellent low-cost value-added alteratives to high port count RAID cards. Select the Intel RAID Expander RES2CV360 and RES2CV240 to achieve excellent performance and higher returns on investment. As the perfect complement for Intel SAS-2 generation RAID cards, the RES2CV360 and RES2CV240 offer ultimate flexibility for architecting a high drive count (>8 drive) storage solution in any sized system. The card has its own mounting spot in Intel Xeon processor E5-2600 2U chassis, when using 2.5 drives, and can be mounted to a chassis wall or air-duct in third party chassis.

Target Applications

The Intel RAID Expander RES2CV360 and RES2CV240 are ideal for scalable performance, like streaming media where the data is being pulled from numerous drives.

Key Advantages
Low-cost alternative to high port count RAID cards	Provides a more economical solution compared to an alternative solution with a high port count card; offers greater flexibility as the RES2CV360 and RES2CV240 can be teamed with a wide variety of 4- or 8-port SAS RAID card/modules to deliver features best suited to a customers needs.
Inside-the-box design flexibility	Narrow form factor design, the card can be mounted on a chassis wall or ducting. Power is obtained by using a power cable with a standard 4-pin power connector.
Excellent performance	Overall solution performance using a RES2CV360 and RES2CV240 is on par with SAS-2 high port count RAID from Intel with transfer rates of up to 6Gb/s per port. While todays high port count RAID cards typically include an expander on the card, a RES2CV360 and RES2CV240 solution separates the expander from the RAID card for high performance with more system design flexibility.
Compatible with SAS-2 RAID products	Connect any of the current SAS-2 RAID products from Intel including the Intel Integrated RAID Module RSCB080 for full hardware RAID functionality.
Exceptional quality and support	Thoroughly tested across the SAS-2 RAID product line from Intel to ensure ease of deployment; and backed by a 3-year warranty. Extended 5-year warranty also available.

Specifications:

Product Order Codes	RES2CV240	RES2CV360
Board form factor	Narrow system board	Narrow system board
Data transfer rate	6 Gb/s	6 Gb/s
Supported devices	SAS/SATA	SAS/SATA
Supported Operating Systems	N/A	N/A
Compatible Battery Backup Options	N/A	N/A
RAID level supported	Dependent on paired RAID card	Dependent on paired RAID card
# of ports internal	24	36
# of ports external	0	0
I/O processor model	LSI 6Gb SAS2x24 expander	LSI 6Gb SAS2x36 expander
Included Items		(1) expander board, (6) short mini-sas cables, (3) screws and bumpers
Compatible Products Lists
Compatible server/workstation board	Intel Server Board S2400SC2 Intel Server Board S2400EP2 Intel Server Board S2400EP4 Intel Server Board S2400GP2 Intel Server Board S2400GP4 Intel Server Board S1400SP2 Intel Server Board S1400SP4	Intel Server Board S2400SC2 Intel Server Board S2400GP2 Intel Server Board S2400GP4 Intel Server Board S1400SP2 Intel Server Board S1400SP4
Compatible system	Intel Server System R2208GZ4GC Intel Server System R2216GZ4GC Intel Server System R2208GL4GS Intel Server System R2224GZ4GCSAS Intel Workstation System P4304CR2LFKN Intel Workstation System P4304CR2LFJN Intel Workstation System P4304CR2LFGN Intel Server System R2224IP4LHPC Intel Server System R2216IP4LHPC Intel Server System R2312IP4LHPC Intel Server System P4224IP4LHKC Intel Server System P4216IP4LHJC Intel Server System P4208IP4LHGC Intel Server System P4308IP4LHKC Intel Server System P4308IP4LHJC Intel Server System P4308IP4LHGC Intel Server System P4304SC2SFEN Intel Server System P4304SC2SHDR Intel Server System P4308SC2MHGC Intel Server System R2208BB4GC Intel Server System R2216GZ4GCLX Intel Server System R2208GZ4IS Intel Server System R2208IP4LHPC Intel Server System R2308IP4LHPC Intel Server System R2224BB4GCSAS	Intel Server System R2208GZ4GC Intel Server System R2216GZ4GC Intel Server System R2208GL4GS Intel Server System R2224GZ4GCSAS Intel Workstation System P4304CR2LFKN Intel Workstation System P4304CR2LFJN Intel Workstation System P4304CR2LFGN Intel Server System R2224IP4LHPC Intel Server System R2216IP4LHPC Intel Server System R2312IP4LHPC Intel Server System P4224IP4LHKC Intel Server System P4216IP4LHJC Intel Server System P4208IP4LHGC Intel Server System P4308IP4LHKC Intel Server System P4308IP4LHJC Intel Server System P4308IP4LHGC Intel Server System P4304SC2SFEN Intel Server System P4304SC2SHDR Intel Server System P4308SC2MHGC Intel Server System R2216GZ4GCLX Intel Server System R2208GZ4IS Intel Server System R2208IP4LHPC Intel Server System R2308IP4LHPC
