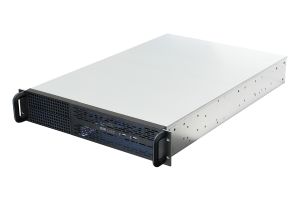

Norco RPC-270 Rackmount Server Chassis, NO PSU - 2U
  • Supports 6x 3.5" Drives And 2x 5.25" Drives, 4x 80mm Middle Fans
  • Supports EEB, CEB, ATX, mATX, Mini-ITX Motherboards

IMG 1 of 7
No Longer Available
Part Number:
219795
(?) Brand:
Norco Web Site
Manuf No:
RPC-270
RPC270
Shipping Weight:
23 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
RPC270, RPC-270
NORCO Black 2U Rackmount Chassis, Model RPC-270

Model: RPC-270

Features:

  • 2U rackmount design,meets EIARS-310C standard.
  • 2 x 5.25" drive bays, 6 x 3.5 " drive bays
  • Support EEB (12"x13"), CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6"), Mini-ITX (6.7" x 6.7") motherboard
  • 4 x 80mm ball bearing middle fans wall for better ventilation
  • Front USB ports
  • Support Standard ATX power supply, standard 2U power supply (W x H 3.94 x 2.76 inch),2U redundant power supply (W x H=3.98inch x 3.31inch)

Specifications:

  • Drive Bay: Supports six 3.5" drives and two 5.25" drives
  • Cooling Fan: 4 x 80mm middle fans
  • Switch: Power ON/OFF x 1, System reset x 1
  • Indicator:Power ON/OFF x 1, HDD x 1, NETWORK X 2
  • Connector:Two front USB ports
  • Motherboard Compatibility: Support EEB (12"x13"), CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6"), Mini-ITX (6.7" x 6.7")
  • Power Supply Options: Standard ATX power supply, standard 2U power supply (W x H 3.94 x 2.76 inch),2U redundant power supply (W x H=3.98inch x 3.31inch)
  • Dimensions ( W x D x H ): 19" x 25.5" x 3.5" (483mm x 650mm x 88mm)
  • Packing:Double boxes
  • Weight: 9.4 kg/20.7 lb (NET) 12 kg/26.5 lb (GROSS)
  • Environment Temperature:0/55 C, 32/131 F (Operating) -20/60 C, -4/140 F (Non-Operating)
  • Relative Humidity: 5% to 95%,non-condensing
  • Vibration ( 5-500 Hz ):1 Grms (Operating), 2 G (Non-Operating)
  • Shock : 10 G(with 11ms duration, half sine wave) (Operating), 30 G (Non-Operating)

No additional files, specification sheets, guides or documentation found for product.
