All stock codes associated to this product
SLM3870FW, SL-M3870FW, 8806085624689
SL-M3870FW
Overview
ProXpress M4070 | 3870 Series
Fast, professional-quality printers with lower operating costs
Features
Most businesses and small and home office (SOHO) companies increasingly require high productivity and lower operating costs from their printers. These businesses need printers that also are easy to use and versatile for printing a range of documents and presentations.
High speed printing & image processing
Robust ProXpress M4070 | 3870 series feature print speeds of up to 40ppm, powered by a Cortex-A5 core processor and up to 256MB of memory. High speed and performance enable businesses to accelerate document and image processing for increased efficiency.
40ppm is available on M4070FR model only.
38ppm is available on M3870FW and M3870FD models only.
Product dimensions may differ from image provided.

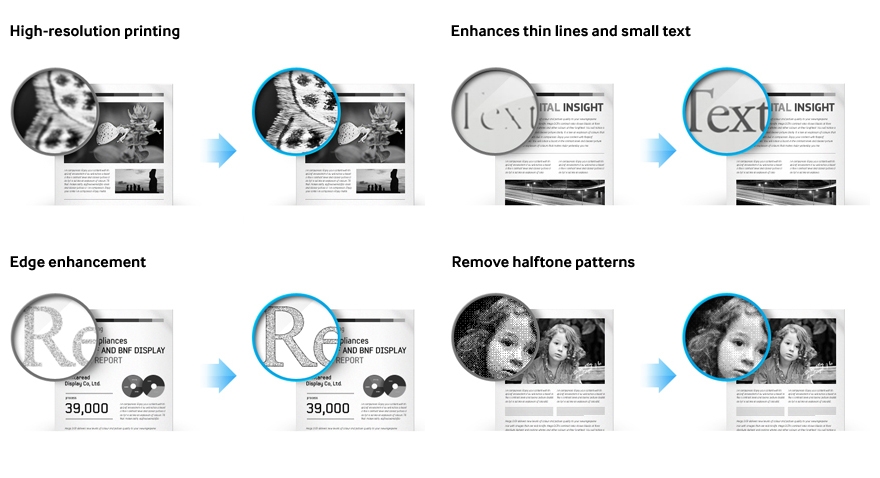

Higher-quality print output
ReCP technology improves readability of printed documents by enhancing thin lines and sharpening the edges of negative text. Small text that typically may not scan completely is sharpened through edge resolution enhancement. The ProXpress M4070 | 3870 series deliver sharp, solid prints and scans with effective output print resolutions of up to 1200 x 1200 dpi.

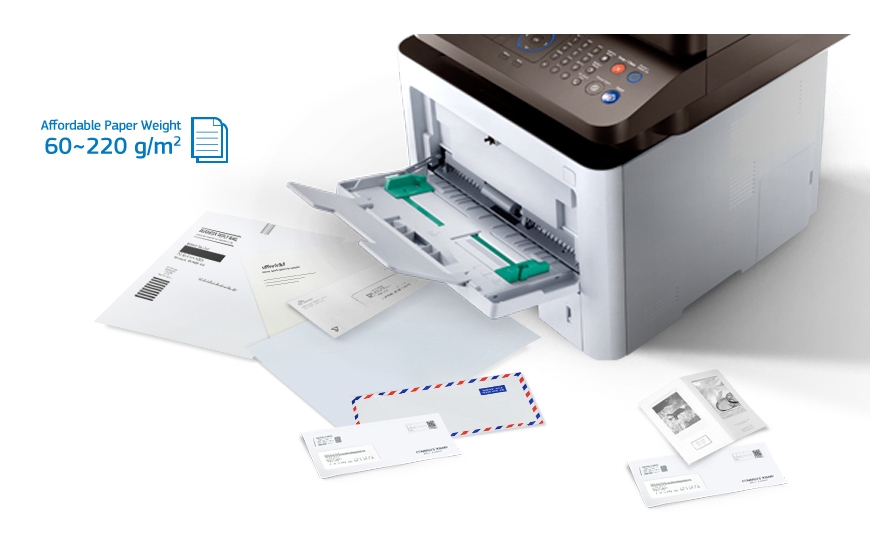

Additional printing choices for professional documents
The printers’ multipurpose tray supports media of up to 220gsm (grams per square meter) in weight, which offers more printing choices for professional documents. Numerous labels, cards and envelopes can be printed using the multi-purpose tray with ease. This ability virtually eliminates the time it takes to feed sheets one at a time.

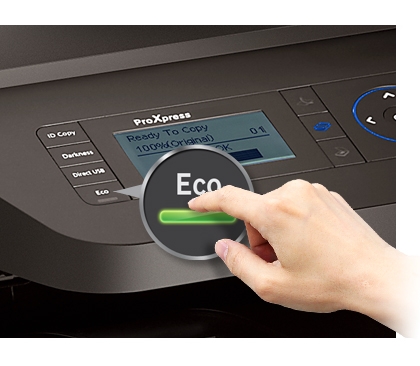

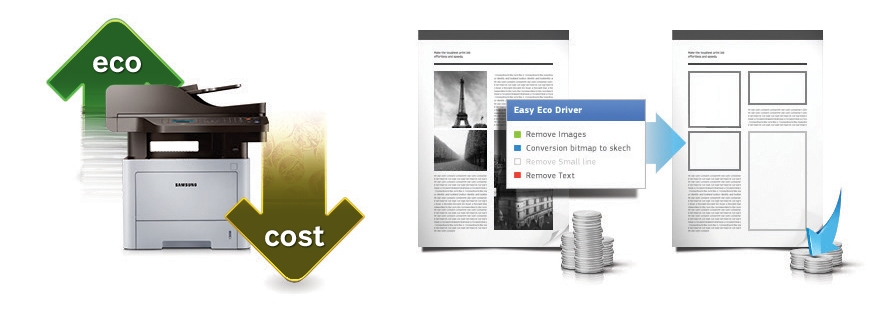

One Touch Eco button
Businesses can lower toner and paper usage with the One Touch Eco Button. The One Touch Eco Button automatically activates 2-up printing (two pages on the same side) and duplex printing (printing on both sides). Users can also choose the option to skip blank pages in the Toner Saving Mode. These eco settings can be adjusted using Easy Printer Manager.
Easy Eco Driver
Easy Eco Driver software, granted the 2012 Outstanding Achievement in Innovation award from Buyers Laboratory (BLI), saves users up to 20 percent on toner. The software also reduces energy consumption. Users have the option of removing images, converting them from bitmap to sketch, and removing text to save toner using the Toner Saving Mode.
Central print usage control to save more resources
Central print usage control, activated through the SyncThru™ Admin job accounting feature, enables managers to assign users to specific printers. Users can also be assigned quotas for the number of pages or copies they can make per printer.

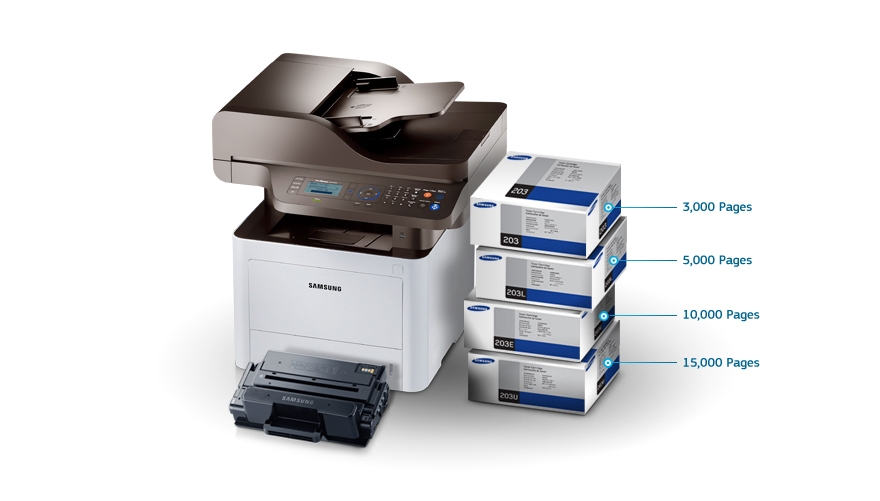

More toner options, more choices for cost reduction
ProXpress M4070 | 3870 series offers diverse laser toner cartridge options from standard-yield laser toner cartridges that typically yield 3,000 standard pages to ultra-high yield laser toner cartridges that can yield 15,000 standard pages, which meets every businesses’ needs for reducing cost per page. An integrated toner system contains the imaging unit and toner cartridge in one convenient package. This integrated toner system is the preferred choice for businesses with heavier printing volumes.
10,000 page yield toner cartridge is available on M3870 and M4070 series only.
15,000 page yield toner cartridge is available on M4070FR model only.
Product dimensions may differ from image provided.

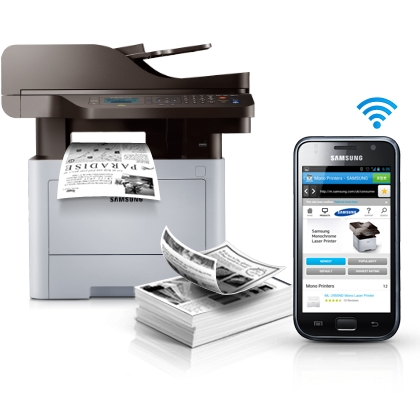

Convenient mobile printing optimised for various business environment
Samsung MobilePrint application helps employees wirelessly print from their mobile devices. Users do not need to install a new driver or configure network settings. Office workers can simply download the MobilePrint application from the Google Play store for Android and the Apple Store for iOS. After downloading the application, the mobile device automatically detects nearby, compatible Samsung printers. The ProXpress M4070 | 3870 series can handle almost any type of file, including text documents, images and web pages. Users can also access printers from a Google account using the Google Cloud Print. Emails, photos, PDF files and SNS messages, such as Facebook and Twitter posts, can be printed, faxed or shared. Google Cloud Print works on smartphones, tablets, notebooks, PCs and other web-connected devices.

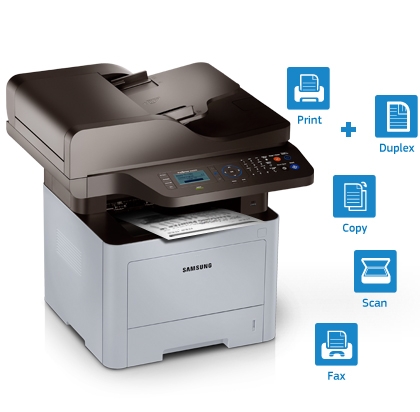

4-in1 Multifunction & built-in duplex printing
4-in-1 multifunctional (print, copy, scan and fax) capabilities and built-in duplex printing provide the versatility and convenience that businesses need to stay competitive.
Easy Printer Manager
Easy Printer Manager helps companies remotely control settings, such as the One Touch Eco Button features, and copy, scan and fax settings. Multiple devices can be monitored and managed using Easy Printer Manager. Businesses can also monitor printer status, such as error messages, including paper empty, toner empty and paper jam alerts.

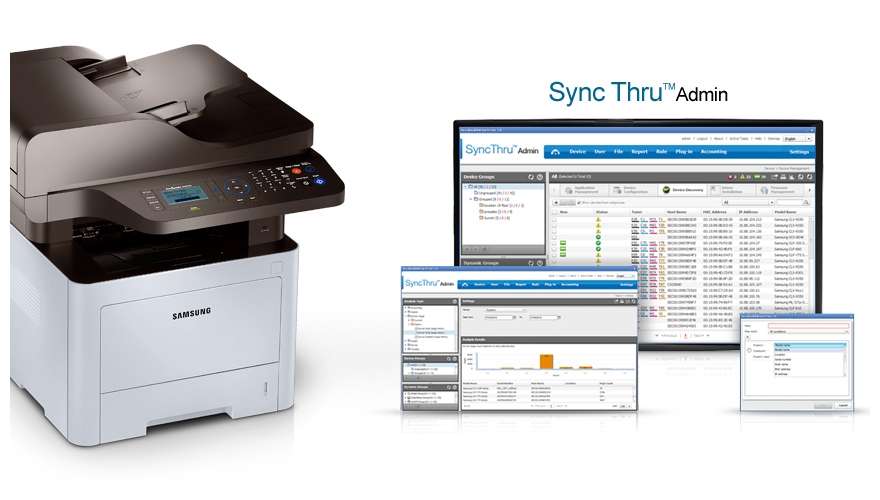

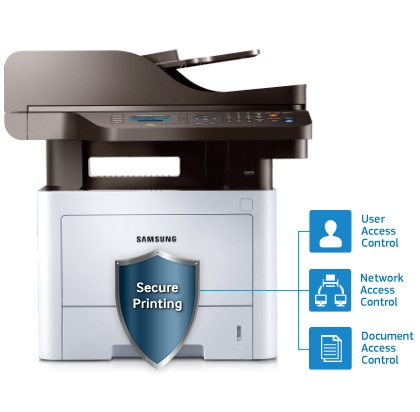

Enterprise-level document security
Businesses produce and print numerous official documents including confidential information, which requires high security on the printing jobs. ProXpress M4070 | 3870 series offer greater control of user, document and network access with Samsung SyncThru Admin at the enterprise security level.

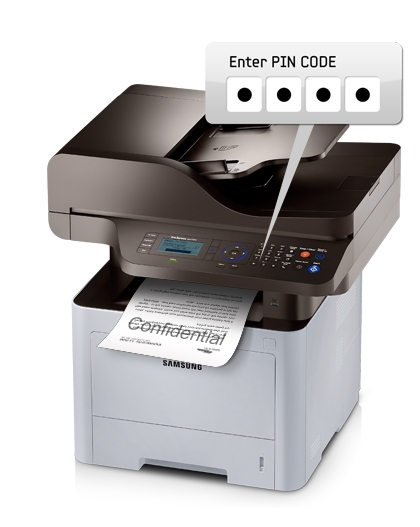

Easy secure printing
ProXpress M4070 | 3870 series features easy secure printing with built-in numeric key pad, which allows users to protect personal or confidential documents. When the feature is on, users are required to enter password in order to proceed the print job.
Configuration
Specifications:
General
| Functions |
Standard |
Print, Scan, Copy, Fax |
| |
Optional |
Eco Button, Secure Print, Wireless |
| Processor |
600MHz |
|
| Operational Panel |
4-Line LCD |
|
| Memory |
Standard |
256MB |
| |
Maximum |
512MB |
| Interface |
Standard |
Hi-Speed USB 2.0 / Ethernet 10 / 100 Base TX / Wirelss 802.11b/g/n / Direct USB |
| |
Optional |
IEEE 1284B Parallel Connector |
| Power consumption |
700 watts (Active) / 10 watts (Ready) / 1.6 watts (Wi-Fi Direct Off, Sleep), 2.8 watts (Wi-Fi Direct On, Sleep) |
|
| Noise Level |
Less than 57dBA (Printing) / Less than 58dBA (Copying) / Less than 26dBA (Standby) |
|
| Dimension (WxDxH) |
469.0 x 444.3 x 482.1mm (18.5 x 17.5 x 19.0 inch) |
|
| Weight |
17.07kg (37.6lbs) |
|
| Max. Monthly Duty Cycle |
Up to 80,000 pages |
|
Print
| Speed |
Speed (Mono) |
Up to 38ppm in A4 (40ppm in Letter) |
| First Print Out Time |
First Print Out Time (Mono) |
As Fast as 6.5 seconds (From Ready Mode) |
| Resolution |
Up to 1200 x 1200 dpi effective output |
|
| Emulation |
SPL / PostScript3 / PCL6 / PCL5e / IBM ProPrinter / EPSON / PDF |
|
| Duplex Print |
Built-in |
|
| Operating System |
Windons 8 / 7 / Vista / XP / 2008R2 / 2008 / 2003, Mac OS X 10.5 - 10.8, Various Linux / Unix |
|
| Direct Print Support |
Direct USB |
|
| Print features |
Automatic Double Sided Print, Secure Print |
|
Copy
| Speed |
Speed (Mono) |
Up to 38cpm in A4 (40cpm in Letter) |
| First Copy Out Time |
First Copy Out Time (Mono) |
Less than 10 seconds |
| Resolution |
Up to 600 x 600 dpi effective output |
|
| Reduce / Enlarge Range |
25 ~ 400% (platen), 25 ~ 400% (ADF) |
|
| Multi Copy |
1 ~ 99 pages |
|
| Duplex Copy |
Built-in |
|
| Copy Features |
ID Copy / 2-up / 4-up / Collation Copy / Auto-fit |
|
Scan
| Speed |
Speed (Mono) |
24ipm |
| Compatibility |
TWAIN Standard, WIA Standard |
|
| Method |
Colour CIS |
|
| Resolution (Optical) |
Up to 1200 x 1200 dpi |
|
| Resolution (Enhanced) |
Up to 4800 x 4800 dpi |
|
| Scan Destinations |
Client (PC), Email, FTP, SMB, USB |
|
Fax
| Compatibility |
ITU-T G3, ECM |
|
| Modem speed |
33.6Kbps |
|
| Resolution |
Standard: 203 x 98 dpi / Fine, Photo: 203 x 196 dpi Super Fine: 300 x 300 dpi / Colour: 200 x 200 dpi |
|
| Memory |
6MB (Max. 500 pages) |
|
| Auto Dial |
Speed dial: 200 Locations |
|
| Fax Feature |
On hook Dial / Auto Redial / Auto Reduction / Multi-send / Delayed Send / Fax forwarding (Email / Fax) / Broadcasting up to 209 locations |
|
Paper Handling
| Input Capacity |
Cassette |
250-Sheet Standard Cassette |
| |
Multipurpose tray |
50-Sheet Multi Purpose Tray |
| |
Other Options |
520-Sheet Second Cassette Feeder |
| |
Maximum |
820 Sheets |
| Media Type |
Cassette |
Plain / Thin / Recycled / Thick / Archive / Bond / Cardstock |
| |
Multipurpose tray |
Plain / Thin / Bond / Pre-printed / Recycled / Envelope / Transparency / Label / Cardstock / Thick / Cotton / Coloured / Archive / Thicker |
| |
Other Options |
Plain / Thin / Recycled / Thick / Archive / Bond / Cardstock |
| Media Size |
Cassette |
A4 / A5 / A6 / ISO B5 / JIS B5 / Executive / Letter / Oficio / Folio / Legal / Statement / Custom |
| |
Multipurpose tray |
A4 / A5 / A6 / ISO B5 / JIS B5 / Statement / Letter / Oficio / Folio / Legal / Envelope (No 10 / Monarch / DL / C5 / C6 / No 9) Postcard / Index card / Executive / Custom |
| |
Other Options |
A4 / A5 / A6 / ISO B5 / JIS B5 / Executive / Letter / Oficio / Folio / Legal / Statement / Custom |
| Media Weights |
Cassette |
60 - 163g/m (16 - 43lbs) |
| |
Multipurpose tray |
60 - 220g/m (16 - 58lbs) |
| |
Other Options |
60 -163g/m (16 - 43lbs) |
| Output Capacity |
150-sheet Face-Down, 1-sheet Face-Up |
|
| adf |
Type |
RADF |
| |
Document Capacity |
50-sheet |
| |
Document Size |
A4 / Letter / Oficio / Folio / Legal |
Consumables
| Toner |
Black |
Standard Yield: Average Cartridge Yield 3K standard pages. High Yield: Average Cartridge Yield 5K standard pages. Extra high Yield: Average Cartridge Yield 10K standard pages (Ships with 3K pages Starter Toner Cartridge) Declared Cartridge Yield in accordance with ISO / IEC 19752. |
Option
520-sheet Cassette Tray / Memory512MB / IEEE 1284B Parallel Connector
Solution
| Device Management |
Yes |
|
| Output Management |
Yes |
|
| Mobility |
Yes |
|
