All stock codes associated to this product
RPC12042013, RPC-1204-2013, RPC1204, RPC-1204

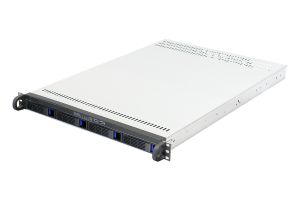

1U Rackmount Server Case w/ 4 Hot-Swappable SATA/SAS Drive Bays 650mm depth
Features:
- 4x hot-swappable SATA/SAS drive bays
- One internal SFF-8087 Mini SAS connector supports up to four 3.5" or 2.5" SATA/SAS hard disk drives;
- 1 x slim DVD-ROM bay,2 x 2.5" drive slots, 4 x 3.5 " hot-swappable drive bays
- Hot-swappable HDD tray with special designed power-off and lock mechanism.
- Support EEB (12"x13"), CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6"), Mini-ITX (6.7" x 6.7") motherboard
- Redundant power connectors
- RoHS Compliant
- 6x40mm ball bearing fans wall for better ventilation
- Two front USB ports
Specifications:
Drive Bay: 4 x hot-swappable SATA/SAS drive bays, 1 x slim DVD-ROM bay, 2 x 2.5" drive slots;
Cooling Fan: 6 x 40mm middle fans
Switch: Power ON/OFF x 1, System reset x 1
Indicator:Power ON/OFF x 1, HDD x 1, NETWORK X 2
Connector:Two front USB ports, one internal SFF-8087 Mini SAS connector, two 4-pin molex redundant power connectors.
Motherboard Compatibility: Support EEB (12"x13"), CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6"), Mini-ITX (6.7" x 6.7")
Power Supply Options: Standard 1U ATX power supply (W x H = 3.94 inch x 1.59 inch)
Dimensions ( W x D x H ): 19" x 25.5" x 1.7" (483mm x 650mm x 43.5mm)
Packing:Double boxes
Weight: 7.5 kg/16.5 lb (NET) 8.8 kg/19.4 lb (GROSS)
Environment Temperature:0/55 C, 32/131 F (Operating) -20/60 C, -4/140 F (Non-Operating)
Relative Humidity: 5% to 95%,non-condensing
Vibration ( 5-500 Hz ):1 Grms (Operating), 2 G (Non-Operating)
Shock : 10 G(with 11ms duration, half sine wave) (Operating), 30 G (Non-Operating)
