All stock codes associated to this product
Q6720B, 2414395, 886111644292
Large Format Photo Printers

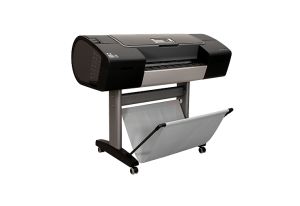

HP Designjet Z3200ps 24-in Photo Printer (Q6720B)
Overview
This 12-ink HP Designjet, with new HP 73 Chromatic Red ink, delivers long-lasting gallery-quality prints in black and white and color. It enables easy calibration and profiling with its embedded spectrophotometer and also delivers great ink efficiency.
Features:
Produce gallery-quality black-and-white, color prints
-
- This 12-ink HP Designjet, with HP 73 Chromatic Red ink, delivers long-lasting gallery-quality prints in black and white and color (up to 200 years)1.
-
- Create beautiful black-and-white prints with smooth transitions, deep blacks, and neutral grays with the HP Quad-black ink set.
-
- Get superior gloss uniformity and minimize bronzing on most glossy photo papers with HP Gloss Enhancer3.
-
- Enjoy an expanded color gamut which achieves 95% PANTONE coverage8 enabled by chromatic red ink.
-
- Over 50 HP papers, including photo, fine art, coated, and display-graphic printing materials.
-
Easily calibrate and profile with HP DreamColor Technologies
-
- Calibration and profiling are made simple with HP DreamColor Technologies and the embedded spectrophotometer2 which helps you generate custom ICC profiles in-house.
-
- Simplify workflows: easily access, create, and share paper presets7 using the enhanced HP Color Center.
-
- Create a customized PANTONE simulation swatchbook5 with HP Professional PANTONE Emulation.
-
Enables productive operation and great ink efficiency
-
- Print rich, dark blacks on matte and glossy papers without swapping ink cartridges.
-
- Save time and money: embedded TIFF, JPEG, and Adobe PS3/PDF RIP enables direct job submission, queueing, and nesting5.
-
- Optimize performance and get great ink efficiency6 with automatic servicing routines. An Optical Drop Detector (ODD) prevents nozzle clogging, printing errors, and media waste.
-
- Efficiency-enhancing features include an HP Embedded Web Server and print previews which mean no trial and error.
Specifications:
- Model size
- 24 in
- Functions
- Print
Speed specifications Speed specifications
- Print time color image ISO N5 (best, D glossy paper)
- 12.4 min/page
- Print time color image ISO N5 (normal, D glossy paper)
- 7.2 min/page
- Print time color image ISO N5 (draft, D coated paper)
- 2 min/page
- Print time color image ISO N5 (normal, D coated paper)
- 3.8 min/page
Memory specifications
- Memory, standard
-
- Hard disk
-
Technical specifications
- Print quality (best)
- Color:Up to 2400 x 1200 optimized dpi
Black:Up to 2400 x 1200 optimized dpi
- Print technology
- HP Thermal Inkjet
- Number of print cartridges
- 12 (blue, green, magenta, red, yellow, gray, photo black, matte black, light cyan, light gray, light magenta, gloss enhancer)
- Compatible ink types
-
- Non-printable area (cut-sheet)
- 0.2 x 0.67 x 0.2 x 0.2 in
- Guaranteed minimum line width
- 0.0022 in (ISO/IEC 13660:2001(E))
- Line accuracy
- +/- 0.2%
- Color accuracy
- Median < 1.6 dE2000, 95% of colors < 2.8 dE2000
- Color stability
- < 1 dE2000 in less than 5 minutes
- Print repeatability
- Average < 0.5 dE2000, 95% of colors < 1.4 dE2000
- Maximum optical density (black)
- 4 L* min/2.5 D (with HP Premium Instant Dry Photo Gloss media with Original HP inks)
Paper handling
- Finished output handling
-
- Sheet feed
- roll feed
- media bin (NA, LAR, EMEA)
- automatic cutter (cuts all media except canvas)
- Media types
- Photographic (satin, gloss, semi-gloss, matte, Baryte paper ), proofing (semi-gloss, high-gloss contract, semi-gloss contract, matte), fine art printing material (smooth, textured, watercolor, satin, aquarella, litho-realistic, canvas), self-adhesive (indoor, vinyl, polypropylene), banner and sign (display film, indoor banner, scrim, polypropylene, Tyvek, outdoor, billboard, PVC-free), bond and coated (bond, coated, heavyweight coated, super heavyweight plus matte, colored), technical (tracing, translucent bond, vellum), film (clear, matte, polyester), backlit, fabric/textile (flag, polyester, silk)
- Media weight, recommended
- 133 lb
- Media sizes standard (sheets, rolls)
-
- 8.3 to 24-in wide sheets
- 11 to 24-in rolls
- Roll maximum output
- 300 ft
- Roll external diameter
- 5.3 in
- Media thickness
- Up to 31.5 mil
Connectivity
- HP ePrint capability
- No
- Connectivity, standard
-
- Gigabit Ethernet (1000Base-T)
- Hi-Speed USB 2.0 certified
- EIO Jetdirect accessory slot
- Print languages
-
- Adobe PostScript 3
- Adobe PDF 1.6
- TIFF
- JPEG
- HP PCL 3 GUI
- Compatible operating systems
-
- Microsoft Windows 7 Ultimate/Professional/Home Premium, Windows Vista Ultimate/Business/Home Premium, Windows XP (32-bit, 64-bit) Professional/Home, Windows Server 2008 (32-bit, 64-bit), Windows Server 2008 R2, Windows Server 2003 (32-bit, 64-bit)
- Mac OS X v 10.4, v 10.5, v 10.6, v 10.7
- Citrix XenApp
- Citrix XenServer
Power and operating requirements
- Power consumption
- < 170 watts (printing), < 31 watts (ready), < 12 watts (< 30 watts with embedded Digital Front End) (sleep), 0.1 watts (off)
- Energy efficiency
-
- Operating temperature range
- 41 to 104F
(5 to 40C )
- Operating humidity range
- 20 to 80% RH
Dimensions and weight
- Minimum dimensions (W x D x H)
- 49.7 x 27.2 x 41.2 in
- Weight
- 143 lb
What's included
- Warranty
- One-year warranty with on-site, next business-day service
- What's in the box
-
- HP Designjet Z3200 Photo Printer
- spindle
- printheads
- introductory ink cartridges
- Original HP media roll
- printer stand and media bin (not in AP)
- rear tray
- 3-in core adapter
- quick reference guide
- setup poster
- USB cable
- power cord
- HP Start-up kit including printer software
- Software included
-
- Printer drivers
- HP Printer Utility including HP Color Center
