All stock codes associated to this product
CC9011035WW(750D), CC-9011035-WW(750D), CAC750D, 843591043786
Obsidian Series 750D Full Tower ATX Case
Case Expansion Slots: 9
Case Motherboard Support: Mini ITX, Micro ATX, ATX, E-ATX, XL-ATX
Overview
The full tower Obsidian case for great-looking high performance PCs

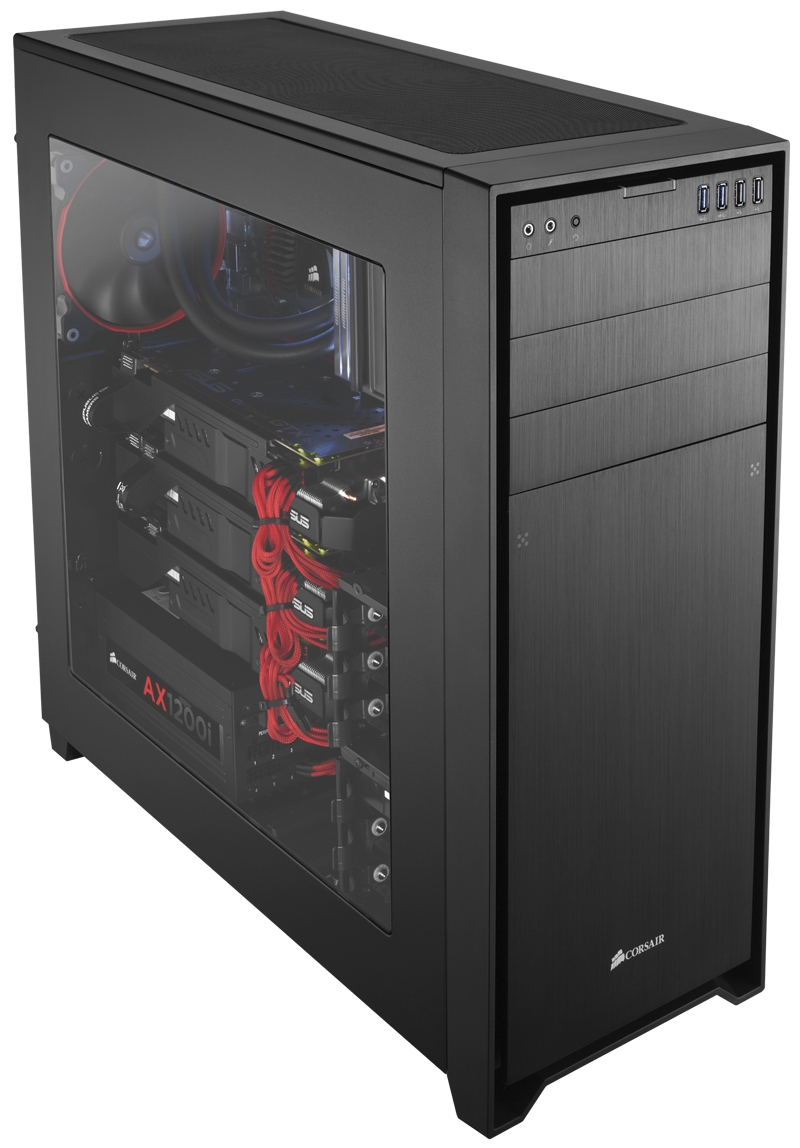

The Obsidian Series 750D full tower PC case combines generous expansion flexibility, room for advanced cooling options, and an interior thats optimized for fast and easy builds and upgrades. It has a clean, elegant exterior that dispenses with arbitrary plastic add-ons in exchange for the beauty of brushed aluminum and solid steel. This rigid, rugged exterior surrounds a frame that has ample room for high-performance components and the sophisticated cooling youll need if youre going to push those components to their limits. And, it incorporates a host of clever system builder-focused features, because building a system should be straightforward, trouble-free, and even fun.
The room you need when you’re getting serious
Nine PCI-E expansion slots support double and triple GPUs. There’s room for up to ten drives, and four USB ports on the brushed aluminum front panel.
Your system. Your cooling.

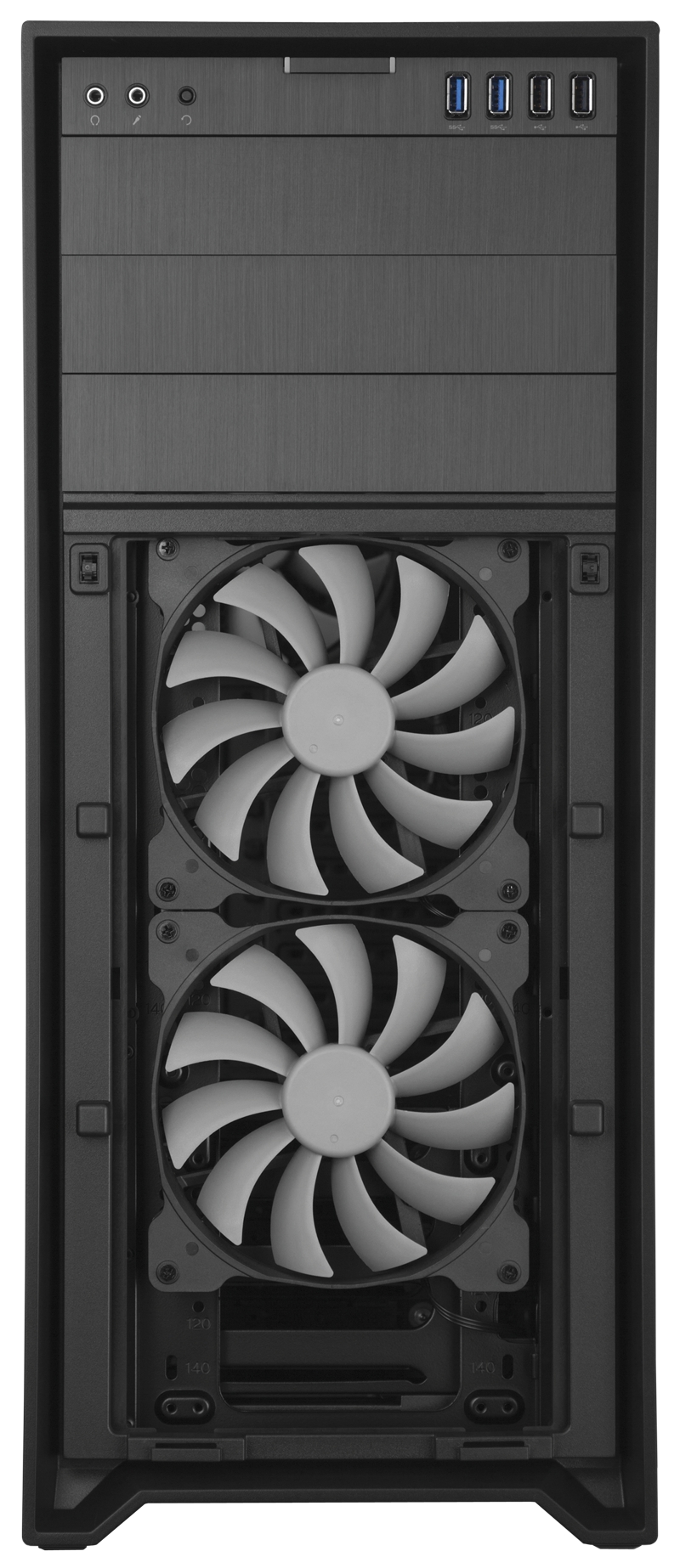

The three included Corsair AF140L high-airflow 140mm intake and exhaust fans are custom engineered to deliver excellent airflow with less unnecessary turbulence and noise. You can mount up to eight fans, with room for dual radiators on the bottom, front, and top.
Take control of your storage

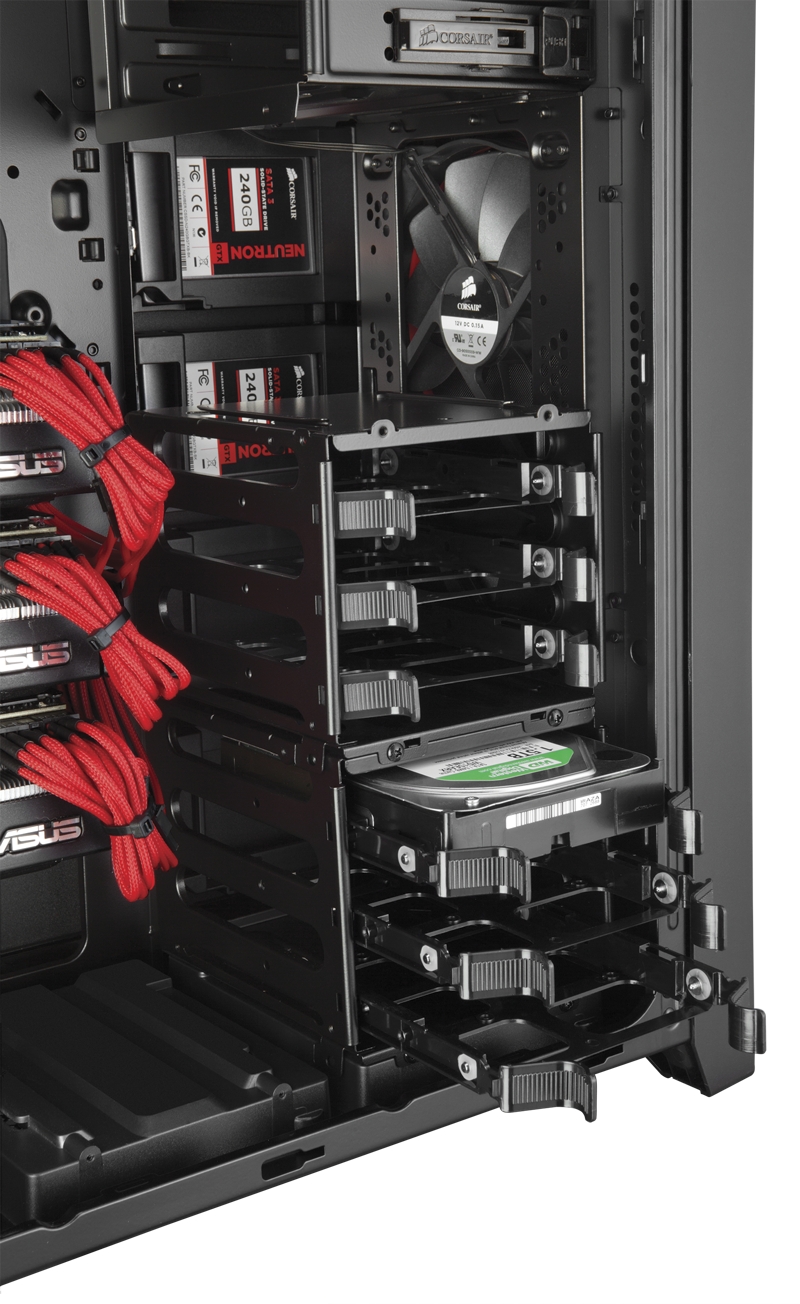

There are four separate mounting locations for the drive cages, and if you’re moving to 100% solid-state, you can remove the 3.5” cages entirely and use the four side-mounted 2.5” cages.
Designed for fast, straightforward builds

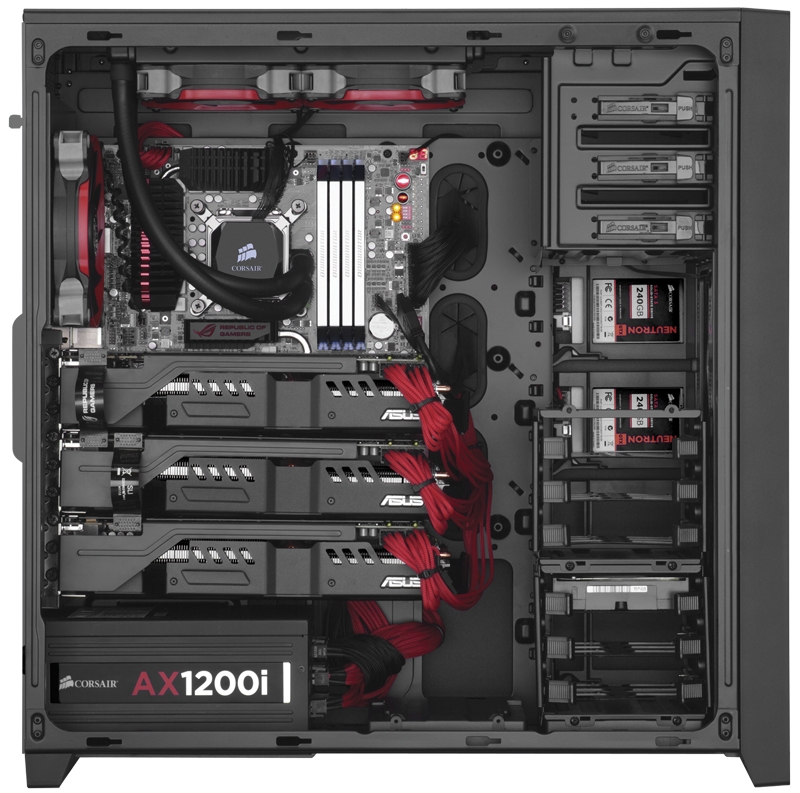

The side panels and expansion slots use thumb screws, and storage installation is tool-free. A center-post standoff holds the motherboard in place while you secure it, and the dust filters are easily accessible and removable. Our innovative cable routing system has multiple cutouts with rubber grommets for superior airflow and a cleaner look, and the CPU backplate cutout lets you install or upgrade your CPU cooling without removing the motherboard.
Contents and Specifications
Package contents
- Obsidian Series 750D Full Tower ATX Case
- Quick Start Guide
Compatibility
- E-ATX, ATX, Micro ATX, XL-ATX and Mini ATX motherboards
Technical specifications
- Generous expansion room for building high-performance systems
- Beautiful brushed aluminum fascia makes an elegant design statement
- Full side panel window to view your components
- Tool-free SSD, Hard Drive, and Optical Drive installation
- Includes three AF140L fans, with room for up to eight fans
- Modular drive cage system for highly customizable layouts
- Two modular drive cages house three 3.5 or 2.5 drives each
- Four tool-free dedicated SSD cages, sideways mounted
- Radiator and fan compatibility compatibility:
- Top: 3 x 120mm or 2 x 140mm
- Front: 2 x 140mm or 2 x 120mm (2 x 140mm included)
- Bottom: 2 x 120mm
- Rear: 1 x 140mm or 120mm (140mm included)
- Two USB 3.0 and two USB 2.0 front panel connectors, plus headphone and microphone
- Easily accessed front, top, and PSU dust filters
- Excellent cable routing with rubber grommets for clean builds
- Nine expansion slots for multiple PCI-E devices or large motherboards
- Maximum CPU Cooler Height 170mm
- Maximum GPU Length 450mm
Specifications:
Tech Specs
Warranty" Two years
Case Form Factor: Full-tower
Dimensions: 560mm x 235mm x 546mm
Case Motherboard Support: Mini ITX, Micro ATX, ATX, E-ATX, XL-ATX
Maximum GPU Length: 450mm
Maximum CPU Cooler Height: 170mm
Maximum PSU Length: 220mm
Case Drive Bays
(x3) 5.25in
(x6) Combo 3.5in/ 2.5in
(x4) 2.5in
Case Material: Brushed aluminum and steel
Case Power Supply: ATX (not included)
External Connections
(x2) USB 2.0
(x2) USB 3.0
(x1) Headphone Port
(x1) Microphone Port
Fan Mount Locations
Front: (x2) 120/140mm
Top: (x3) 120mm or (x3) 140mm
Rear: 120/140mm
Bottom: (x2) 120mm
Fans Included
Front: (x2) 140mm
Rear: (x1) 140mm
Radiator Mount Locations
Front: 240/280mm
Top: 240/280/360mm
Rear: 120/140mm
Bottom: 120/240mm
Compatible Corsair Liquid Coolers: H55, H60, H75, H80i, H90, H100i, H105, H110
