All stock codes associated to this product
8CP530212WWB, 8C-P530212-WWB, CSNZP530B

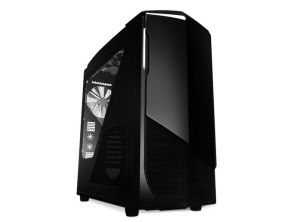

Phantom 530
Full Tower
Colour: Black
Features
Introducing the Phantom 530
In 2010, NZXT introduced the industry to its Phantom chassis, an aggressively designed, feature-filled case for mainstream users, gamers and enthusiasts alike. Now, NZXT is finally ready to unveil its direct successor, the Phantom 530.
Continuing the legacy of the original, the new Phantom was meticulously designed from the ground up for a refreshing new design that is uncompromising in every way. While creating the Phantom 530, the NZXT design team painstakingly took every beloved aspect of the original and made it even better.

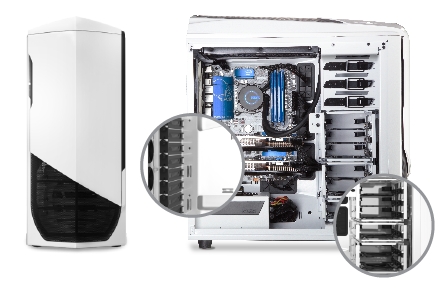

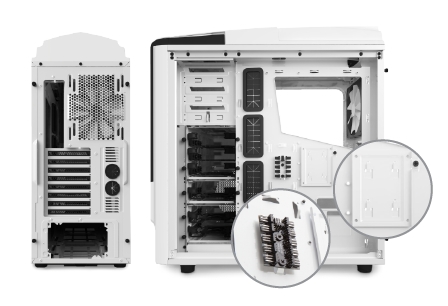

The Phantom 530 introduces 2013 features to its signature design, including: fully modular hard drive cages, a discrete SSD mount behind the motherboard tray, NZXT's signature rear I/O LEDs, a single channel 30W fan controller with integrated 10-port fan hub and steel 5.25" optical drive latches.
Now with up to 70% more cable management space than the original, more airflow and even more liquid cooling support, the Phantom 530 features phenomenal support for even the most
extreme performancebuilds.
The Phantom 530 introduces 2013 features to its signature design, including: fully modular hard drive cages, a discrete SSD mount behind the motherboard tray, NZXT's signature rear I/O LEDs, a single channel 30W fan controller with integrated 10-port fan hub and steel 5.25" optical drive latches.
Now with up to 70% more cable management space than the original, more airflow and even more liquid cooling support, the Phantom 530 features phenomenal support for even the most extreme performancebuilds.
Features
- Single channel, 30W fan controller with integrated fan hub
- Up to three 200mm fans for maximum airflow
- Discrete SSD mount behind motherboard tray
- 34mm of cable management clearance
- Fully modular, interchangeable hard drive cages

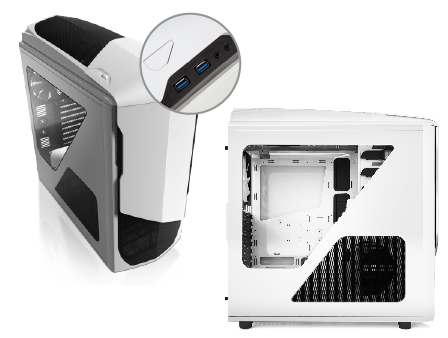

- Signature rear I/O LEDs + Latest USB 3.0 connection
- Large acrylic window
- Extensive liquid cooling support includes Kraken X40/X60 all-in-one solutions and radiators of up to 360mm in size
- Durable steel constructed 5.25 optical drive latches
- Eight motherboard expansion slots offer comprehensive expandability
Tech Spec.
|
Size
|
Full Tower |
| Model Number |
CA-PH530-W1 White
CA-PH530-B1 Black
CA-PH530-R1 Red |
| Drive Bays |
External 5.25" x 3
Internal 3.5" /2.5": 6
Internal 2.5": 1 + 6 |
| Cooling System |
Front 2x140mm/ 120mm or 1x200mm
(1 x 200mm included)
Rear 1x140mm (included) / 120mm
Bottom 2x120mm
Side 1x140mm
Top 2x200mm/ 140mm or 3x120mm
Interior 1x120mm/140mm |
| Clearance |
CPU Cooler 282mm (With Pivot Fan)
VGA Card 310mm (With Cage)/ 444mm (Without Cage)
Cable Management 26mm (Lowest Point)/ 34mm (Highest Point) |
| Dimensions |
235mm x 572mm x 543mm |
| Material |
Steel, Plastic |
| Motherboard Support |
ITX, Micro-ATX, ATX, EATX (322x272mm) |
| Expansion Slots |
8 |
| External Electronics |
1 x Audio / Mic
2 x USB 3.0 |
| Product Weight |
10.5 kg |
| Warranty |
2 Years |
