All stock codes associated to this product
CC9011038WW(230TORG), CC-9011038-WW(230T-ORG), 843591043755

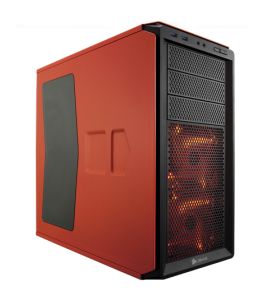

Graphite Series 230T Windowed Compact Mid Tower Case - Rebel Orange
SKU# CC-9011038-WW
Overview
Fast and straightforward system building, by design.
At Corsair, we believe that no matter your budget, building your own PC should be easy, and have great looking results. Choose the Graphite Series 230T, and the only time youll need a screwdriver is for attaching the motherboard. Your own custom-built PC will have a look thats aggressive, yet refined, with up-front USB 3.0 and headset connectors for quick access. Add to that dual front intake LED fans for great cooling potential. Whether youre building a gaming PC or just a replacement for a boring office-grade box, you can enjoy the unique pride of ownership that comes from a great-looking system that youve built yourself.
Leading-edge styling
Graphite Series cases meet at the intersection of high performance and dramatic design. The front intake fans are bathed in soft LED light, and the sculpted exterior helps you build a fast system that looks fast, too.
Flexible cooling potential
The 230T comes with dual 120mm front intake fans with LED lighting, and a rear 120mm exhaust fan. There’s room to add two 120mm or 140mm fans on the top, and a 120mm or 140mm fan on the bottom.
Easy system builds, maintenance and upgrades
The side panels, PCI-E expansion slots, and drive bays are all tool-free. Cable routing cutouts are provided for clean-looking builds and better airflow, and there’s a CPU cutout to allow for cooling upgrades without removing the motherboard. The intake fan filters help keep dust out of the interior, and they’re easy to remove for cleaning.
Dedicated SSD bays
The 230T offers four 2.5” drive bays for solid-state storage. That’s in addition to the four 3.5” bays and three 5.25” optical drive bays.
Seven PCI-E expansion slots
There’s room for multi-GPU setups for powerful gaming systems. The slots are tool-free, so swaps and upgrades are quicker.
Contents and Specifications
Package contents
- Graphite Series 230T Compact Mid Tower Case
- Quick Start Guide
- Accessories box with screws, zip ties, and other mounting hardware
Compatibility
- Mini ITX, Micro ATX, ATX motherboards
Technical specifications
- Dual 120mm front LED fans and rear 120mm exhaust fan
- USB 3.0 front panel
- Tool-free SSD, HDD, and ODD installation
- Cable routing and CPU cooler backplate motherboard cutouts
- Seven PCIe slots with thumbscrews and room for GPUs 320mm long
- Install up to four 3.5 and four 2.5 drives simultaneously tool free
- Up to six fan mounts for optimal cooling potential
- Dust filters for front and PSU intake
- Room for up to 200mm ATX PSU (not included)
Specifications
- Warranty: Two years
- Dimension: 505 x 210 x 440mm
- MB Support: ATX, Micro ATX, Mini ITX
- Expansion Slots: 7
- Form Factor: Mid-tower
- Material: Angular, steel aesthetic panels with high airflow plastic front fascia
- Drive Bays: (4) 2.5 (4) 3.5 (3) 5.25
- Cooling Front: (x2) x 120mm (included, with LEDs) Top: (x2) x 140/120mm Rear: (x1) x 120mm (included, no LEDs) Bottom: (x1) x 140/120mm
- Front I/O: (x2) USB 3.0
- Power Supply: ATX (not included)
