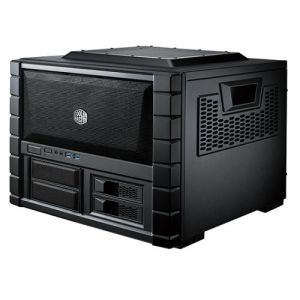

CoolerMaster HAF XB EVO Micro-Tower Case - NO PSU, Black
  • 2xUSB3.0, 1xAudio, 2x120mm Fan, Top-Window, Steel, Polymer, Mesh Front Bezel, ATX

IMG 1 of 1
No Longer Available
Part Number:
230455
(?) Brand:
CoolerMaster Web Site
Manuf No:
RC-902XB-KKN2
RC902XBKKN2
Shipping Weight:
10 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
RC902XBKKN2, RC-902XB-KKN2, CACMHAFXBII, CACM-HAFXBII, 4719512046241

HAF XB EVO


  • Quickly and easily transforms into a test bench ideal for enthusiasts and overclockers
  • Two durable XtraFlo fans included in the frontfor powerful airflow; also supports 240mm radiators
  • Supports tower CPU coolers up to 180mm tall and high-end graphics cards up to 334mm long
  • Supports up to 4 HDDs or SSDsthrough removablecages
  • Motherboard tray can be removed for easier installation or removal of components
  • Dual USB 3.0 SuperSpeed ports and X-Dock bays in the front for lightning fast plug-n-play I/O
  • Rigid carry handles for transportation

Features

  • Dual USB 3.0 Support
  • Rigid carry handles on the side panels
  • Supports two 3.5" or 2.5" hard drives in the HDD cage
  • Removable M/B tray makes installation easier
  • Two X-dock bays
  • (3.5" / 2.5" hard drives)
  • Slide-out dust filter for easy maintenance

Cooling

  • Mesh top panel for excellent ventilation
  • Supports an optional 200mm fan at the top
  • Supports 240mm radiators in the front
  • Supports a 120mm fan or 120mm radiators in the rear
  • Includes two XtraFlo 120mm fans for high airflow
  • Supports two optional 80mm fans to exhaust more heat

Airflow

  • Top: 200mm fan x 1 (optional)
  • Front: 120mm XtraFlo fan x 2, 1200 RPM, 17 dBA (installed), or 140mm fan x 2 (optional)
  • Rear: 120mm fan x 1, or 80mm fan x 2 (optional)

More Information

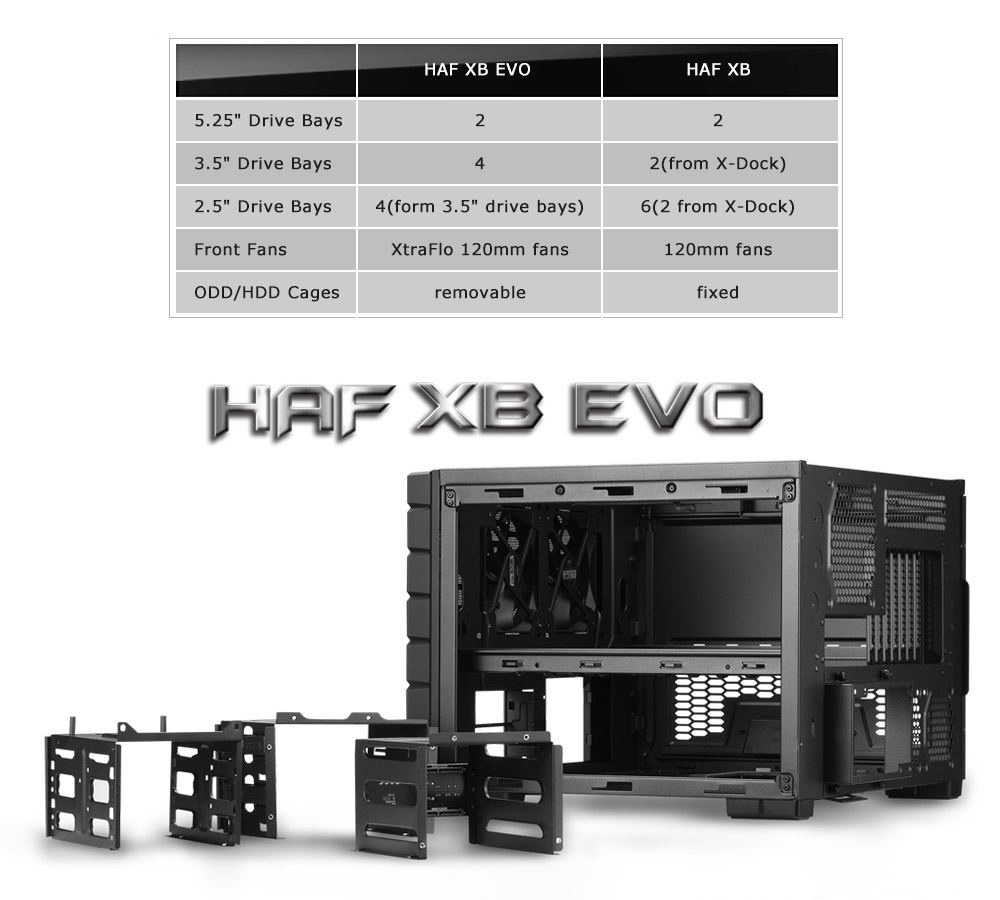

COMPARISON


Specifications

Model RC-902XB-KKN2 (mesh version), RC-902XB-KWN2 (windowed version)
Materials Steel, polymer, mesh front bezel

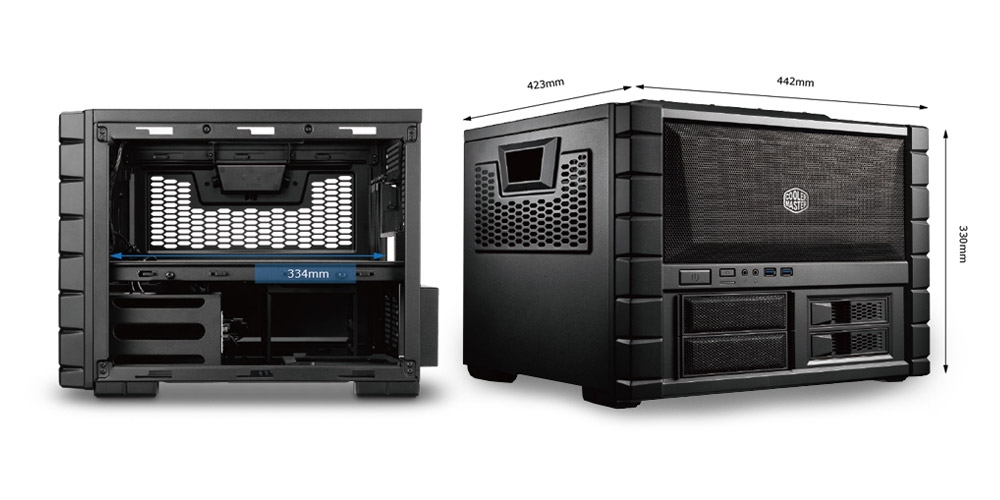

Dimensions (W x H x D) 442 x 330 x 423mm / 17.4 x 13 x 16.7 inch
Net Weight 8.2 kg / 18.1 lbs
M/B Type Mini-ITX, microATX, ATX
5.25" Drive Bays 2
3.5" Drive Bays 4
2.5" Drive Bays 4(from 3.5" drive bays)
I/O Panel USB 3.0 x 2 (internal)
Audio In & Out x 1 (supports HD Audio)
Expansion Slots 7
Air Cooling System Top: 200mm fan x 1 (optional) - formesh version(RC-902XB-KKN2) only
Front: 120mm XtraFlofan x2 (installed; 1200 RPM, 17 dBA), or 140mm fan x 2 (optional)
Rear:12mm fan x 1 or 80mm fan x 2(optional)
Liquid Cooling System Front: 240mm radiator x 1 (optional)
Rear: 120mm radiator x 1 (optional)
Power Supply Type Standard ATX PS2 (The max. length of PSU: 180mm / 7.1 inch)
Maximum Compatibility VGA card length: 334mm / 13.1inch
CPU cooler height: 180mm / 7.1inch

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (CoolerMaster) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
