All stock codes associated to this product
HAF915FKKN1, HAF-915F-KKN1, CSCOHAF915FKKN1
HAF Stacker 915F
- Expandable m-ITX chassis; modular design compatible with HAF Stacker system
- Stack extra 915F or 915R for dual/triple system or additional water cooling and storage
- Front mounted design includes power cable pass-through for improved cable management
- M-ITX Chassis supporting long graphics card, standard PSU (front mount) and water cooling
- Supports larger tower CPU coolers (i.e. Hyper 212+)
- Greater storage expandability with optional drive bay accessories
- Dust filters for top and bottom
HAF Stacker
Stack Up. Stack On.
HAF Stacker - the first expandable system that allows externally modular upgrades. The HAF 915F/R is a Mini-ITX case with removable top and bottom for additional stacking. Support of up to 360mm radiators in the stacking mode makes HAF 915F/R a powerful liquid cooling solution for system building enthusiasts.
FEATURES
- Supports up to 360mm radiators and multiple 140mm fans on both side panels
- Dual USB 3.0
- One 120mm fan included in the rear
- Supports up to 2 HDDs/SSDs by the brackets
- Rubber grommet helps to connect the PSU SATA cable for additional stacking
- Top & feet can be removed for additional stacking

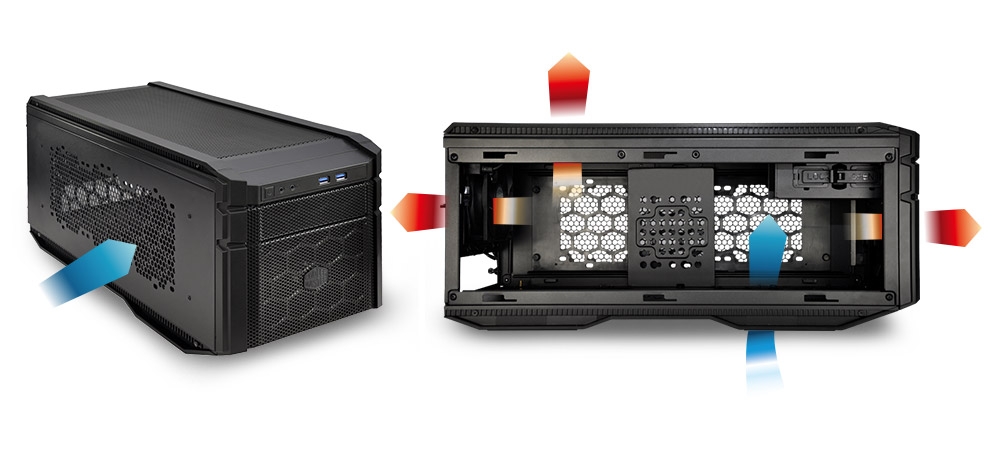

AIRFLOW
Rear: 120mm fan x 1 (installed)
Side: 120mm fan x 6 / 140mm fan x 4 (optional)
Radiators: individual mode - 120mm x 1 (optional) - rear; stacking mode - 120/140/240/280/360mm x 2 (optional) – side panel
MORE INFORMATION

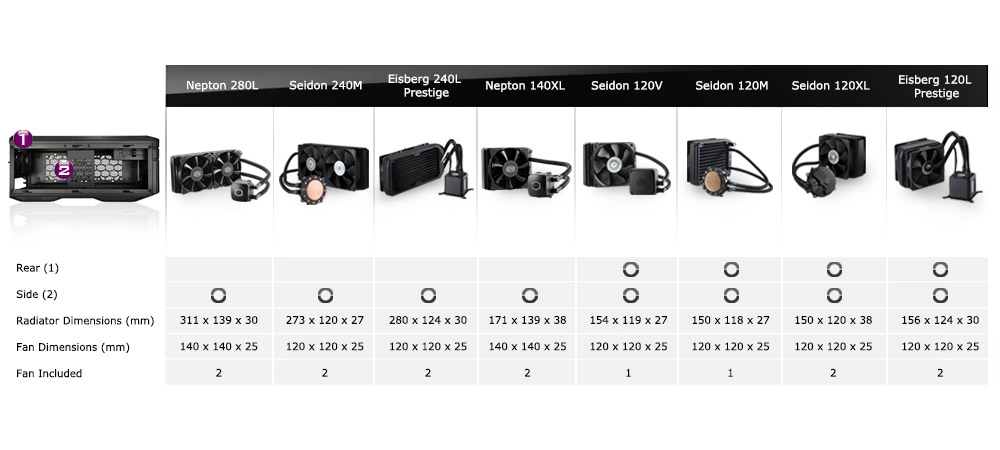

LIQUID COOLING COMPATIBILITY LIST
Specifications:
| Model Number |
HAF-915F-KKN1 |
| Available Color |
Midnight Black |
| Materials |
Bezel: mesh, polymer; Case body: Steel SGCC (t0.7) |

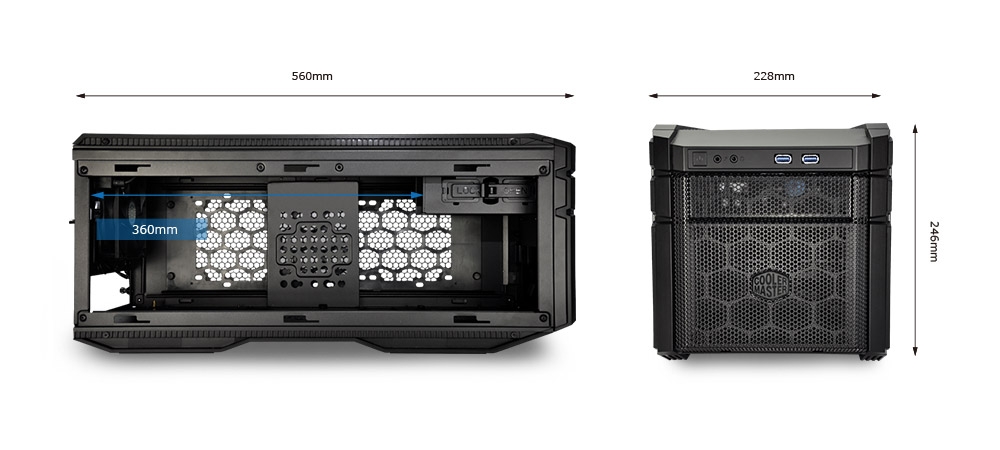

| Dimensions (W x H x D) |
228 x248 x 578mm / 8.9 x9.7 x22.7 inch |
| Net Weight |
5.2kg / 11.5 lbs |
| M/B Type |
Mini-ITX |
| 5.25" Drive Bays |
1 |
| 3.5" Drive Bays |
3 (1 from ODD bay) |
| SSD Bays |
3 (1 from ODD bay) |
| I/O Panel |
USB 3.0 x 2, Audio In & Out |
| Expansion Slots |
2 |
| Air Cooling System |
Rear: 120mm fan x 1 (installed)
Side: 120mm fan x 6 / 140mm fan x 4 (optional) |
| Liquid Cooling System |
Individual mode: 120mm x 1 (optional) - rear
Stacking mode: 120/140/240/280/360mm x 2 (optional) - side panel |
| Power Supply Type |
Standard ATX PS2 (front mounted) |
| Maximum Compatibility |
VGA card length: 360mm / 14.2 inch
CPU cooler height: 170mm / 6.7 inch |
