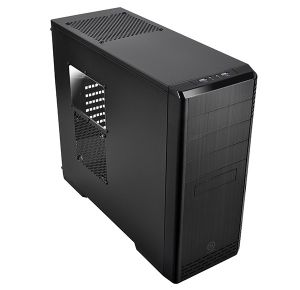

ThermalTake Urban R21 Mid-Tower Case - NO PSU, Black
  • 5.25" Bay(3), 3.5" HDD(1), 3.5" HDD(5)/2.5" SSD/HDD(1)(Hidden), USB3.0(2), HD-Audio(1), 120mm Fan, ATX

IMG 1 of 8
No Longer Available
Part Number:
311583
(?) Brand:
ThermalTake Web Site
Manuf No:
CA-1A6-00M1WN-00
CA1A600M1WN00
Shipping Weight:
20 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
CA1A600M1WN00, CA-1A6-00M1WN-00, CASECA1A600M1WN, CASE-CA1A6-00M1WN
Overview

Thermaltake Urban R21 mid-tower chassis

The unique individual defined by details- Urban R21, has a simple and sleek metal brushed front door in the front to mask the 3 ODD and 6 HDD drive bays, above the door front-top I/O ports including 2 of SuperSpeed USB 3.0 to grant ease and quickness in the need of data transfers, a side window opening panel to take an instant glance of the interior, heightened foot-stand and a preinstalled 120mm fan to optimize interior airflow, pre-mounting holes to support motherboards up to standard ATX and CPU cooler installation.

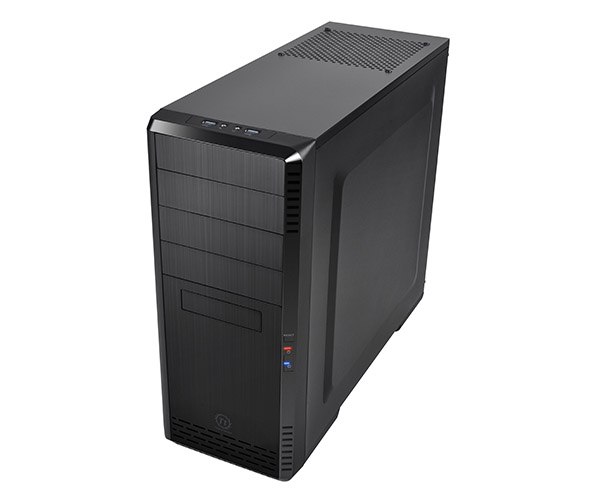

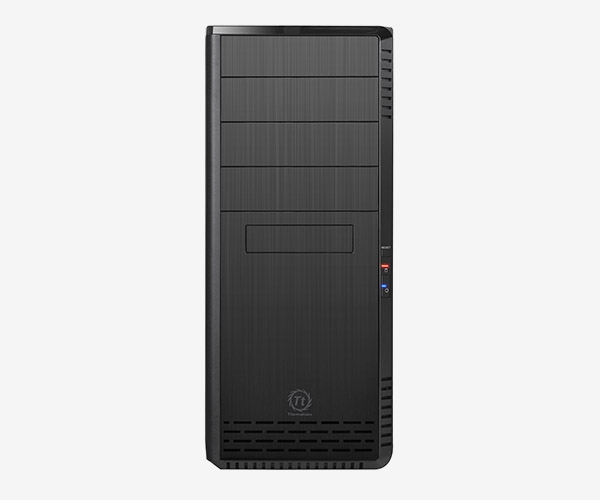

Simple Design

Using brushed metal front panel to mask the extrusive drive devices, not only unify the appearance, but also provide a simple yet elegant aesthetic.


Handy I/O ports

The top-front panel has implemented two of latest data transfer SuperSpeed USB 3.0 ports, a HD microphone and headset jacks, to grand direct access when needed.

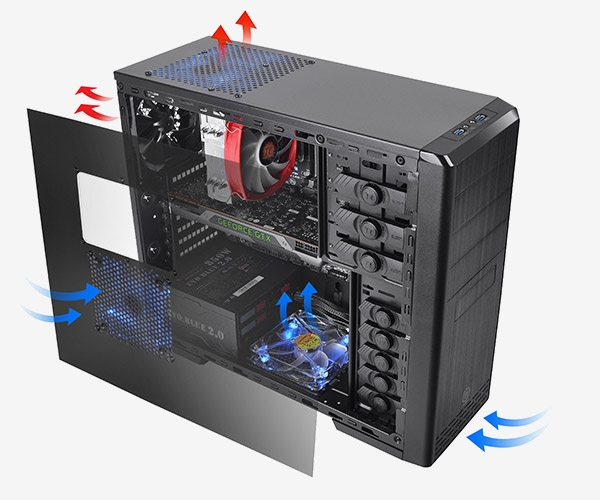

Optimized Ventilation

One preinstalled 120mm fan to optimize system ventilation. Plus pre-mounted hole for more ventilation options

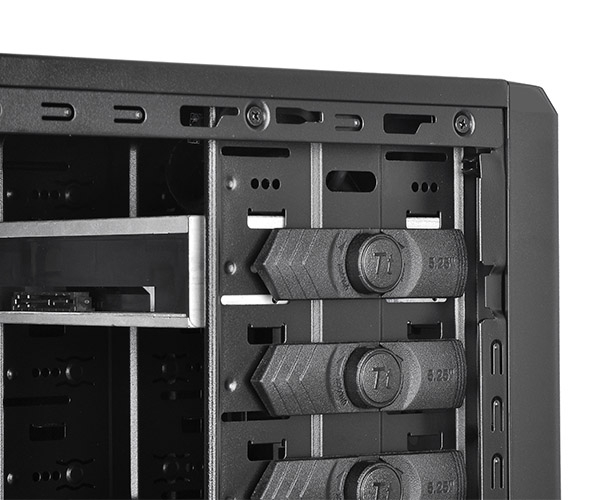

Tool-free Innovation

Innovative 5.25 &.5 tool-free drive bay design minumized the hassels of installing ODD and HDD devices.


Convenient Support

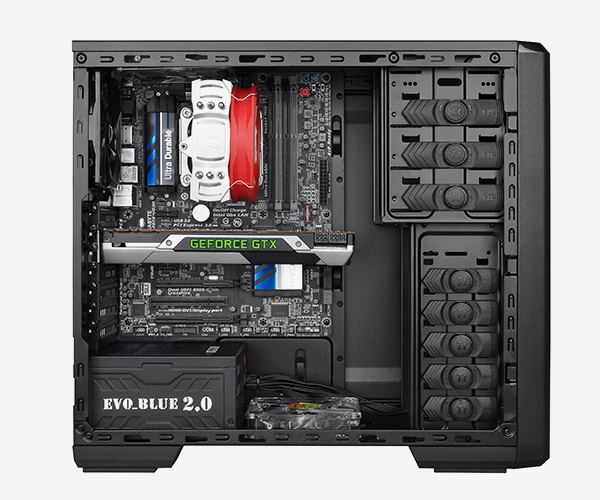

Pre-mounting holes to support motherboards up to standard ATX and CPU cooler installation, extra long graphic cards also supported.


Specifications:

Model Urban R21
P/N CA-1A6-00M1WN-00
Case Type Mid Tower
Dimension (H x W x D) 438 x 190 x 480 mm
(17.2 x 7.5 x 18.9 inch)
Net Weight 5.1 kg / 11.2 lb
Side Panel Transparent Window
Color Exterior &nterior : Black
Material SECC
Cooling System Front (intake) :(optional)
120 x 120 x 25 mm
Rear (exhaust) :
120 x 120 x 25 mm Turbo fan (1000rpm, 16dBA)
Top (exhaust) :(optional)
120 x 120 x 25 mm
Side (intake) : (optional)
120 x 120 x 25 mm
Bottom (intake) : (optional)
120 x 120 x 25 mm
Drive Bays -Accessible : 3 x 5.25,1 x 3.5
-Hidden : 5 x 3.5, 1 x 2.5
Expansion Slots 7
Motherboards 9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX)
I/O Ports USB 3.0 x 2, HD Audio x 1
PSU Standard PS2 PSU (optional)
LCS Upgradable Supports 1/23/81/4 water tube
  Top: 1 x 120mm
Other PU cooler height limitation: 155mm
VGA length limitation: 320mm

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (ThermalTake) web site.
