All stock codes associated to this product
8CP630NL400W, 8C-P630NL4-00W, CSNZP630WW
Phantom 630 - Windowed Edition
(White)
Ultra Tower
Features
Introducing the Phantom 630 Windowed Edition
You have been asking for this for a while and we've delivered...
NZXT presents the Phantom 630 Windowed Edition - the same revolutionary, award-winning chassis that took bold innovation to the next level with a large side panel window.
In 2010, the original Phantom shook the industry with its daring, timeless design. The following year, NZXT brought the well-received Phantom design to a Mid-sized tower with the Phantom 410. In 2012, the Phantom 820, again, raised the bar
for an entire industry, with its integrated HUE lighting system and limitless cooling potential.NZXT released the Phantom 630 in 2013 to rave reviews with only one complaint, the window.
Now, NZXT brings the same innovation of the completely redesigned interior of the Phantom 630 to the exterior with the new Windowed Edition.

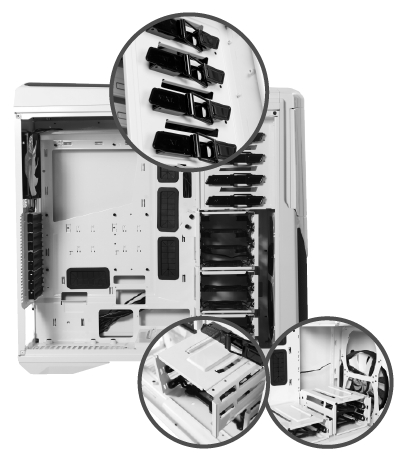

Engineered to satisfy any enthusiast’s desires, the Phantom 630 features fully modular internal drive bays that can be reorganized to your heart’s content.With all hard drive bays in place, the Phantom 630 is still able to achieve high performance liquid cooling with 360mm radiator and 240mm radiator support.
By rearranging your drive bay setup to fit with your specific needs, the Phantom 630 is able to support a countless number of creative, custom cooling configurations out of the box.
If you choose to remove all drive bays to accommodate extra radiators or a large reservoir, the Phantom 630 comes with two SSD mounts located behind the motherboard tray for a minimalistic setup with maximum cooling and cable management capability.

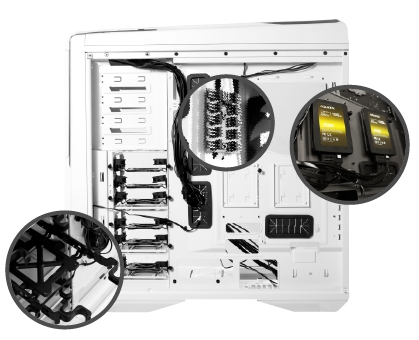

Along with an integrated 30-watt single channel fan controller, the Phantom 630 also features a dual-level motherboard tray, offering unrivaled cable management and airflow capabilities. Further minimizing cable clutter, the Phantom 630 is equipped with a rear-mounted multi-port fan hub for a simple and clean fan controller setup.
The standalone window upgrade for the Phantom 630 and H630 will be available this October.
Specifications
Tech Spec.
| Size |
Ultra Tower |
| Model Number |
CA-P630W-W1 Glossy White
CA-P630W-M1 Matte Black
CA-P630W-G1 Gunmetal |
| Drive Bays |
External 5.25" x 4 (Tooless)
Internal 3.5"/2.5": 8(2 x 2.5" behind MB) 1 x 3HDD cage, 1 x 2HDD cage, 1 x 1HDD cage (Fully Modular) |
| Cooling System |
Front 1 x 200 or 2 x 140 or 2 x 120mm ( 1 x 200mm included ) 800rpm
Top 2 x 200 or 2 x 140 or 3 x 120mm ( 1 x 200mm included) 800rpm
Rear 1 x 140/120mm (1 x 140mm included) 1,000rpm
Bottom 2 x 140/120mm
HDD Pivot 1 x 140/120mm |
| Filters |
Front (Included)
Top dual 200mm filters (Included)
Bottom Front (Included)
Bottom Rear (Included) |
| Radiator Support |
Front 1 x 140 or 2 x 120mm
Top 2 x140 or 3 x 120mm
Bottom 2 x 140/120mm
Rear 1 x 140/120mm
HDD Pivot 1 x 140/120mm |
| Clearance |
CPU Cooler 200mm
VGA Card 325mm/507mm (Without HDD cage)
Cable Management 36.6mm |
| Dimensions |
245mm(W) x 627mm(H) x 600mm(D) |
| Material |
SECC Steel, ABS Plastic |
| Motherboard Support |
ATX, Micro-ATX, XL-ATX, EATX (347mm x 272mm) |
| Expansion Slots |
9 |
| External Electronics |
1 x Audio/Mic
2 USB 2.0, 2 x USB 3.0
SD Card Reader With SDHC & SDXC Support
I/O Panel LED On/Off
Single Channel 30-watt Fan Control (3-speeds) |
| Product Weight |
12 kg |
| UPC |
815671011480 (White)
815671011497 (Gunmetal)
815671011503 (Black) |
| EAN |
5060301690732 (White)
5060301690749 (Gunmetal)
5060301690756 (Black) |
| Warranty |
2 years |
