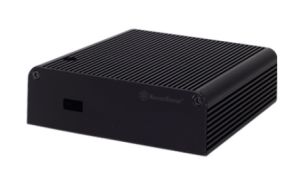

SilverStone SST-PT14B-H1D2 PT14 Petit Series NUC Small Form Factor Chassis, Black
  • 1xUSB, HDMI, 2xDisplayPort, NUC chassis With Heat-Pipe, Aluminum, Intel NUC

IMG 1 of 5
No Longer Available
Part Number:
314171
(?) Brand:
SilverStone Web Site
Manuf No:
SST-PT14B-H1D2
SSTPT14BH1D2
Shipping Weight:
1 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
SSTPT14BH1D2, SST-PT14B-H1D2
PT14

INTRODUCTION

The Petit PT14 is designed to be one of the smallest computer chassis for Intel Next Unit of Computing (NUC) platform. It measures only half a liter in size while accommodating an Intel NUC motherboard. Inside the PT14s aluminum top cover, SilverStone added a heat-pipe for better heat conducting efficiency to enable optional fanless operation. On the bottom, there is also an included 60mm PWM fan to provide extra cooling performance or thermal protection. Complementing this impressively small case are a VESA mounting bracket and wall mount kit to help PT14 fit in nearly any environment.

SPECIAL FEATURES

  • Intel NUC compatible
  • Premium all aluminium construction
  • Super small at 0.5 liter
  • Top cover with heat-pipe for excellent heat conducting efficiency
  • Includes compact 60mm PWM fan for additional cooling or safety
  • Meet VESA Mounting Interface Standard

Specifications

Model No.
 SST-PT14B-H2 (black + HDMI x 2)
SST-PT14B-H1T1 (black + HDMI + Thunderbolt )
SST-PT14B-H1D2 (black + HDMI + Display port x 2)
Material
 Aluminum
Motherboard
 Intel NUC
M / B Support
 Intel DCP847SKE / D33217GKE (SST-PT14B-H2, SST-PT14S-H2)
Intel D33217CK (SST-PT14B-H1T1, SST-PT14S-H1T1)
Intel D53427RKE / D53427HYE / D73537KK / DC73537SY (SST-PT14B-H1D2, SST-PT14S-H1D2)
Cooling System
 NUC chassis with heat-pipe
System fan
 Size 60x60x10mm
Speed 0~2800RPM
Voltage 5VDC
Bearing Sleeve
Air Flow (Max.) 11.48CFM
Sound level (Max.) 22.37dBA
Front I/O Port
 USB port x 1
Net Weight (case only)
 322g
Dimension
 106mm (W) x 38mm (H) x 122mm (D), 0.5 liters
Extra
 1 x HDD LED
1 x Power LED
1 x Antenna opening
Support VESA Mount
 MIS-D 75/ 75 mm 75 mm/ M4
MIS-D 100/ 100 mm 100 mm/ M4

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (SilverStone) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
