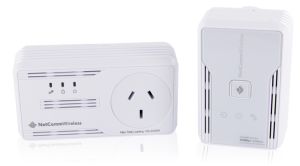

Netcomm NP508 Powerline Kit with Dual Band WiFi - 2-Port LAN 10/100, Up to 500Mbps, 128-Bit AES Encryption (Enabled With Simple Connect Button)

IMG 1 of 3
No Longer Available
Part Number:
315795
(?) Brand:
Netcomm Web Site
Manuf No:
NP508
Shipping Weight:
0.8 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
NP508, 9317773016666
500Mbps Powerline Kit with Dual Band WiFi - NP508

Overview

500Mbps Powerline Kit with Dual Band WiFi

Broadcast a powerful wireless Internet signal and extend the Internet to the far corners of your home using your existing network of Powerlines. The NetComm Wireless NP508 automatically transfers the Internet between 2 pre-paired adapters via your electrical network at speeds of up to 500Mbps. Simply plug the adapters into available power points to create a high-speed dual band wireless hotspot for reliable multi-device connectivity in any room.

NP508 overview 1

NP508 overview 2

Lightning fast Powerline

A 500Mbps data signal is transmitted between the adapters over Powerline to create an instant access point for bandwidth-intensive devices such as HD-TVs, laptops, tablets gaming consoles and Blu-ray players. Simply connect your devices directly to the Ethernet ports for a powerful broadband connection in any room.

Powerful Dual Band WiFi

One of the adapters features a dual band WiFi access point so you can create or extend a WiFi network at speeds of up to 300Mbps over different radio frequencies. Simply plug the Wireless adapter into any power socket to achieve an instant wireless hotspot for the simultaneous connection of multiple devices such as laptops, tablet computers, gaming consoles and smart phones.

NP508 overview 3

NP508 overview 4

Sharing the point

An AC pass-through socket is built into the other adapter so you can share the same power point with other electrical devices to lessen the need for messy double adapters or power boards. The AC-pass through socket also features noise filtering to prevent signal disruption by other electrical devices.

NP508 overview 5

Works out of the box

The plug and play adapters are pre-configured to work without setup requirements. Simply connect them to power and enjoy your music, movies and gaming in any room of the house.


Technical Specifications

MAIN CHIPSET

  • Powerline: Atheros AR7420 + AR1540

STANDARDS

  • Powerline: IEEE 1901 / HomePlug AV
  • Ethernet: IEEE 802.3 10/100 Auto MDI/MDIX
  • Wireless: IEEE 802.11b/g/n
  • Compliant to EuP Lot 6 (Power saving standard)

MODULATION SUPPORT

  • Powerline: OFDM 1024/256/64/16/8 QAM
  • QPSK
  • BPSK
  • ROBO

DATA TRANSFER RATE

  • Up to 500Mbps over Powerline
  • Up to 300Mbps over Wireless

RANGE

  • Up to 200m over Powerline

SECURITY

  • 128-bit AES Encryption (enabled with Simple Connect button)

POWERLINE FILTERING

  • Filtering at frequency band 2MHz to 68MHz
  • Filtering characteristics: -25dB to -45dB

EXTERNAL CONNECTORS

POWERLINE ADAPTER WITH AC PASS-THROUGH
  • 2 x Ethernet LAN ports
  • 1 x Reset button
  • 1 x Simple Connect push button
  • 1 x Filtered AC pass-through socket
POWERLINE ADAPTER WITH WIFI N
  • 2 x Ethernet LAN ports
  • 1 x Reset button
  • 1 x push button for WPS
  • 1 x Simple Connect push button
  • 1 x 2.4GHz / 5GHz WiFi frequency switch

MEASUREMENTS

POWERLINE ADAPTER WITH AC PASS-THROUGH
  • 116mm x 62mm x 42mm
POWERLINE ADAPTER WITH WIRELESS N
  • 90mm x 61mm x 51mm

POWER SUPPLY

  • AC 220 ~ 240V, 50 ~ 60Hz

ENVIRONMENTAL TEMPERATURE

  • Operating: 0C to 40C
  • Non-Operating: -25C to 70C

HUMIDITY

  • Operating: 30% to 80% relative humidity (non-condensing)
  • Non-Operating: 30% to 95% relative humidity (non-condensing)

REGULATORY APPROVAL

  • RCM, CE
Specifications are subject to change without notice

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Netcomm) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
