GD09
Grandia Series

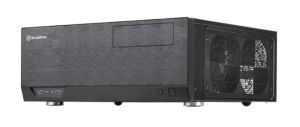

The Perfect HTPC Case for Everyone
INTRODUCTION
The Grandia GD09 is a culmination of SilverStone’s decade-long experience in HTPC case design and manufacturing into a product that every PC enthusiast can enjoy. The incredible efficiency in which it utilizes all available space results in a case that is close in size externally to Micro-ATX based GD04 and GD05, yet capable of fitting most important full size standard components including wider ATX motherboards (SSI-CEB) such as ROG or other gaming-centric models. All drive cages have been designed similarly to those from the popular ML03 case to provide maximum flexibility in drive configuration without the need for additional adapters. For cooling, all positive pressure and smooth airflow designs were retained from previous Grandia models while improvements were made to filter access for even easier maintenance. With the GD09, there has never been a more attractively sized HTPC case that is as capable and user-friendly. So whether one is looking to build an affordable or a powerful PC, this case can definitely satisfy both ends of the requirement.
SPECIAL FEATURES
- Positive air pressure design for excellent cooling/quietness and dust-prevention
- Support expansion cards up to 12.2 inches
- Support ATX motherboards
- Quick access filters included
- Incredible 358mm depth to fit comfortably inside home theater cabinet
- Drive cages with multi-purpose mounts eliminate need for adapters
Specifications
|
Model No.
|
SST-GD09B(Black) |
| -- |
| -- |
| -- |
|
Material
|
Plastic front panel with faux aluminum finish, 0.8mm steel body |
|
Motherboard
|
SSI-CEB, ATX, Micro-ATX* |
|
Multimedia
|
-- |
|
Drive Bay
|
External |
5.25" x 1 (compatible with 3.5 x 1 or 2.5 x 2) |
| -- |
| Internal |
3.5" x 2 (one compatible with 2.5), 2.5 x1 |
|
Cooling System
|
Front |
-- |
| Rear |
2 x 80mm fan slot |
| Side |
Right:1 x 120mm intake fan, 900rpm, 18dBA,1 x 120mm fan slot
Left:1 x 120mm fan slot, compatible with 80mm fan |
| Top |
Expansion card vent |
| Bottom |
-- |
| Internal |
-- |
|
Expansion Slot
|
7+1 |
|
Front I/O Port
|
USB 3.0 x 2
audio x 1
MIC x 1
|
|
Power Supply
|
Standard PS2(ATX)
220mm maximum, 180mm recommended |
|
Operating system support
|
-- |
|
Expansion Card
|
Support cards up to 12.2 inches, width restriction 5.25 |
|
Limitation of CPU cooler
|
138mm |
|
Limitation of PSU
|
-- |
|
Net Weight
|
4.2kg |
|
Dimension
|

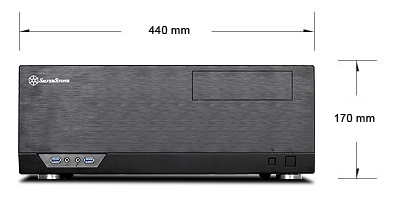

440mm (W) x 170mm (H) x 358mm (D), 26.8 liters |
|
Extra
|
Support Kensington lock |
|
Support VESA Mount
|
-- |
