All stock codes associated to this product
HLL9200CDW, HL-L9200CDW, PRBHLL9200CDW, PRB-HL-L9200CDW, 4977766733724

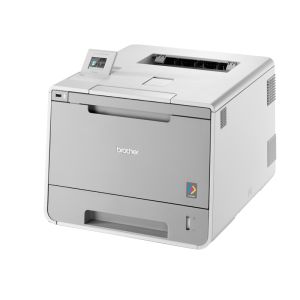

HL-L9200CDW
Colour Laser / LED Printers
Overview
HL-L9200CDW | Colour Laser / LED Printers
Brother's HL-L9200CDW is a high-speed, colour laser printer with up to 30ppm output in both colour and monochrome. It is designed to do more in less time and save money on every job by reducing your overall printing costs. The HL-L9200CDW features automatic 2-sided (duplex) printing, wireless connectivity, mobile printing along with super-high inbox 6,000-page yield* replacement toner cartridges for maximum output at lower cost. Added benefits such as Secure Function Lock 3.0 and Brother BRAdmin Professional add confidentiality, convenience and efficiency to your business operations.
| Duplex Print: |
Built-in @ Up to 14 sides per minute (7 sheets per minute) |
| Interface: |
Hi-Speed USB2.0, 10Base-T/ 100Base-TX Ethernet and IEEE 802.11b/g/n Wireless |
| Standard Paper Capacity: |
Up to 250 Sheets |
| AirPrint: |
Yes |
| Wi-Fi Direct: |
Yes |
| Google Cloud Print: |
Yes |
| Warranty: |
12 Months Return To Base
Warranty Information
|
Features:
- Up to 30ppm print speed colour & monochrome
- Automatic 2-sided (duplex) Printing
- Hi-Speed USB 2.0, Wired Network & Wireless
- 4.5cm Touchscreen
- 128MB Memory (expandable up to 384MB)
- 250 sheet lower paper tray, 50 sheet Manual Feed Slot + optional 500 sheet paper capacity
- Apple AirPrint & Google Cloud Print
- Wi-Fi Direct
- Web Connect & Brother Apps + BSI
- Super High-yield toners 6,000BkCMY
Specifications
General
- ModelHL-L9200CDW
- Engine Colour Laser (Single cycle)
- Functions A4 Wireless Network Colour Laser Printer
- Standard Memory 128MB
Display
- LCD Display 4.5cm Colour LCD TouchScreen
- LED Display NA
Printer
- Emulation PCL6, BR-Script3
- Print Speed Up to 30 ppm Mono
Up to 30 ppm Colour
- CPU Speed 400MHz
- Printer Resolution 2400 dpi(2400x600) quality
- Printer Compatibility Windows 8 (32&64bit), Windows 7 (32&64bit), Vista (32&64bit), XP Home Edition, XP Professional (32&64bit), Windows Server 2012(Network only), Windows Server 2012 R2(Network only), Windows Server 2008 (32&64bit), Windows Server 2008 R2, Windows Server 2003 (32&64bit)
Mac OS X 10.7.5 or greater (Download only)
Linux CUPS, LPD/LPRng (x86/x64 environment)
- Duplex Print Built-in @ Up to 14 sides per minute (7 sheets per minute)
- First Print Out Time Less than 15 secs Mono / Colour (from ready mode)
Less than 35 secs Mono / Colour (from sleep mode)
- Warm Up Time From Sleep Mode : less than 29 secs
From Power ON : less than 31 secs
- Printer Driver Functions N in 1, Poster*, Watermark*, Header/Footer-Date & Time*, ID Print*, Secure Print, Auto Duplex
*Windows Only
- Resident Fonts BR-Script3: 66 scalable fonts
PCL: 66 scalable fonts, 12 bitmap fonts, 13 bar codes
- Secure Print Windows / Mac
Paper Handling
- Standard Paper Capacity Up to 250 Sheets
- Multi-Purpose Tray Capacity Up to 50 Sheets
- Manual Feed Slot NA
- Output Paper Capacity 150 Sheets Face Down
1 sheet Face Up (straight paper path)
- Media Weights Paper Tray 60-105 gsm
- Media Weights MP Tray 60-163 gsm
- Media Weights Manual Feed Slot NA
- Media Weights Duplex 60-105 gsm
- Media Weights Paper Tray (Option) 60-105 gsm
- Media Size Paper Tray A4, Letter, B5(ISO/JIS), A5, A5(Long Edge), A6, Exective, Legal, Folio
- Media Size MP Tray Width 76 to 216 mm, Length 127 to 355 mm
- Media Size Manual Feed Slot NA
- Media Size Duplex A4
- Media Size Paper Tray (Option) A4, Letter, B5(ISO/JIS), A5, Exective, Legal, Folio
- Media Types Paper Tray Plain Paper, Thin Paper, Recycled Paper
- Media Types MP Tray Plain Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Bond, Label, Envelope, Env. Thin, Env.Thick, Glossy Paper
- Media Types Manual Feed Slot NA
- Media Types Duplex Plain Paper, Thin Paper, Recycled Paper, Glossy Paper
- Media Types Paper Tray (Option) Plain Paper, Thin Paper, Recycled Paper
PhotoCapture Centre
- PictBridge NA
- Digital-Media Spec USB Memory Drive
- Direct Print USB PDF version1.7, JPEG, Exif+JPEG,
PRN (created by own printer driver), TIFF (MH, scanned by Brother model), XPS Version 1.0 (up to 64GB Memory Drive)
Software
- Software Included Colour restriction tool from printer driver
Colour control tool from printer driver
Driver Deployment Wizard
Connectivity
- Interface Hi-Speed USB2.0, 10Base-T/ 100Base-TX Ethernet and IEEE 802.11b/g/n Wireless
- Interface Parallel NA
- Network Interface Standard Standard 10Base-T/100Base-TX Ethernet
- Wi-Fi Direct Yes
- AirPrint Yes
- iPrintScan Yes (Print Only)
- Web Connect Print from GoogleDrive, Dropbox, Box, Sky Drive
- Google Cloud Print Yes
Networking
- Wireless Interface Yes
- Wireless Mode IEEE 802.11b/g/n (Infrastructure Mode/Adhoc mode)
- Wireless Security WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES)
- Network Protocols IPV4 ARP, RARP, BOOTP, DHCP, APIPA(Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, FTP Server, TELNET Server, HTTP/HTTPS server, TFTP client and server, SMTP Client, SNMPv1/v2c/ v3, ICMP, Web Services (Print), CIFS client, SNTP client, LDAP
- Network Protocols IPV6 NDP, RA, DNS resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, FTP Server,TELNET Server, HTTP/HTTPS server, TFTP client and server, SMTP Client, SNMPv1/v2c/v3, ICMPv6, Web Services (Print), CIFS Client, SNTP Client, LDAP
- Network Management Windows: BRAdmin Light, Web Base Management, BRAdmin Professional, Network Remote Setup
Mac: BRAdmin Light, Web Base Management, Network Remote Setup
Linux: Web Base Management
- Email Alerts E-mail Notification and E-mail Reports
Options
- Optional Paper Tray Up to 1 x 500 Sheets Lower Tray (LT-325CL)
- Optional Memory Expandable up to 384 MB, 1 DDR2 (144pin/16bit) slot (256MB)
- Optional Network Interface NA
Consumable
- Consumables Black Toner (TN-341BK) Up to 2,500 pages*
Colour Toner (TN-341C/TN-341M/TN-341Y) Up to 1,500 pages*
Black Toner High Yield (TN-346BK) Up to 4,000 pages*
Colour Toner High Yield (TN-346C/TN-346M/TN-346Y) Up to 3,500 pages*
Black Toner Super High Yield (TN-349BK) Up to 6,000 pages*
Colour Toner Super High Yield (TN-349C/TN-349M/TN-349Y) Up to 6,000 pages*
Belt Unit: Up to 50,000 pages (5-page per job), Up to 20,000 pages (1-page per job)(BU-320CL).
Waste Toner Box: Up to 50,000 pages (WT-320CL).
Drum Unit: Up to 25,000 pages (1-page per job)(DR-341CL)
*In accordance with ISO/IEC 19798
- Inbox Consumables Black Toner: Up to 6,000 pages-Super High Yield (TN-349BK)*
Colour Toner: Up to 6,000 pages-Super High Yield (TN-349C/TN-349M/TN-349Y)*
Belt Unit: Up to 50,000 pages (5-page per job), Up to 20,000 pages (1-page per job)(BU-320CL).
Waste Toner Box: Up to 50,000 pages (WT-320CL).
Drum Unit: Up to 25,000 pages (1-page per job)(DR-341CL)
*In accordance with ISO/IEC 19798
Weight and Measures
- Size 410(W) x 486(D) x 313(H)mm
- Weight 15.9 Kg
Environment
- Energy Star Compliant Yes
- Power Consumption Printing: Average 540 W
Ready: Average 65 W
Sleep: Average 7.5 W
Deep Sleep: 0.9 W
- Noise Level Sound Pressure Level: (Printing) Less than 53.5 dBA, (Ready) Less than 27.9 dBA
Sound Power Level: (Printing) Less than 6.78 B, (Ready) Less than 4.06 B
- Sleep Mode Yes (0-50 min)
- TEC Value 2.3 kWh/Week
- Humidity Operating: 20 - 80% (without condensation)
Storage: 10 - 90% (without condensation)
- Temperature Operating: 10 - 32C
Storage: 0 - 40C
Others
- Warranty 12 Months Return To Base
Warranty Information
- Recommended Monthly Print Volume 1,000 to 5,000 pages
- Carton Contents HL-L9200CDW Printer, Paper Tray, CD-ROM (including User's Guide), Quick Setup Guide, Power Cord, Belt Unit (PreInstalled), Waste Toner Box (Preinstalled), Drum Unit (PreInstalled), InBox Toner Cartridges - Black Toner Super High Yield (TN-349BK) Up to 6,000 pages*, Colour Toner Super High Yield (TN-349C/TN-349M/TN-349Y) Up to 6,000 pages*
*In accordance with ISO/IEC 19798
