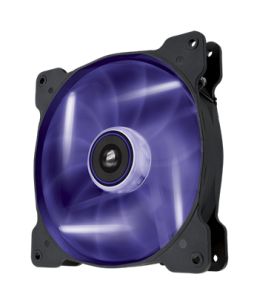

Corsair Air Series SP140 High Static Pressure Fan - 140x25mm Purple LED Fan, 1440rpm, 49.49CFM, 29.3dBA - Black Layer with Clear Blade & Purple LED Fan

IMG 1 of 4
No Longer Available
Part Number:
366190
(?) Brand:
Corsair Web Site
Manuf No:
CO-9050028-WW(SP140-HSP-PLED)
CO9050028WW(SP140HSPPLED)
Shipping Weight:
0.5 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
CO9050028WW(SP140HSPPLED), CO-9050028-WW(SP140-HSP-PLED)

Air Series SP140 LED Purple High Static Pressure 140mm Fan


CO-9050028-WW

Fan Size: 140mm x 25mm

Flow Type: Static Pressure

Overview

High static pressure cooling with LED illumination.

Corsair Air Series LED high static pressure PC case fans combine efficient high pressure airflow with striking LED lighting. Theyre custom designed to deliver air directly to high-temperature components with less noise and turbulence than ordinary fans. The custom-molded blades are translucent and have a frosted texture, so the light from the four LEDs adds a dramatic effect.

Designed for restricted spaces

Air Series SP fan models are designed for use in restricted spaces. They’re ideal for radiator and heatsink use, as well as drive bay intakes and other locations where you’re mounting a fan directly adjacent to a heat source. For general purpose case ventilation where you’d like high airflow with minimal excess noise, check out our AF120 and AF140 LED fans.

Performance

  SP120 LED SP140 LED
Dimensions 120mm x 25mm 140mm x 25mm
Operating Voltage 7V - 12V
  Performance at 12V
Airflow 57.24 CFM 49.49 CFM
Static Pressure 1.46 mm/H20 1.17 mm/H20
Sound Level 26.4 dBA 29.3 dBA
Speed 1650 RPM 1440 RPM
Power Usage 0.26 A 0.26 A

Contents and Specifications

Package contents

  • Air Series SP LED High Static Pressure Fan
  • Mounting Screws
  • Warranty leaflet

System requirements

  • Motherboard with an open standard 3-pin fan connector

Tech Specs

  • Warranty: Two years
  • Color: Purple
  • Fan Size: 140mm x 25mm
  • Flow Type: Static Pressure
  • Airflow: 49.49 CFM
  • Static Pressure: 1.17mm/H20
  • Sound Level: 29.3 dBA
  • Speed: 1440 RPM
  • Power Draw: 0.18 A

No additional files, specification sheets, guides or documentation found for product.

Warranty: 2-year RTB

Full manufacturers warranty details are available at the manufacturers (Corsair) web site.
