All stock codes associated to this product
KA7169AX, KA7169-AX, KVAKA7169, KVA-KA7169, 4710423775886, 4719264640131

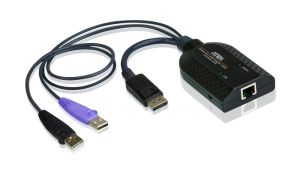

KA7169
DisplayPort USB Virtual Media KVM Adapter Cable with Smart Card Reader (CPU Module)
Overview

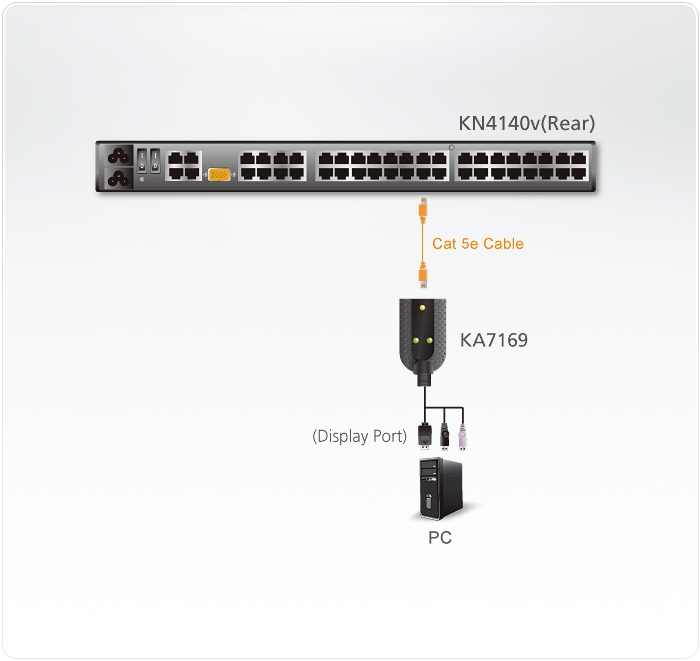

The KA7169 KVM Adapter Cable connects a KVM switch to the DisplayPort video and USB ports of a target computer. The KA7169 supports a DisplayPort connection and provides a USB plug to connect a target computer for Smart Card/CAC support*. With its small size and light weight design, it represents the next generation of KVM Adapter Cablesoffering superior signal compensation and delay skew technologies for greatly enhanced video quality.
Virtual media and CAC reader functions are not supported for KH1508A, KH1516A, KH1508Ai, KH1516Ai, KL1508A, KL1516A, KL1508Ai, KL1516Ai, KH2508A, KH2516A, KN2116A, KN4116, KN2132, or KN4132.
Package Contents
- 1x KA7169 KVM Adapter Cable
Features
- Auto Signal Compensation (ASC), no DIP switch setting needed for different distances
- Keyboard and mouse emulationkeeps your server functioning smoothly when its disconnected from the switch's KVM port or is relocated to a different KVM port
- Lifetime firmware upgrades
- Built in ASIC for greater reliability and compatibility
- CPU module designed with automatic conversion to allow for flexible interface combinations (PS/2, USB) to control all computer types (PC, Mac, Sun)
- Compact size
- Virtual Media Support
- Smart Card / CAC Reader Support
- Virtual media and CAC reader functions are not supported for KH1508A, KH1516A, KH1508Ai, KH1516Ai, KL1508A, KL1516A, KL1508Ai, KL1516Ai, KH2508A, KH2516A, KN2116A, KN4116, KN2132, or KN4132.
Specifications
| Connectors |
Link |
1 x RJ-45 Female |
| USB to Computer |
1xUSBTypeAMale |
| SmartCard/CACtoComputer |
1xUSBTypeAMale |
| DisplayPort to Computer |
1 x DisplayPort Male |
| LEDs |
On Line |
1 (Green) |
| Power |
1 (Orange) |
| Physical Properties |
Housing |
Plastic |
| Weight |
0.10 kg |
Dimensions
( L x W x H ) |
9.10x5.60x2.12cm |
