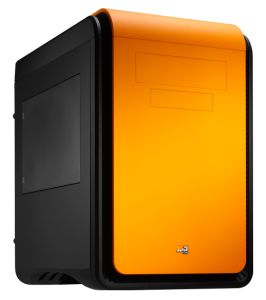

AeroCool DS Dead Silence Mini-Tower Case - NO PSU, Orange Edition
  • 2xUSB2.0, 2xUSB3.0, HD-Audio, 200mm Fan, 120mm Fan, Side-Window, Steel & Plastic, Soft Leather Coating, mATX

IMG 1 of 7
No Longer Available
Part Number:
367871
(?) Brand:
AeroCool Web Site
Manuf No:
DS-CUBE-ORANGE-SILENT
DSCUBEORANGESILENT
Shipping Weight:
10 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
DSCUBEORANGESILENT, DS-CUBE-ORANGE-SILENT

Features

  • 1.Super-Silent cube gaming case solidly built with 0.8mm SGCC to block out most of the noise.

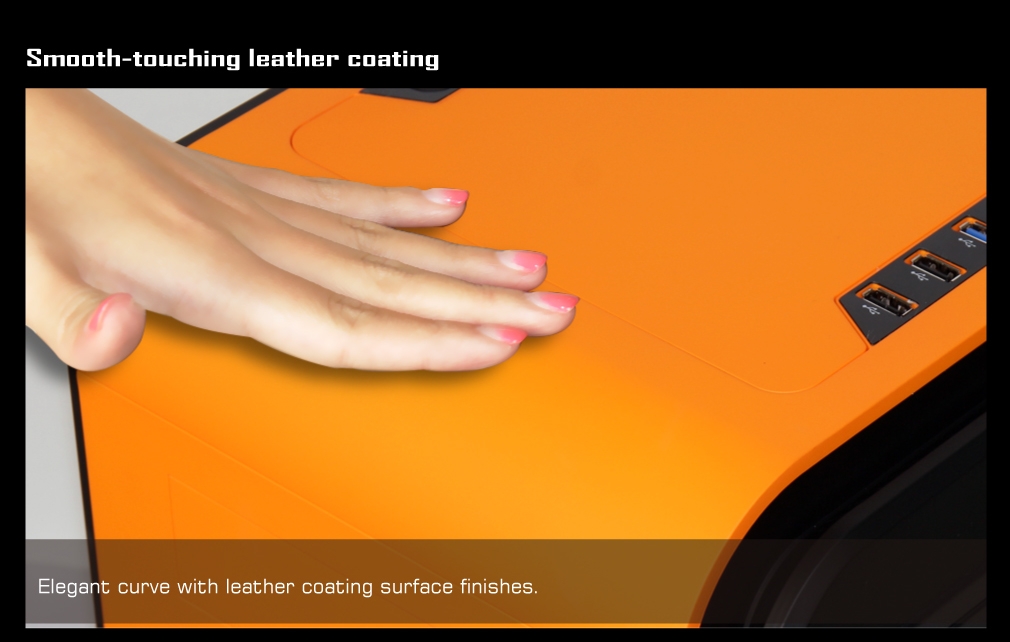

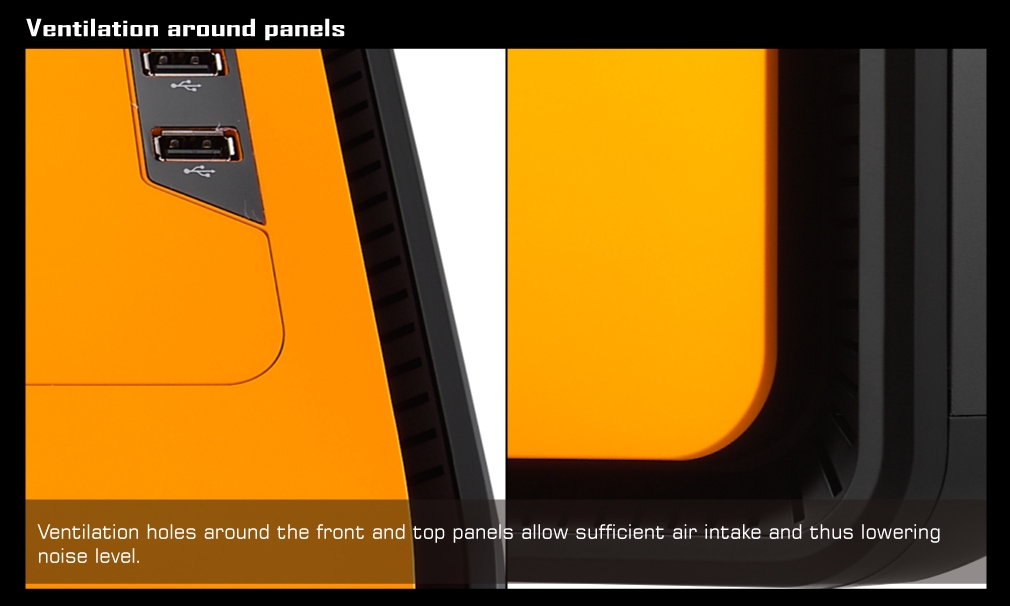

  • 2.Leather coated front and top panels with smooth surface finishing
  • 3.Removable top cover for easy access to Motherboard
  • 4.Completely removable ODD+FDD rack for ease of installing water cooling system

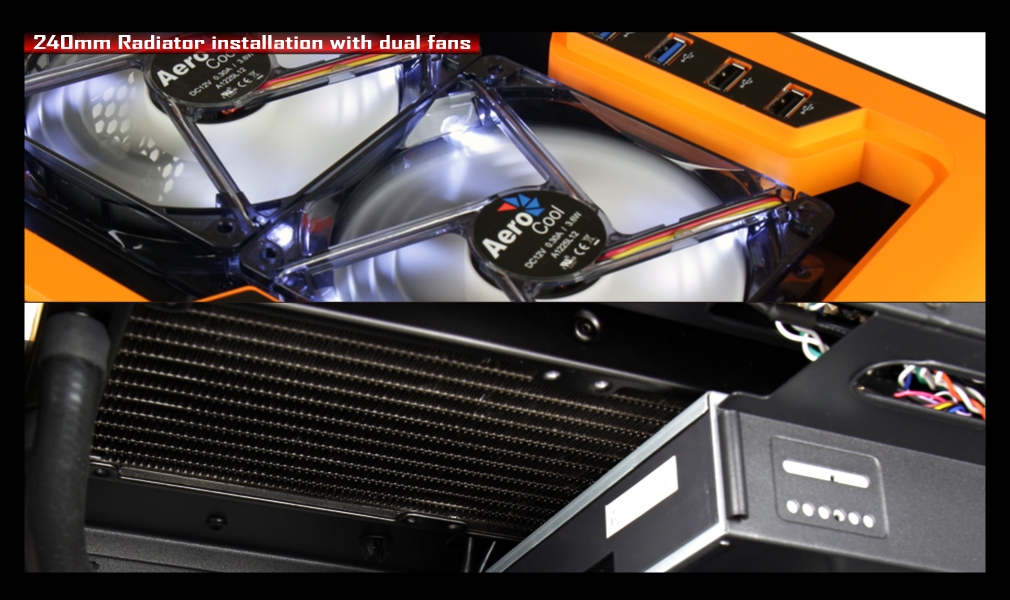

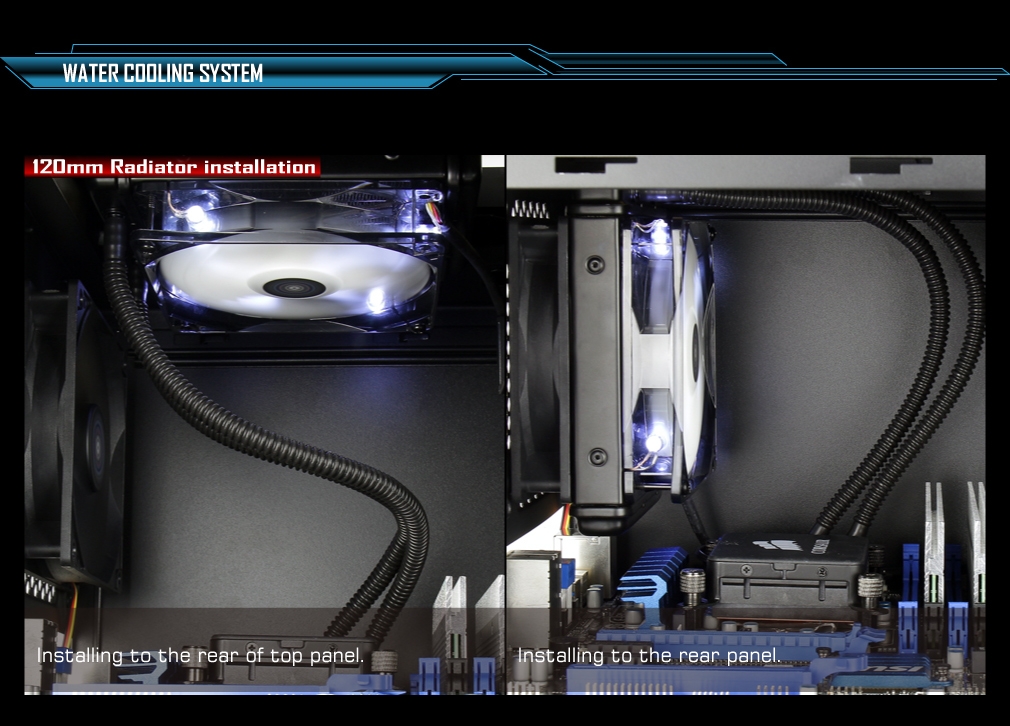

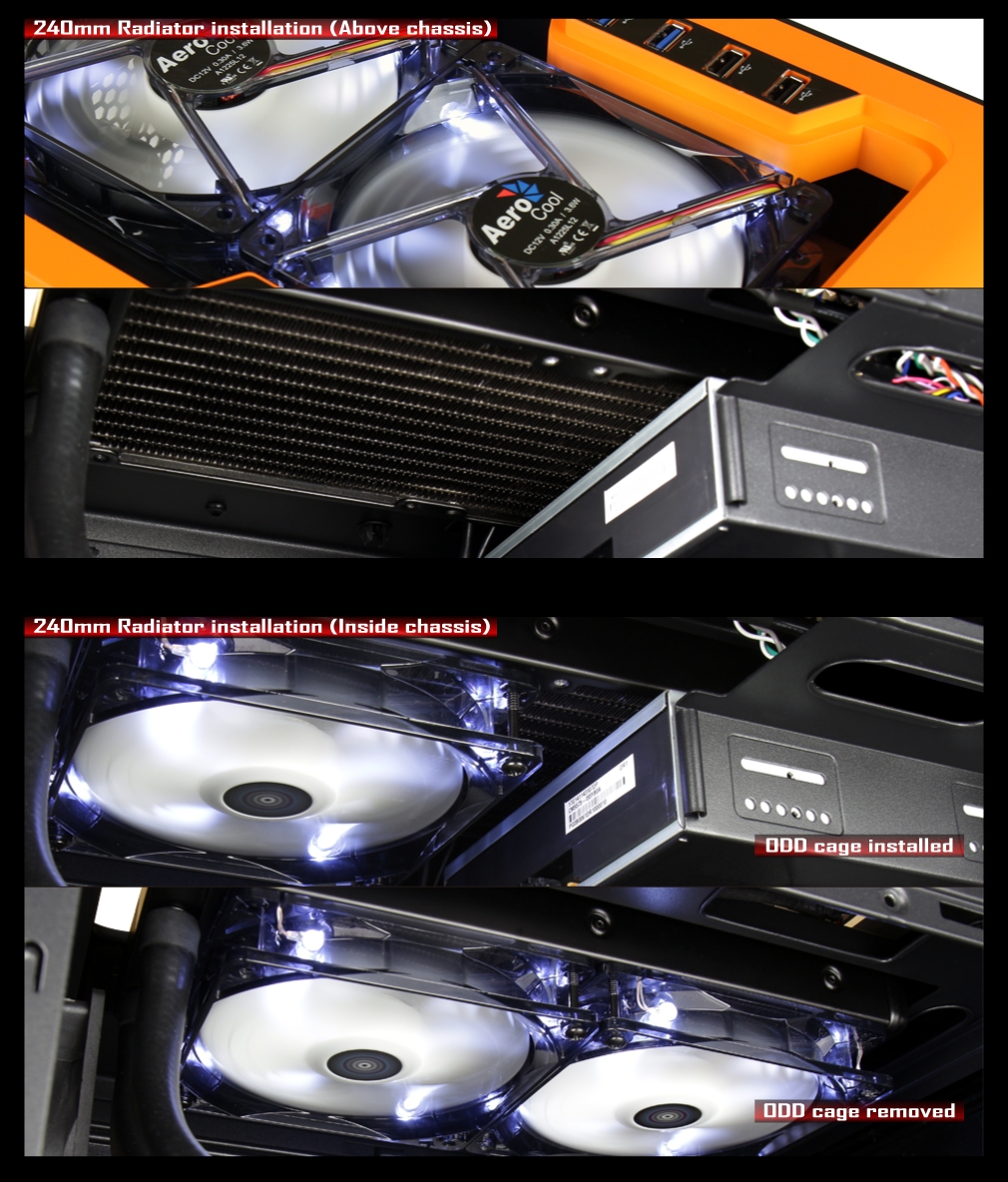

  • 5.Supports a complete 240mm water cooling system on the top panel

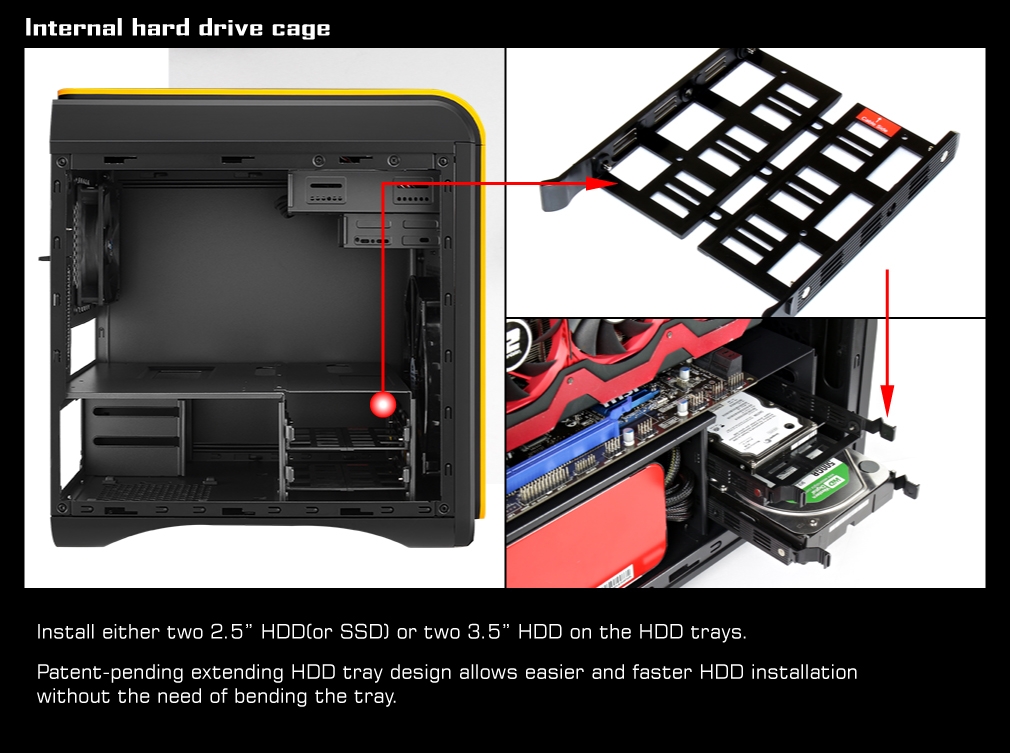

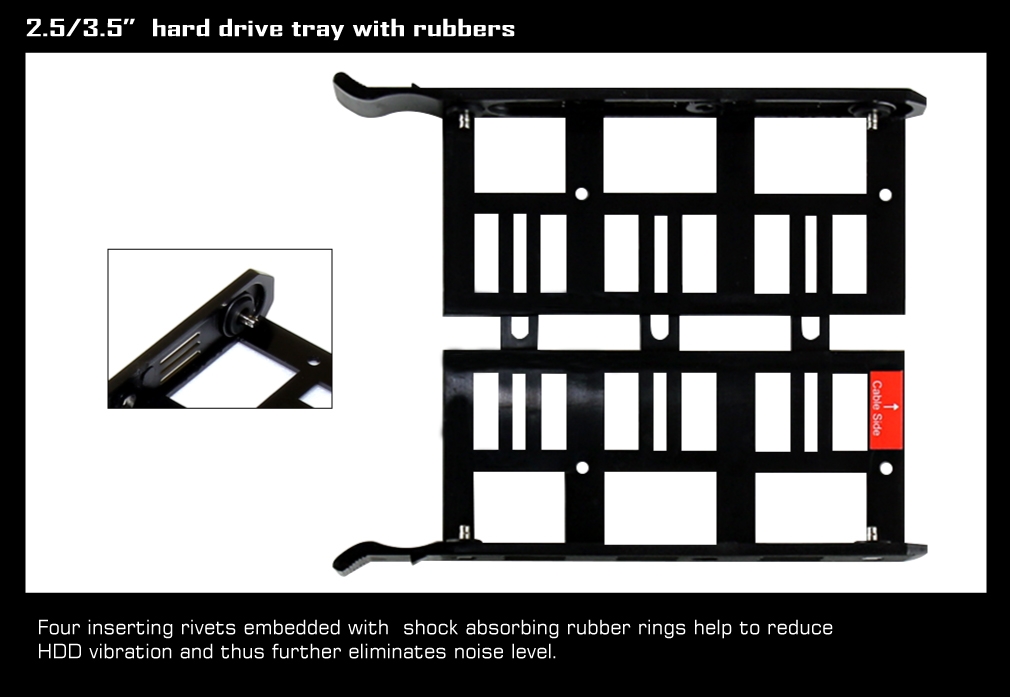

  • 6.Patented 3.5" HDD tray design for ease of installation
  • 7.Pre-drilled holes for cable management to reduce cable mess
  • 8.Pre-drilled water cooling holes
  • 9.Supports internal 3x3.5"HDD and 2x2.5"HDD/SSD.
  • 10.Supports high-end graphic card up to 320mm

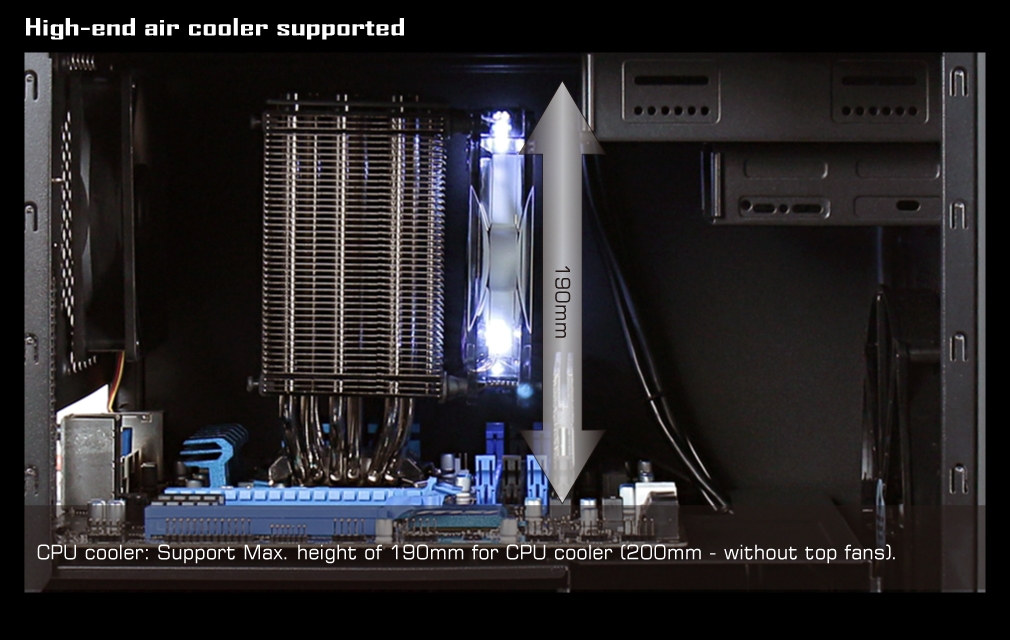

  • 11.Supports max. CPU cooler height of 190mm
  • 12.Supports max. PSU length of 160mm

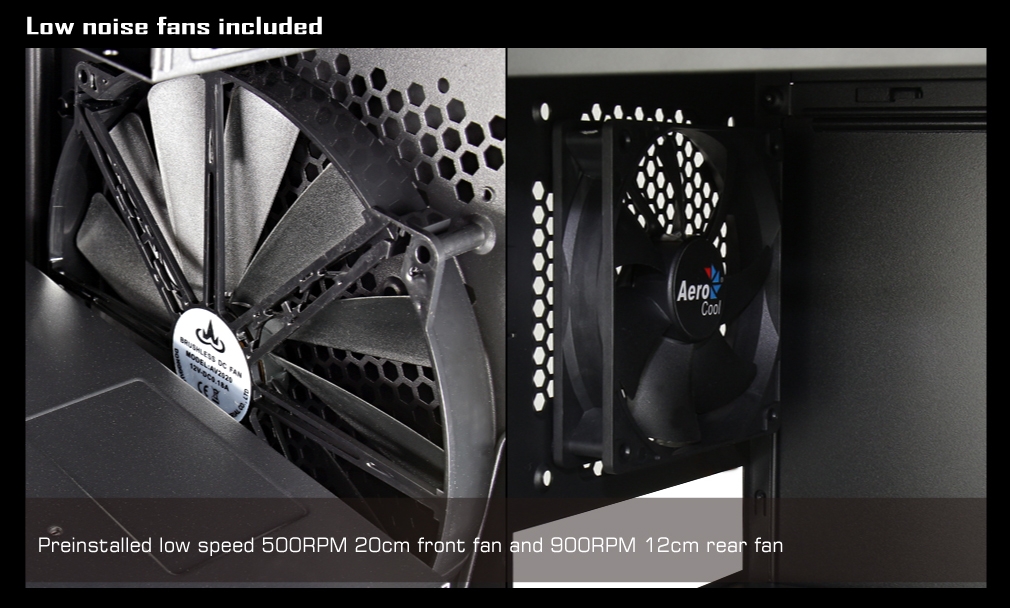

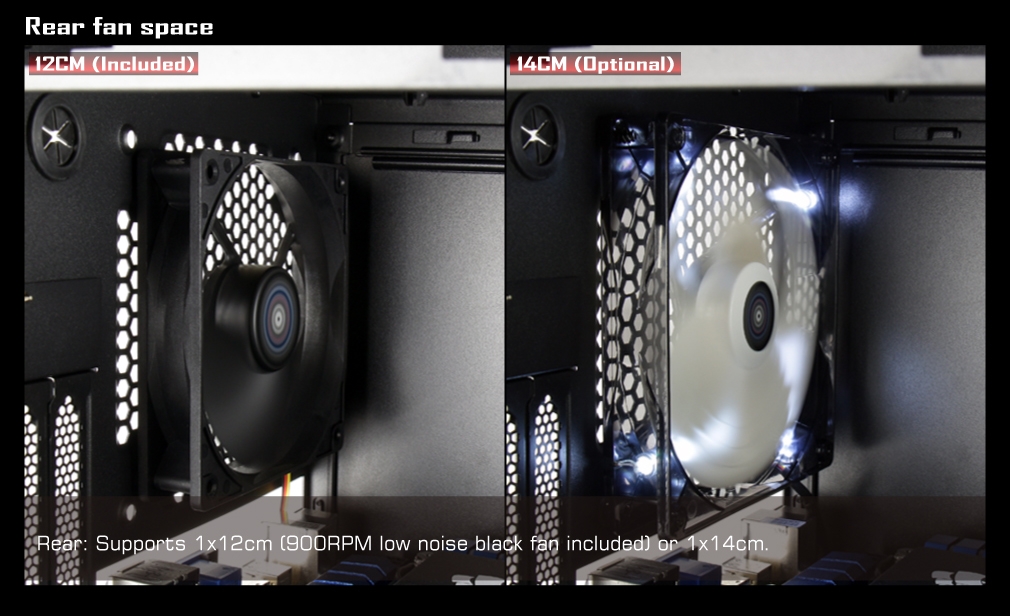

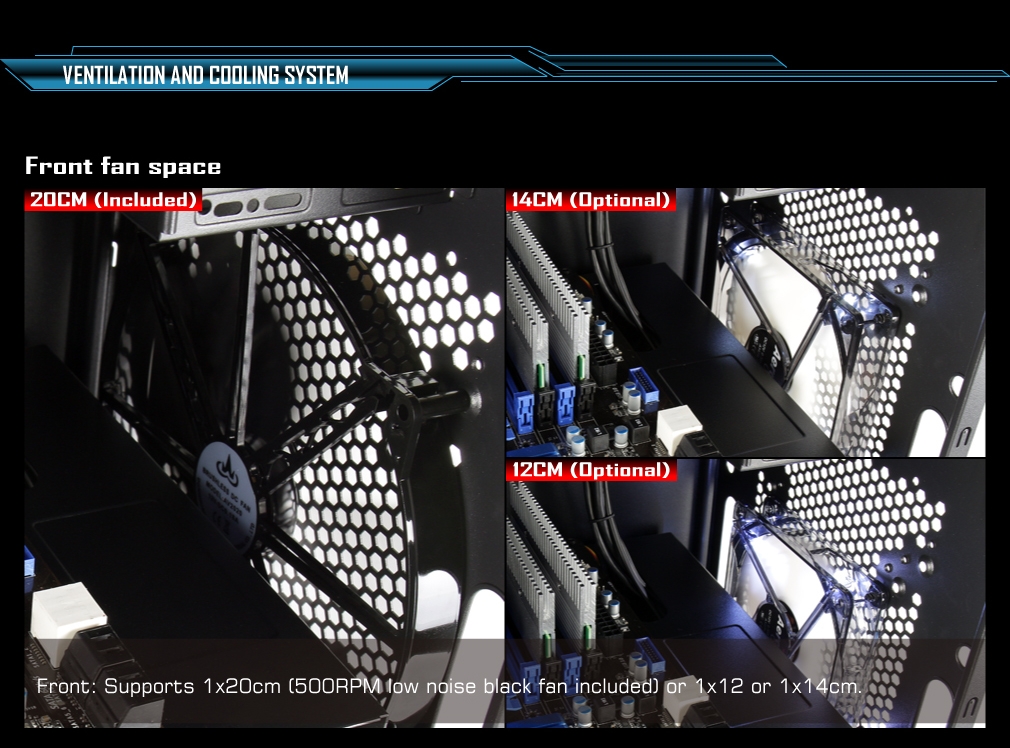

  • 13.Super-silent 20cm fan(500 RPM) and 12cm fan (900RPM) included for front and rear cooling

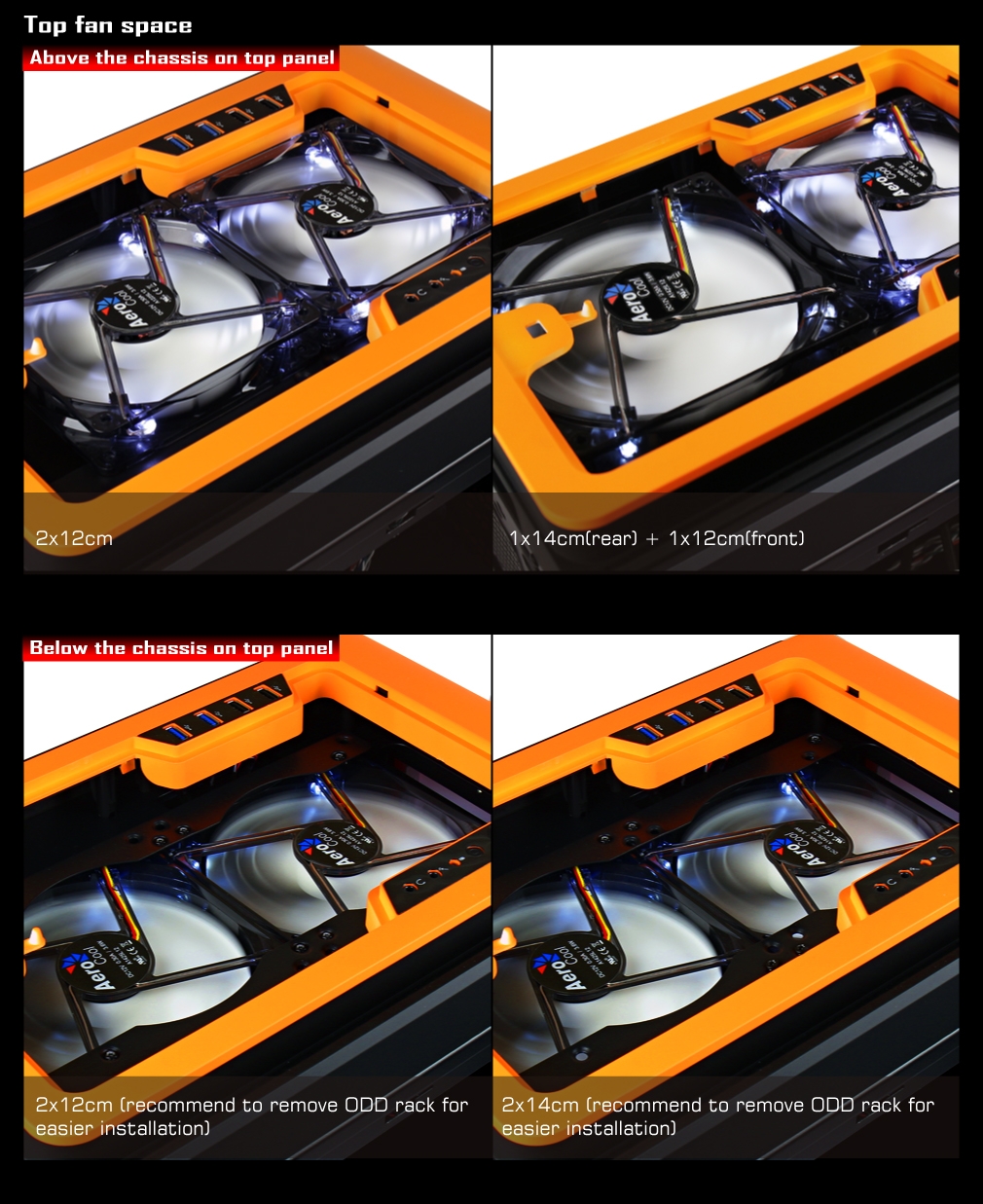

  • 14.Supports up to 2x12cm or 2x14cm fans on top panel

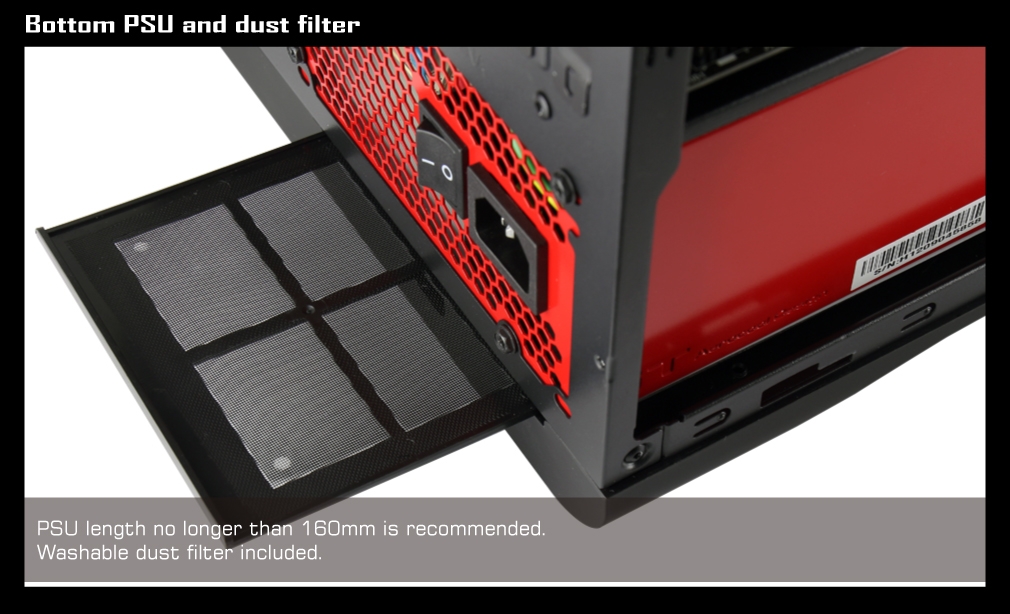

  • 15.Removable PSU dust filter for easy cleaning

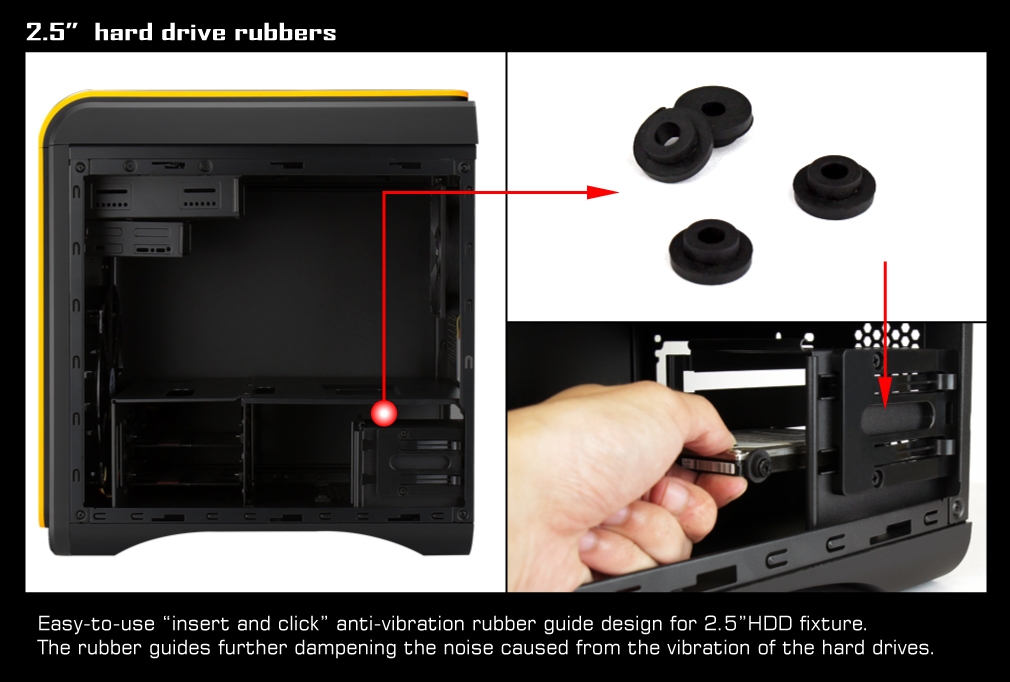

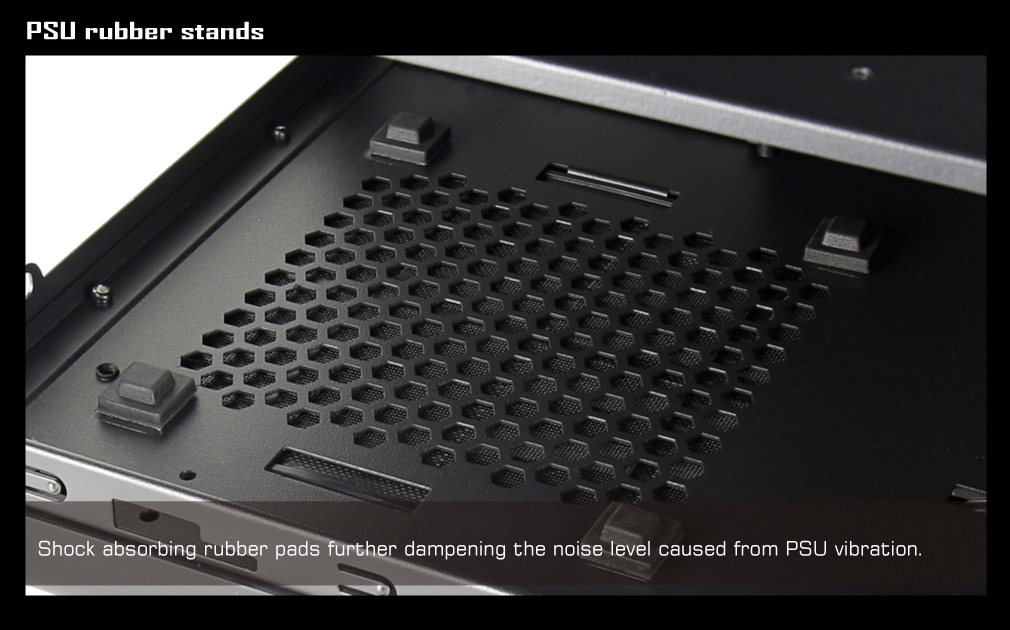

  • 16.Shock-proof rubber for 3.5" & 2.5" HDDs and PSU

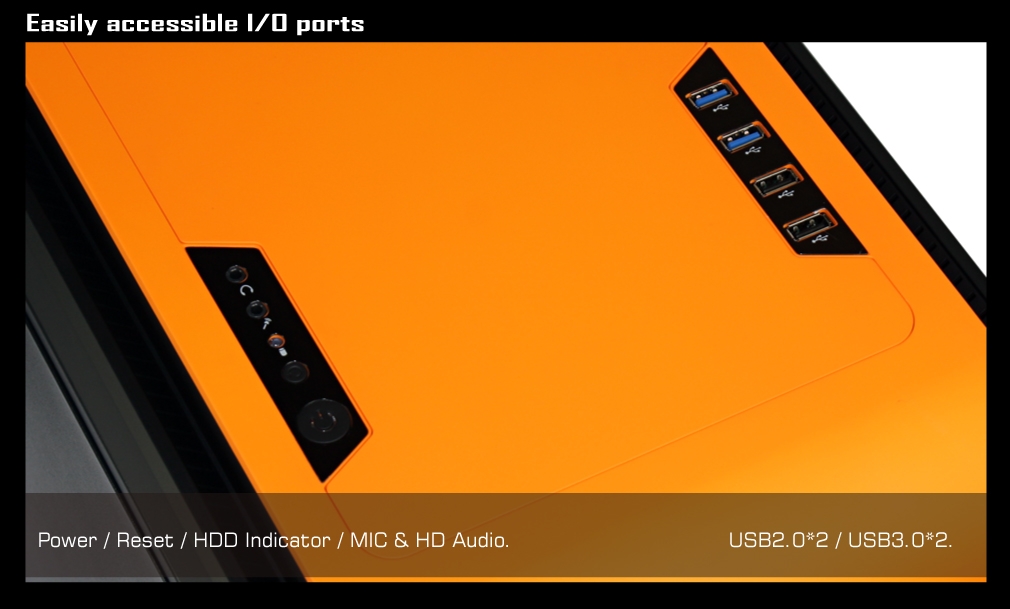

  • 17.2x USB2.0 / 2x USB3.0/ HD Audio & Mic

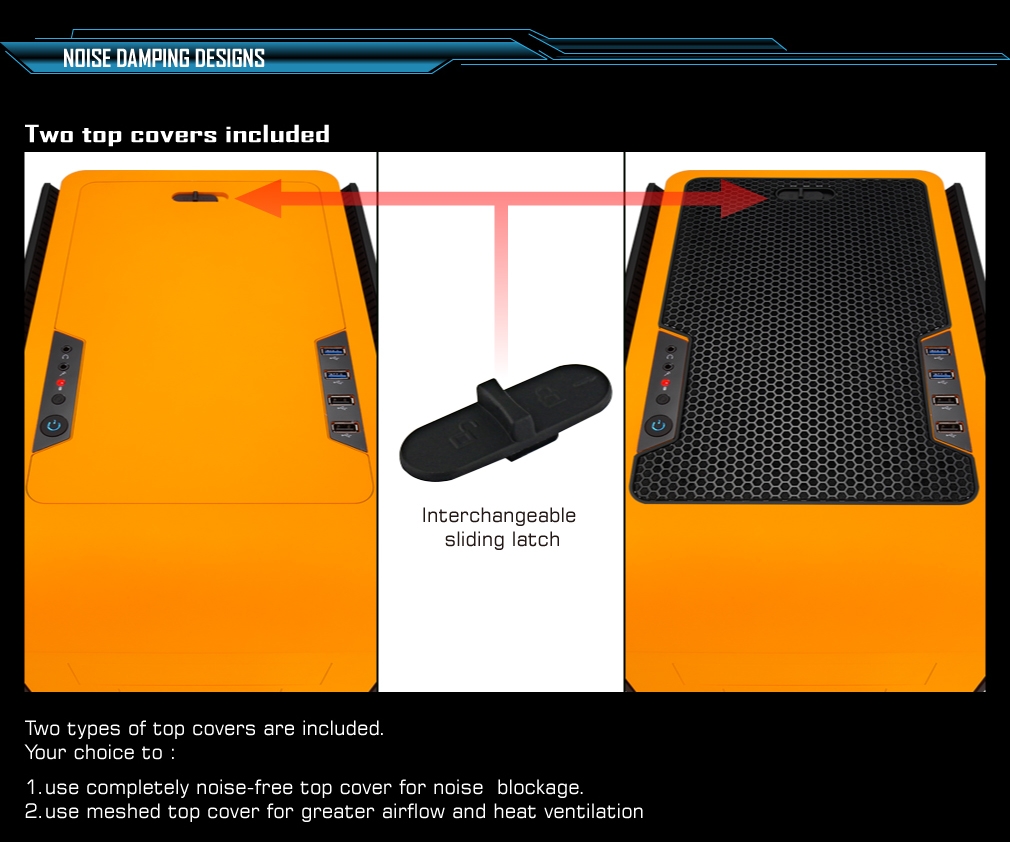

  • 18.Interchangeable top cover design. Both plastic top cover (Silence version) and Mesh top cover are included.

Dead Silence
Dead Silence
Dead Silence
Dead Silence
Dead Silence
Dead Silence
Dead Silence
Dead Silence
Dead Silence
Dead Silence
Dead Silence
Dead Silence
Dead Silence
Dead Silence
Dead Silence
Dead Silence
Dead Silence
Dead Silence
Dead Silence
Dead Silence
Dead Silence
Dead Silence
Dead Silence

Cooling System




 [ Front ] [ Rear ]
Fan 200 x 200 x 20mm 120 x120 x 25 mm
Rated voltage DC 12V DC 12V
Starting voltage <=8V <=6V
Power consumption 3.6W 1.44W
Rated current 0.30.03A 0.120.02A
Speed 50010% RPM 90010% RPM
Air Flow (CFM) 35.40CFM 36.40CFM or more
Air Pressure 1.0mm-H2O or more 1.32mm-H2O
Noise (dBA) 19.5(dBA) 21.5(dBA)
MTBF 20000hours 20000hours

Specifications

Case Type Cube Case
  Material 0.8mm

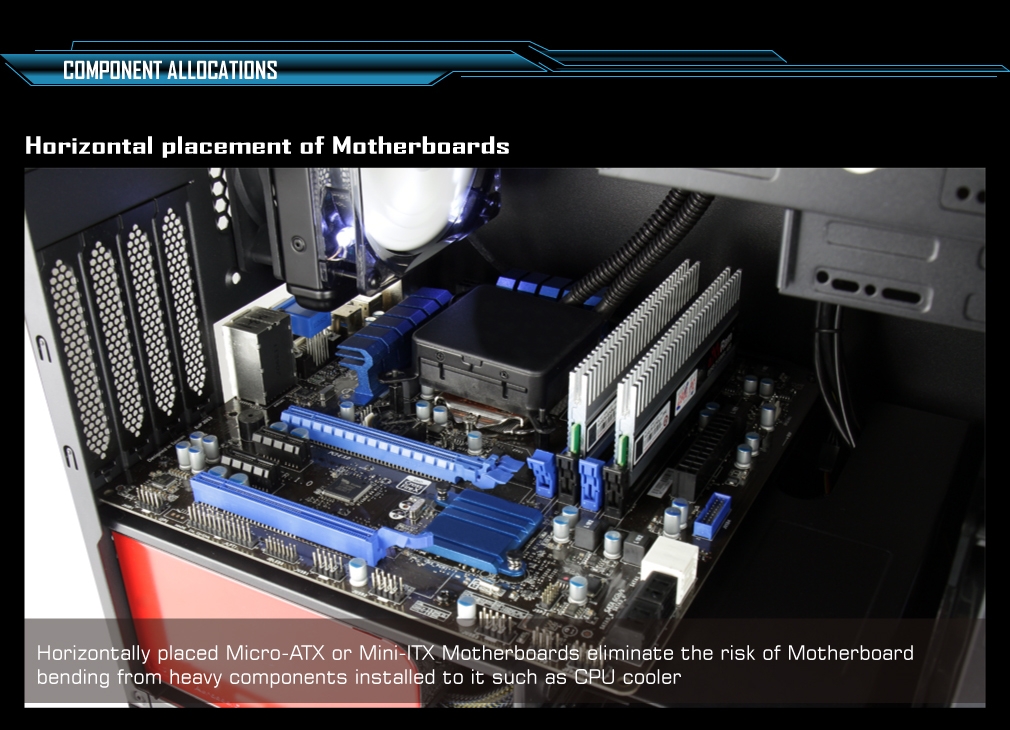

  Motherboards Micro ATX/ Mini ITX

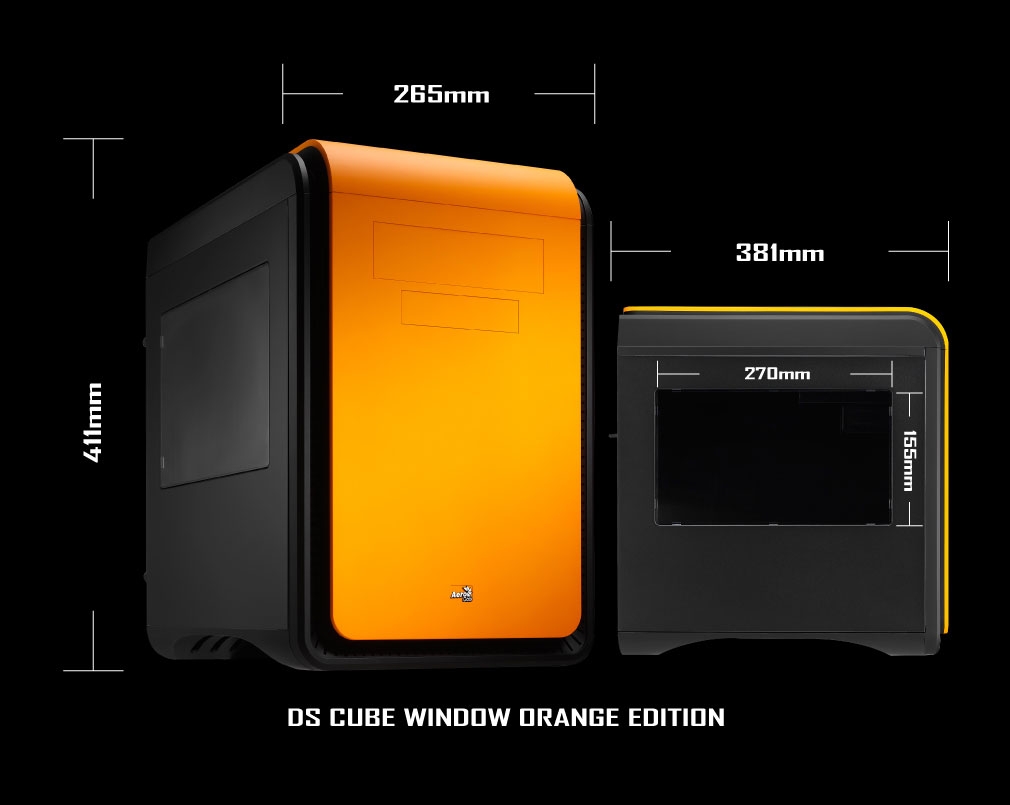

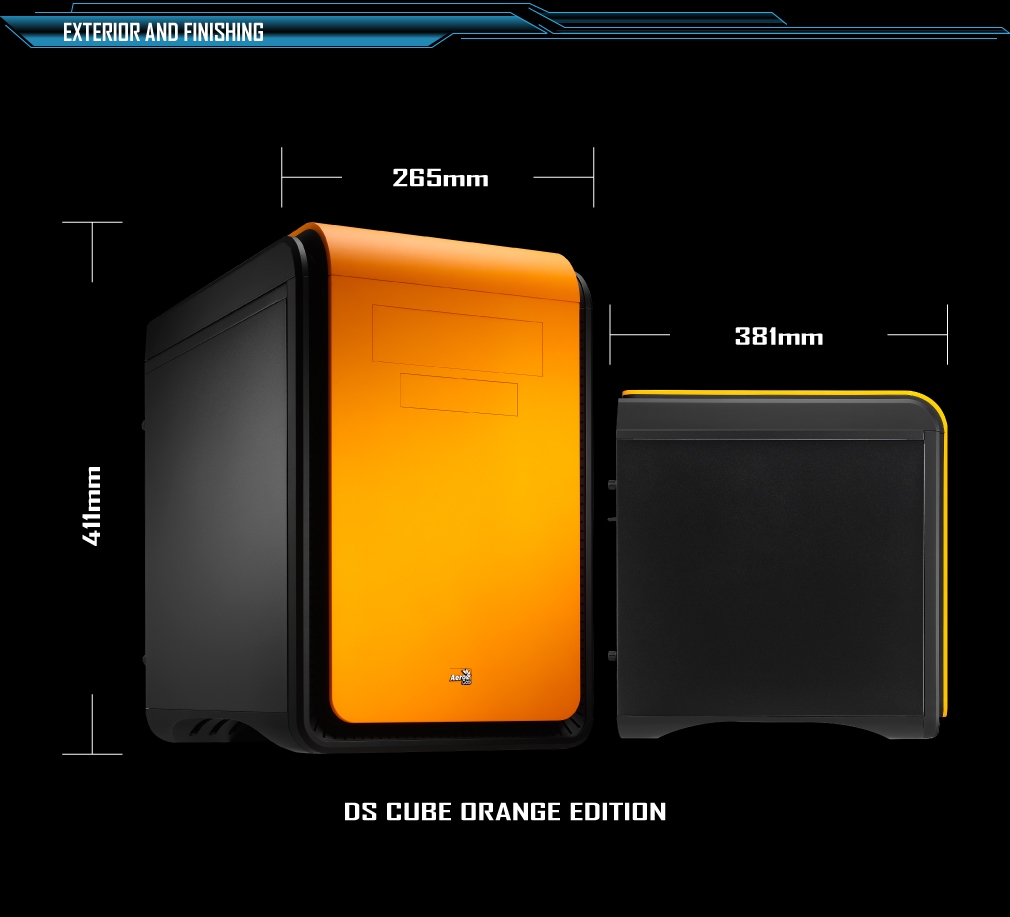

  Chassis Dimensions

Chassis only:265mm (W) x 328mm (H) x 352mm (D)

Overal: 265mm (W) x411mm (H)x 381mm (D)


  Drive Bays

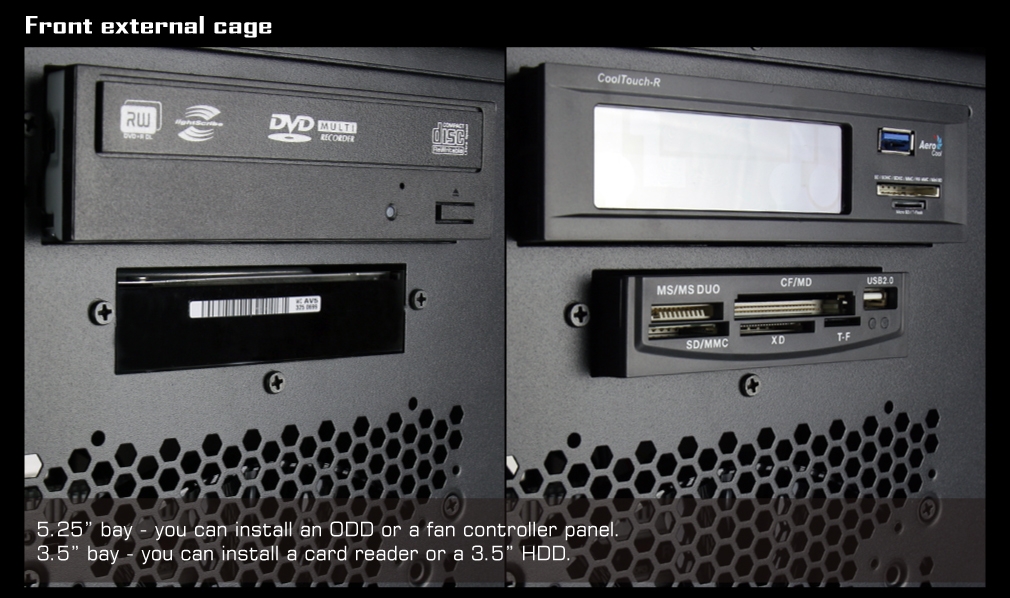

External 5.25" bay x 1
External FDD 3.5" bay x 1 (can also install 1x3.5" if no FDD installed)
Internal HDD tray x 2 (for 2.5" or 3.5")
Internal HDD rack x 1 (for 2 x 2.5")

  Expansion Slots 4

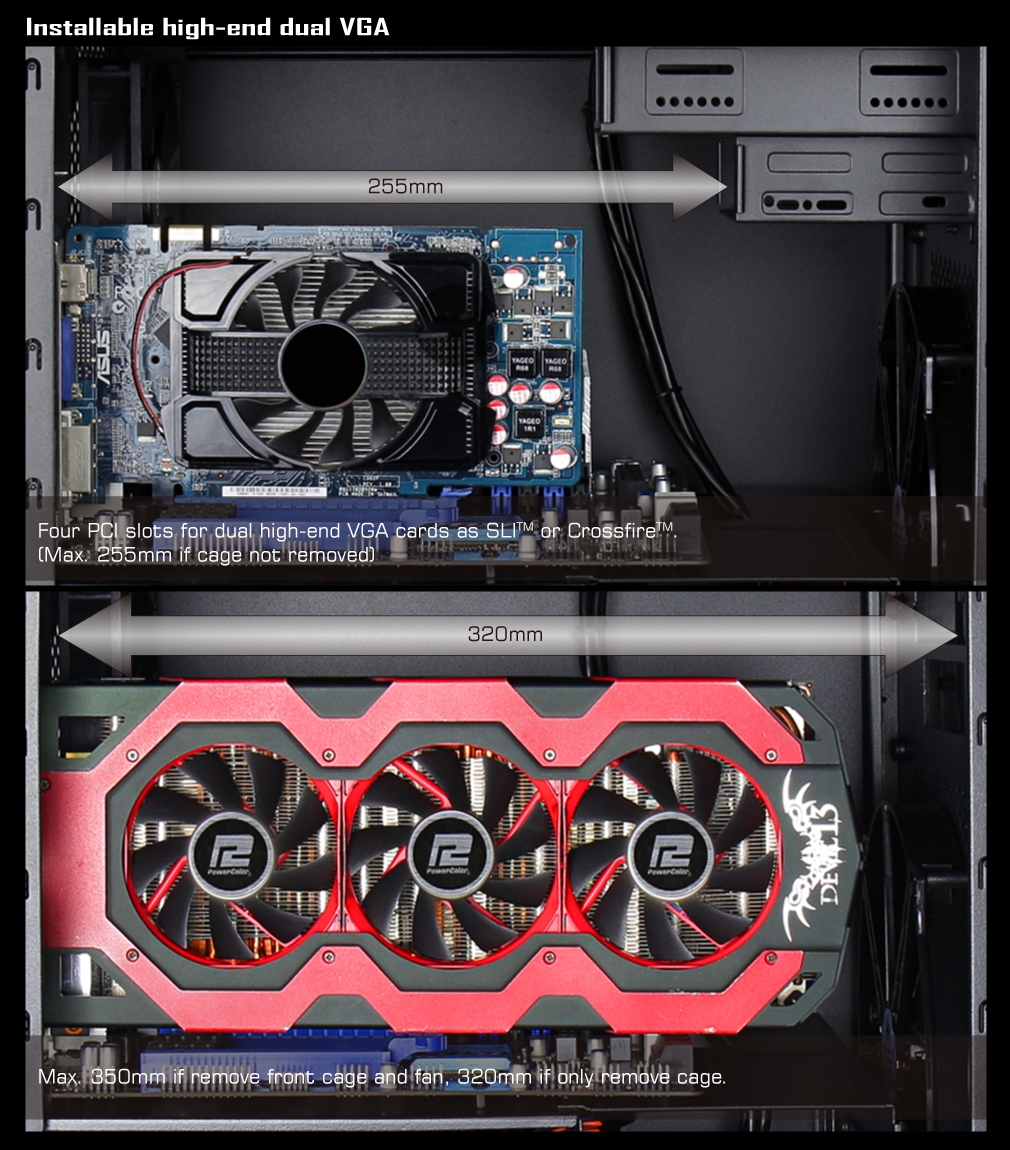

  Max length space available for PCI slots 320mm(350mm -without front fan)
  I/O Ports 2 x USB2.0 + 2 x USB3.0 / HD Audio+Mic
  Height limit for CPU coolers Support Max. height of 190mm for CPU cooler (200mm - without top fans)
