All stock codes associated to this product
CLF025PL20REA, CL-F025-PL20RE-A
Overview
Luna 20 LED Red
The Thermaltake Luna 20 LED Red provides an efficient and quiet cooling
solution inside the chassis. An anti-vibration mounting system strengthens
stability during operation. Balanced eleven-blade fan design ensures optimal
airflow. Long-life sleeve bearings for silent operation guarantee ultra-low
noise. Available in three colors (red, white and blue) to add style to your PC
case.

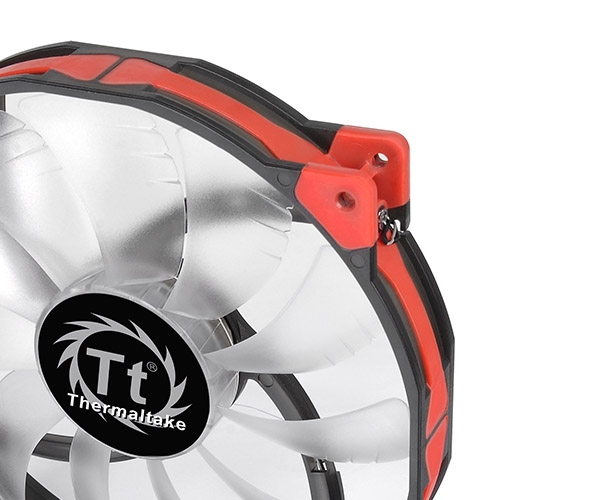

Anti-vibration Mounting System
In-mold injection anti-vibration rubber pads provide hassle-free usage for
80% protection coverage, including all four corners and the frame
Long-life Bearing
With better stiffness, long-life sleeve bearings are suitable for moderate-
to high-speed applications, offering enhanced reliability and extended life
spans.
Unique Fan Blade
Design Special eleven fan blade design provides higher air airflow but
generate less noise.
Higher Air Inflow, Less Noise
Enlarged fan frame opening enhances inflow with a fan speed of up to 800 rpm.
The fan delivers exceptional airflow at a low noise level of 28.2 dBA.

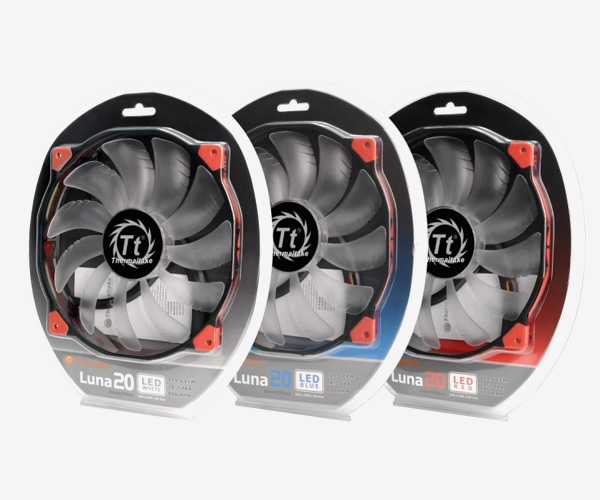

3 Colors of Luminous LED
The Luna 20 LED series is available in three vivid colors: red, white and
blue. Embellish the chassis in your own way.
Specifications
|
P/N |
|
CL-F025-PL20RE-A |
|
Fan
Dimension |
200 x 200 x 30
mm |
|
Started
Voltage |
9
V |
|
Rated
Voltage |
12
V |
|
Rated
Current |
0.3
A |
|
Power
Input |
3.6
W |
|
Fan
Speed |
800
R.P.M |
|
Max. Air
Pressure |
0.996
mm-H2O |
|
Max. Air
Flow |
129.639
CFM |
|
Noise |
28.2
dB-A |
|
Bearing
Type |
Sleeve |
|
Life
Expectation |
30,000 hrs,25 |
|
Connector |
3
PIN |
|
Weight |
293
g |
