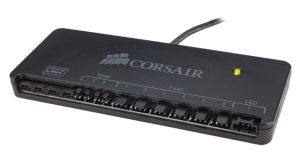

Corsair Commander Mini
CL-9011108-WW
Overview
The compact heart of your Corsair Link system.
The Corsair Commander Mini is a centralized control unit for Corsair Link. It has four Corsair Link Digital ports, six fan control connectors, four temperature inputs, and a port for connecting Corsair Link LED lighting strips.
Installation is easy: place the unit inside your case and secure it with the included mounting kit, attach a SATA connector for power, and use the included cable to connect it to a USB 2.0 header on your motherboard. Then, download the free Corsair Link Dashboard software and take command of your system like never before.
Corsair Link gives you ultimate control — your system, your rules.
Corsair Link marks an end to the days of case fans, component fans and case lighting that must be managed manually with hardware switches and dials, while simultaneously offering more advanced control and expansion options than motherboard BIOS settings. Everything is available on your screen with a software interface that’s advanced, intuitive, and fun to use.
Precise Monitoring
Understand how your system is operating at a glance, and with an unprecedented level of detail. See coolant temperature and ambient temperature at multiple points, and track the speed of your case fans and fans built in to compatible system components. Corsair Link Dashboard displays everything you need via an attractive, customizable interface.
A New Level of Control
Manage fan speeds individually, set up customized cooling profiles, or program fans to respond to changes in ambient temperature – the choice is yours. You can program lighting to relay critical system information, change the look of your system to provide an instant visual indicator of your selected cooling profile, or just have fun. And with Corsair Link Dashboard, you can do it all without opening your PC’s case.
Expandable Eco-System
The fan controllers work with virtually any standard PC case fan, and the included temperature sensors can go anywhere in your case. Expand your power by adding compatible peripherals, including Corsair i-Series liquid CPU coolers, i-Series power supplies, and DRAM cooling systems which feature the Corsair Link Digital logo.
Contents and Specifications
Package contents
- 1 x Corsair Commander Mini
- 1 x Corsair Link Digital connection cable
- 3 x Fan extension cables
- 4 x Thermistor cables
- 1 x Mounting Tape
Compatibility
- Windows 7, Windows 8, Windows 8.1
- Requires a motherboard with an internal USB 2.0 header
Technical specifications
Power
- Commander Mini is powered by a standard SATA power connector
Data
- Internal motherboard USB 2.0 header
Tech Specs
|
Electrical Specifications
|
| Power supply voltage input |
11.4 - 12.6 V |
| Maximum power per fan header |
1 A |
| Maximum power for RGB LED channel |
2 A |
| Maximum power for all 6 fan headers and RGB LED channel |
4 A |
