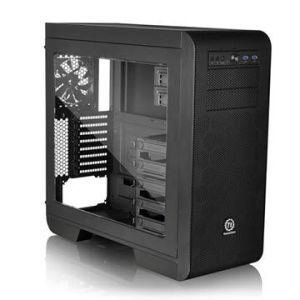

ThermalTake Core V51 Midi-Tower Case - NO PSU, Black
  • 2xUSB3.0, 1xHD-Audio, 3x120mm Fan, Side-Window, Steel, ATX

IMG 1 of 8
No Longer Available
Part Number:
373567
(?) Brand:
ThermalTake Web Site
Manuf No:
CA-1C6-00M1WN-00
CA1C600M1WN00
Shipping Weight:
25 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
CA1C600M1WN00, CA-1C6-00M1WN-00
Core V51

P/N: CA-1C6-00M1WN-00

Design

Features

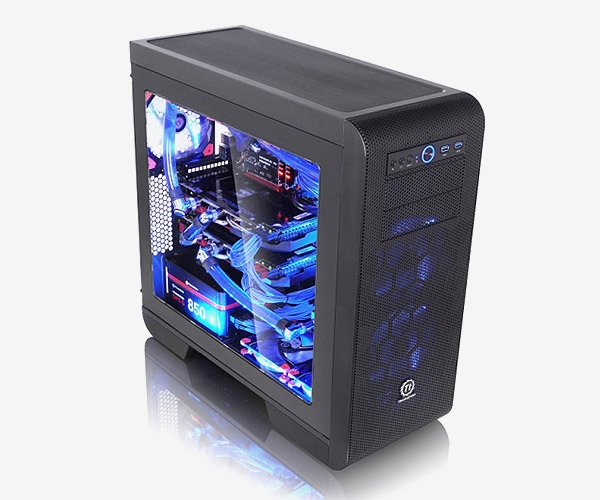

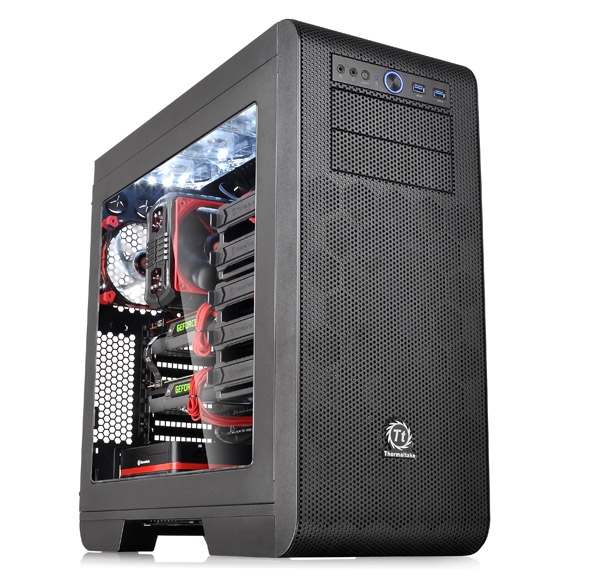

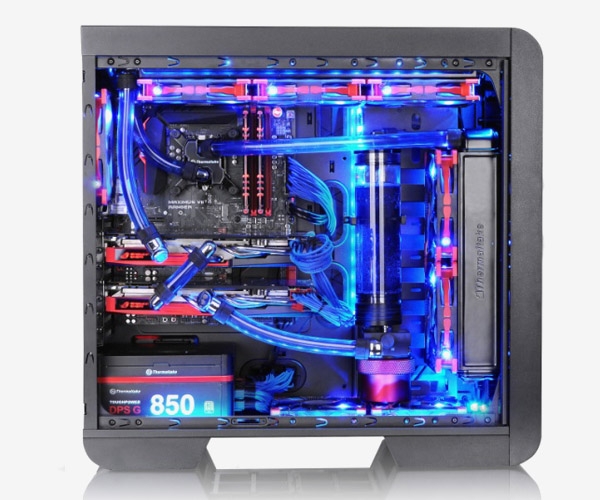

Thermaltake Core V51 Window Mid-Tower Chassis

Thermaltake Core V51 mid-tower chassis, a new member of the Core Series, which now comes after the launch of Core V71 and Core V1, retaining the curved metal mesh look and delivering an outstanding cooling performance with the compatibility for the extensive DIY/AIO LCS, and the air cooling units that the series has become so very well known for. Core V51 is an enthusiasts grade mid-tower that creates unprecedented space for high-end hardware and liquid cooling expansion, supporting the latest E-ATX, ATX, Micro ATX motherboards, and all high-end GPU cards.


Enthusiast Design

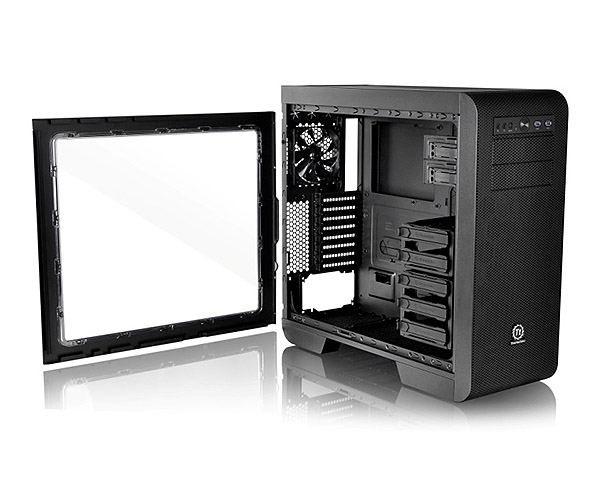

Designed for gamers, the perforated top panel allows easy heat dissipation and rapid air intake for maximum ventilation. The heightened case-stands at the bottom help to enhance airflow and overall stability during operation. Featuring a transparent side window to offer a direct view of the inner system.


Tool-free Installation

Innovative 5.25 & 3.5 tool-free drive bay design has minimized the hassles of installing/removing. 2 + 5 drive bays with modular drive racks, a typical ratio for accessory and storage devices.

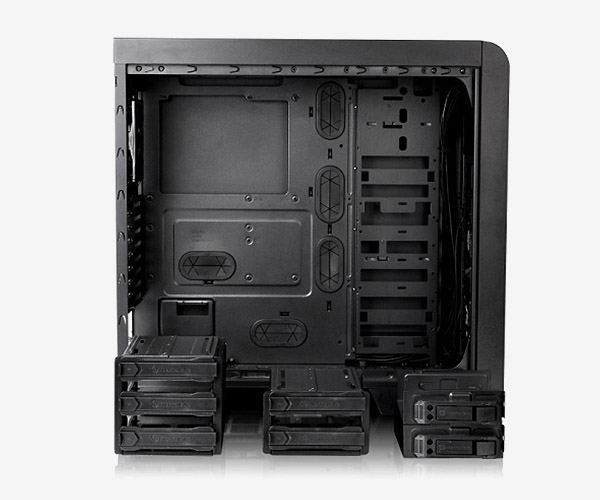

Fully Modular Design

A highly customizable 5.25 & 3.5 drive bay feature enables users to freely interchange the 3.5 hard-drive cages to suit their needs and remove the 5.25 & 3.5 drive bays to gain maximum interior space for advance cooling performance or liquid system build.




Advanced Ventilation

Core V51 delivers an outstanding cooling performance, consisting of DIY/AIO liquid cooling systems and air cooling units. Two 120mm intake fans are hidden behind the front dust filter, quietly pushing vast amounts of air over the hard drives and GPUs. The air is then extracted by the third 120mm fan at the rear. Additionally, with the aid of the cable management design guaranteed to take the cooling performance to the next level.

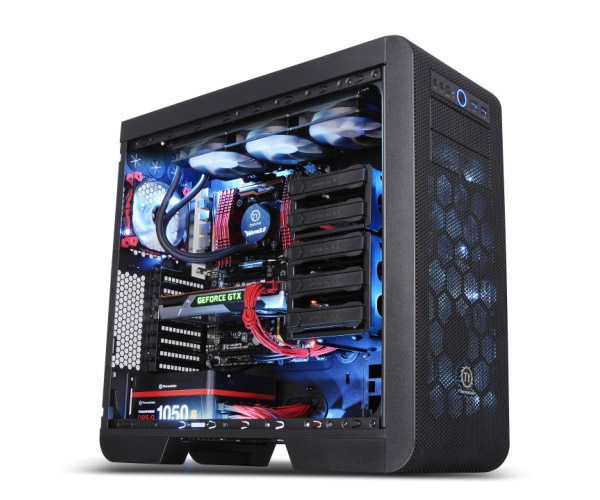

High-end Complete Solution

Core V51 enables users to build a complete high-end system, whilst supporting up to either 420mm radiator liquid cooling, or 200mm case fans, with a long graphic card at the same time, and simultaneously protecting the user’s hardware as well as

increasing the CPU’s overclocking potential. Most importantly, it has the capability to deliver an outstanding cooling efficiency throughout the entire case.

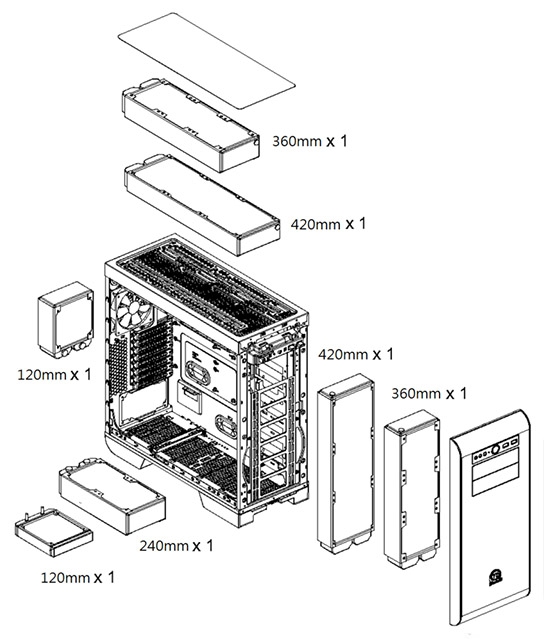

Core V51 Radiator Supporting List

Radiator Compatibility
  120mm 140mm 240mm 280mm 360mm 420mm
Front   *   * * *
Top   *   * * *
Rear *
Bottom *   *

Water 3.0 Compatibility List
  Ultimate Extreme Pro Performer
Front * * * *
Top * * * *
Rear     * *
Bottom   * * *

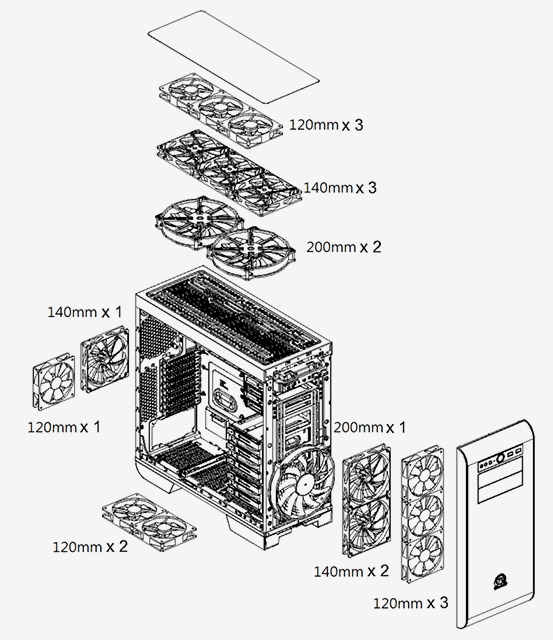

Core V51 Fan Supporting List

Fan Compatibility List
  120mm 140mm 200mm
Front 3 2 1
Top 3 3 2
Rear 1 1 -
Bottom 2 - -
Thermaltake Compatible Fan
Pure FAN Series * * *
Luna FAN Series * * *
Odin Fan Series *


Specifications:


Model Core V51
Case Type Mid Tower
Dimension (H x W x D) 540 x 236 x 560 mm (21.3 x 9.3 x 22 inch)
Side Panel Transparent Window
Color Exterior & Interior : Black
Material SPCC
Cooling System Front (intake) :
120 x 120 x 25 mm Turbo fan (1000rpm, 16dBA) x 2
Rear (exhaust) :
120 x 120 x 25 mm Turbo fan (1000rpm, 16dBA)
Drive Bays -Accessible : 2 x 5.25
-Hidden : 5 x 3.5 or 5 x 2.5
Expansion Slots 8
Motherboards 6.7 x 6.7 (Mini ITX), 9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX), 12 x 13 (Extend ATX)
I/O Port USB 3.0 x 2, HD Audio x 1
PSU Standard PS2 PSU (optional)
LCS Upgradable Supports 1/23/81/4 water tube
Fan Support Front:
1 x 120mm or 2 x 120mm or 3 x 120mm
1 x 140mm or 2 x 140mm
1 x 200mm
Top:
1 x 120mm or 2 x 120mm or 3 x 120mm
1 x 140mm or 2 x 140mm or 3 x 140mm
1 x 200mm or 2 x 200mm
Rear:
1 x 120mm or 1 x 140mm
Bottom:
1 x 120mm or 2 x 120mm
Radiator Support Front:
1 x 120mm or 1 x 240mm or 1 x 360mm
1 x 140mm or 1 x 280mm or 1 x 420mm
Top:
1 x 120mm or 1 x 240mm or 1 x 360mm
1 x 140mm or 1 x 280mm or 1 x 420mm
Rear:
1 x 120mm
Bottom:
1 x 120mm or 1 x 240mm
Clearance CPU cooler height limitation: 185mm
VGA length limitation:
310mm(with HDD rack)
480mm(without HDD rack)
PSU length limitation: 220mm (With Bottom Fan)
