All stock codes associated to this product
, CFANFROSTWIN, CFAN-FROSTWIN
Design
Description

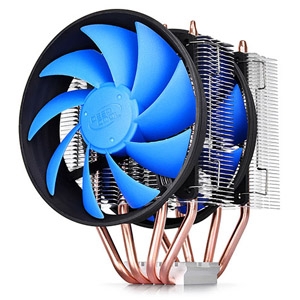

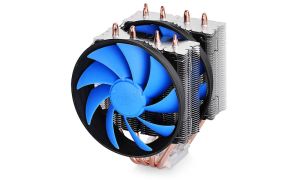

High Cooling Performance Frostwin V2.0 offers CTT Core Touch Technology quick thermal solution. Cool appearance fan offers aesthetic appreciation. Dual super silent 120mm fan plus with one PWM function offer a perfect balance and airflow requirement. Great compatibility has made Frostwin V2.0 the ideal selection for mainstream CPU.
Highly Effective Cooling Performance

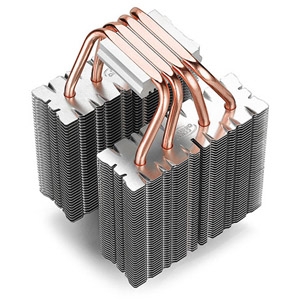

4 sintered powder heatpipes directly touch the CPU surface and conduct heat from the processor quickly to protect it from overheating &Twin tower heatsinks give superb cooling performance.

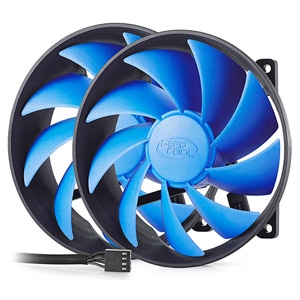

Dual 120mm Fans With PWM Function
Dual super silent 120mm fans, one with PWM function, offer a perfect balance between airflow and noise.
Core Touch Technology
Patented Core Touch Technology (CTT) gives perfect contact with the CPU surface.

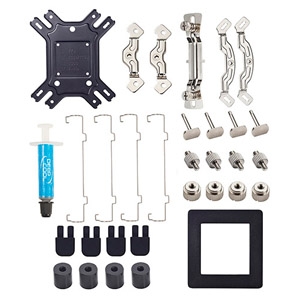

Universal Socket Compatibility
Equipped with multiple clips to support Intel LGA2011/1366/1156/1155/1150/775 and AMD FM2/FM1/AM3+/AM3/AM2+/AM2.
Features
Equipped with multiple clips to support Intel LGA2011/1366/1156/1155/1150/775 and AMD FM2/FM1/AM3+/AM3/AM2+/AM2.
4 sintered powder heatpipes directly touch the CPU surface and conduct heat from the processor quickly to protect it from overheating.
Twin tower heatsinks give superb cooling performance.
Dual super silent 120mm fans, one with PWM function, offer a perfect balance between airflow and noise.
Patented Core Touch Technology (CTT) gives perfect contact with the CPU surface.
Specifications
Application For
Intel Socket 130W |
AMD Socket 125W |
LGA2011/LGA1366/LGA1156/LGA1155/LGA1150/LGA775 |
FM2/FM1/AM3+/AM3/AM2+/AM2 |
Core i7/i5/i3 Core 2 Extreme Core 2 Quad Core 2 Duo Pentium/Pentium G Pentium D/Pentium 4 Celeron Dual-Core Celeron/Celeron D |
FX X8/X6/X4 A10/A8/A6/A4 Phenom II X6/X4/X3/X2 Phenom X4/X3 Athlon II X4/X3/X2 Athlon X2 Athlon/Athlon FX Business Class Sempron |
Technical Specifications
Overall Dimension |
|
Fan Dimension |
|
Net Weight |
|
Bearing Type |
|
|
|
|
|
|
Hydro Bearing |
Rated Voltage |
|
Operating Voltage |
|
Started Voltage |
|
Rated Current |
12VDC |
|
10.813.2VDC |
|
7VDC |
|
|
Power Input |
|
Fan Speed |
|
Max. Air Flow |
|
Noise |
|
|
160010%RPM /900150~160010%RPM
|
|
|
|
|

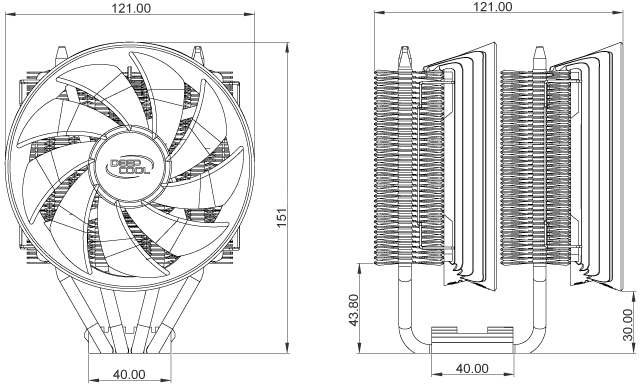

Product Dimension
