All stock codes associated to this product
DPATXTSRSWWH, DP-ATX-TSRSWWH
Design
Description
Tesseract series computer case comes with multiple features. Its great compatibility, simple design and uncompromising cooling performance have made it a popular choice for many DIY enthusiasts and gamers. Up to six fan installation, 310 mm graphic card space and various DIY features, what else could you possibly ask for?

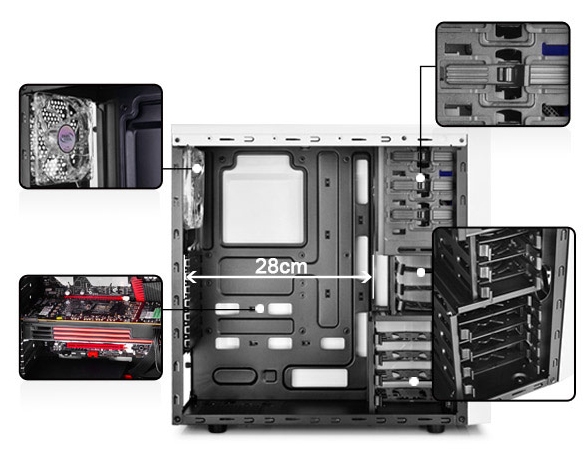

Innovative Design for DIY Usage
- ODD installation tool-free design.
- 2.5HDD/SDD and 3.5 HDD installation tool-free design
- Pre-installed one DC fan on the rear.
- High VGA card and CPU cooler installation compatibility.

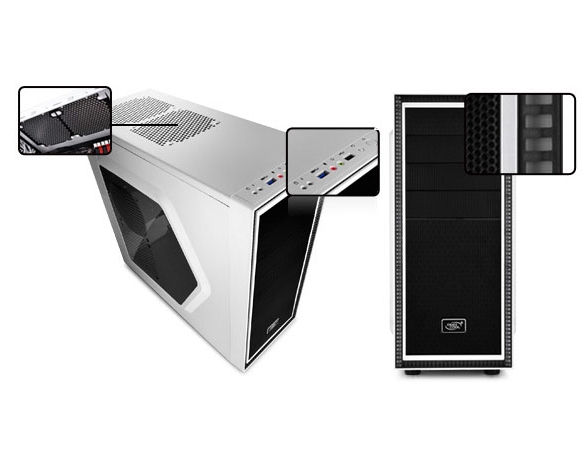

Top Panel Refinement
- Dust-filter in the top panel.
- USB ports, plugholes and switches
- on top panel for easier operation.
- Full dust-filter in the interior panel.
- Patented air intake channel on the perimeter of the front panel.

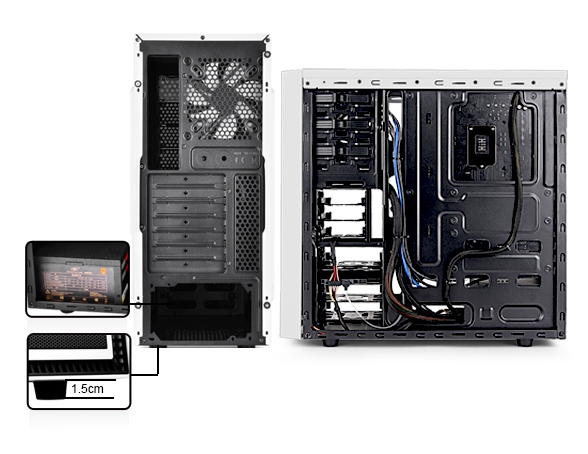

PSU Protective Approaches
Bottom located PSU for better space management.
Ground-lifted design for better air dynamic and cooling performance of PSU fan's air intake.
Backplate Cable Installation
Multiple channels for supreme cable management.
Features
- Side window makes appearance more fashionable and shining
- Anti-dust filters in top, bottom and front panel
- One USB 3.0 + one USB 2.0 Ports
- Fully black painted interior
- Patented air intake channel on the perimeter of the front panel
- Fully metal mesh design for the most cooling
- Available room for long VGA card installation
- Rail slide HDD design for HDD easy installation
- Tool free installation design for ODD/HDD
- Wide CPU cut out for CPU cooler mounting
- Bottom loaded PSU for effective cooling and large inner space
- Support cable management
Technical Spec
| Motherboards |
ATX/MINI ATX/MICRO ATX/MINI-ITX |
| Materials |
SPCC+PLASTIC (Panel thickness: 0.7mm) |
| Dimension (LxWxH) |
472*210*454mm |
| Net Weight |
5.1kg |
| 5.25" Drive Bays |
2 (all tool-free installation) |
| 3.5" Drive Bays |
4 (all tool-free installation) |
| 2.5" Drive Bays |
3 (all tool-free installation) |
| I/O Panel |
1USB3.0/1USB2.0/Audio1/Mic1 |
| Expansion Slots |
7 |
| Cooling Fans |
Included:
Rear: 1120mm DC fan;
Optional:
Front: 1120mm;
Top: 2120mm;
Side: 2120mm |
| Power Supply Type |
ATX PS2 |
| CPU Cooler Compatibility |
165mm |
| VGA Compatibility |
310mm |
