All stock codes associated to this product
CP9971CLCAMK9=, CP-9971-CL-CAM-K9=, CP-9971-CLCAMK9=, 882658344626

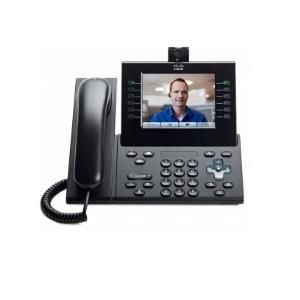

Cisco UC Phone 9971, Charcoal, Slimline
Product Overview
The Cisco Unified IP Phone 9971 is an executive class collaboration endpoint that provides voice, video, applications and accessories. Highlights include Gigabit Ethernet, Wideband Audio, Color Touchscreen Display, desktop Wi-Fi connectivity along with a new industrial design and user interface designed for simplicity and high usability. Accessories, sold separately, include a standard definition USB camera, Jawbone ICON for Cisco Bluetooth headset, color Key Expansion Module plus support for Bluetooth, USB, Secure Digital Input Output (SDIO) devices. Application support includes XML capabilities.
Features and Benefits
Newly developed industrial design and user experience designed for use with its VGA touchscreen display
H.264 video support for 2-way standard definition calling with USB support for the Cisco Unified IP Camera
Choice of 802.11 a/b/g desktop wi-fi connectivity or Gigabit Ethernet network connectivity and switch port available for a downstream PC
Embedded Bluetooth radio and 2 USB ports for headsets and the camera
Firmware support for XML applications
Specifications
|
Basic Specification
|
| Marketing Text: |
The Cisco Unified IP Phone 9971 is an advanced collaborative media endpoint that provides voice, video, applications, and accessories. Highlights include interactive multiparty video, high-resolution color touchscreen display, High-definition voice (HD voice), desktop Wi-Fi connectivity, Gigabit Ethernet and a new ergonomic design and user interface designed for simplicity and high usability. Accessories, sold separately, include the Cisco Unified Video Camera and the Cisco Unified IP Color Key Expansion Module |
|
DIMENSIONS
|
| Depth (mm): |
39.7 |
| Height (mm): |
234.0 |
| Width (mm): |
262.5 |
|
DISPLAY FEATURES
|
| Display Resolution: |
640 x 480 |
| Display Size: |
5.6 inch |
| Display Type: |
TFT |
|
OTHER FEATURES
|
| Audio Features: |
General-purpose audio-in and audio-out ports enable a relaxed speakerphone experience over external speakers
and the microphone |
| Network Features: |
* Cisco Discovery Protocol
* Transparent secure roaming
* Provisioning of network parameters through DHCP |
| Other Features: |
* Newly developed ergonomic design and user experience designed specifically for use with the high-resolution, VGA, graphical, backlit, anti-glare, color touchscreen display
* H.264 video support for two-way standard-definition calling with USB support for the Cisco Unified Video Camera
* Embedded Bluetooth radio and 2 USB ports for added freedom and convenience, with support for both wireless and wired headsets
* Firmware support for XML and MIDlet-enabled applications |
| Security: |
* Image authentication
* Device authentication
* File authentication
* Signaling authentication
* Media encryption using Secure Real-Time Transfer Protocol (SRTP)
* Signaling encryption using Transport Layer Security (TLS) Protocol
* Certificate authority proxy function (CAPF)
* Secure profiles
* Encrypted configuration files |
|
PHONE FEATURES
|
| Button Type: |
Six Feature Buttons |
| Codec Support: |
G.711 |
| Interface Type: |
1 x RJ-45 |
| No. of Phone Lines: |
6 |
| Signaling Protocol Support: |
SIP |
| Wireless Technology Supported: |
IEEE 802.11a/b/g |
|
PRODUCT
|
| Brand Name: |
Cisco |
| Manufacturer Web Site: |
https://www.cisco.com |
| Product Line: |
Not defined |
| Product Model: |
9971 |
| Product Type: |
IP Phone |
|
SWITCH FEATURES
|
| No. of Port: |
2 |
| Switch Type: |
10/100BASE-T Ethernet |
