All stock codes associated to this product
LJM630F(B3G85A)

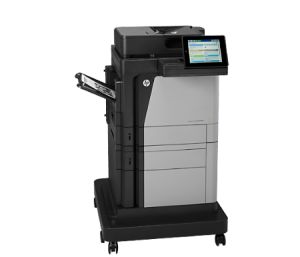

HP LaserJet Enterprise MFP M630f
(B3G85A)
Overview
A full-featured HP Enterprise MFP that accelerates productivity and streamlines digital workflow, safeguards business data and documents with a robust suite of top-flight security features, and offers simple, efficient mobile printing.
Features
Powerful performance to enhance workflow
Finish fasterwithout missing a pageusing single-pass, dual-head scanning, and the automatic document feeder.
Manage jobs directly at the MFP, using the 8-inch color touchscreen with image preview.
Enable employees to organize documents quickly and conveniently with optional finishing tools.2
Quickly troubleshoot problems with cloud-based help services that are relevant and up to date.3
Protecting your businessnow and in the future
Safeguard and manage your printing with the HP Imaging and Printing Security Center and HP Web Jetadmin.4
Confidently safeguard the sensitive data sent to your MFP with the encrypted hard drive.
Depend on this MFP for easy solutions as technologies advance.
Safeguard security keys, passwords, and certificates with the HP Trusted Platform Module.6
Quick and easy mobile printing7
Enable optional touch-to-print and touch-to-authenticate convenience from mobile devices.8
Enable secure peer-to-peer direct-access mobile printing without connecting to the corporate network.9
Print on the go from your smartphone, tablet, and notebook with HP ePrint10 and AirPrint.11
Specifications
Functions
-
- Print, copy, scan, fax, digital send, print from Easy Access USB, scan to Easy Access USB
Multitasking supported
Yes
Printing specifications
Print speed black:
Normal: Up to 60 ppm8
First page out (ready)
Black: As fast as 8.5 sec9
Duty cycle (monthly, A4)
Up to 250,000 pages10
Recommended monthly page volume
5,000 to 28,00011
Print technology
Laser
Print quality black (best)
Up to 1200 x 1200 dpi
Print languages
-
- HP PCL 6
- HP PCL 5 (HP PCL 5 driver available from the Web only)
- HP postscript level 3 emulation
- native PDF printing (v 1.7)
- Apple AirPrint
Processor speed
800 Mhz
Automatic paper sensor
No
Connectivity
HP ePrint capability
Yes
Mobile printing capability
HP ePrint, Apple AirPrint, Mobile Apps, optional Touch to Print, optional Wireless Direct printing, optional Touch to Authenticate5
Wireless capability
Optional, wireless enabled with purchase of HP Jetdirect 2700w USB Wireless Print Server J8026A or HP Jetdirect ew2500 802.11b/g Wireless Print Server J8021A
Wireless direct and NFC enabled with purchase of HP Jetdirect 2800w NFC/Wireless Direct Accessory J8029A
Connectivity, standard
-
- Hi-Speed USB 2.0 port
- built-in Gigabit Ethernet 10/100/1000Base-TX network port
- Fax
Network ready
Standard (built-in Gigabit Ethernet)
Connectivity, optional
-
- HP Jetdirect 2700w USB Wireless Print Server J8026A
- HP Jetdirect 2800w NFC/Wireless Direct Accessory J8029A
- HP Jetdirect ew2500 802.11b/g Wireless Print Server J8021A
Minimum system requirements
- Windows full software installs supported on: Windows 8 & 8.1 (32/64-bit), Windows 7 (32/64-bit), Windows Vista (32/64-bit), Windows XP 32-bit (SP2 or higher)
- Mac full software installs: OS X 10.7 Lion, OS X 10.8 Mountain Lion, OS X 10.9 Mavericks
- Mobile OS native print support: iOS, Android, Windows 8 RT
- Other OSs driver support: Debian (5.0, 5.0.1, 5.0.2, 5.0.3) (supported by the automatic installer), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), HPUX 11 and Solaris 8/9, Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package), SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04)
- CD-ROM or DVD drive, or Internet connection
- Dedicated USB or network connection or Wireless connection
- 200 MB available hard disk space
- OS X 10.7 Lion, OS X 10.8 Mountain Lion, OS X 10.9 Mavericks
- Internet
- USB
- 1 GB HD
Compatible operating systems
Windows XP (SP3) (32-bit), Windows XP (SP3) (64-bit), Windows 7 (Including Starter Edition 32-bit), Windows 7 (Including Starter Edition 64-bit), Windows Vista (Including Starter Edition 32-bit), Windows Vista (64-bit), Windows 8 Basic (32-bit), Windows 8 Pro (32-bit), Windows 8 Enterprise (32-bit), Windows 8 Enterprise N (32-bit), Windows 8 Basic (64-bit), Windows 8 Pro (64-bit), Windows 8 Enterprise (64-bit), Windows 8 Enterprise N (64-bit), Windows 8.1 (64-bit)
OS X 10.7 Lion, OS X 10.8 Mountain Lion, OS X 10.9 Mavericks
Mobile Operating Systems: iOS, Android, Windows 8 RT
Other Operating Systems: Debian (5.0, 5.0.1, 5.0.2, 5.0.3) (supported by the automatic installer), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), HPUX 11 and Solaris 8/9, Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package), SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04)14
Memory specifications
Memory, standard
1.5 GB (System Memory)
Memory, maximum
2.0 GB (System Memory)
Hard disk
Standard, minimum 320 GB HP High-Performance Secure Hard Disk (AES 256 hardware encryption or greater)
Paper handling
Paper handling input, standard
100-sheet multipurpose tray, two 500-sheet input trays, 100-sheet automatic document feeder
Paper handling input, optional
Optional envelope feeder
Paper handling output, standard
500-sheet output bin
Paper handling output, optional
Optional 900-sheet, 3-bin stapling mailbox
Maximum output capacity (sheets)
Up to 900 sheets
Duplex printing
Automatic (standard)
Media sizes supported
Tray 1: A4, A5, A6, RA4, B5 (JIS), B6 (JIS), 10 x 15 cm, Oficio (216 x 340 mm), 16K, envelopes (C5, B5, C6, DL ISO), Postcard (JIS single and double); Trays 2, 3: A4, A5, RA4, B5 (JIS), Oficio (216 x 340 mm), 16K
Media sizes, custom
Tray 1: 3 x 5 to 8.5 x 14 in; Trays 2, 3: 5.83 x 8.27 to 8.5 x 14 in
Media sizes, custom
Tray 1: 76 x 127 to 216 x 356 mm; Trays 2, 3: 148 x 210 to 216 x 356 mm
Media types
Paper (plain, light, bond, recycled, heavy, extra heavy, cardstock, pre-printed, pre-punched, colored, rough, heavy rough), mono transparency, labels, letterhead, envelope, heavy envelope
Media weight, supported
Tray 1: 60 to 200 g/m; Trays 2, 3: 60 to 120 g/m
Media weights, supported ADF
60 to 120 g/m
Scanner specifications
Scanner type
Flatbed, ADF
Scan file format
Digital Send: PDF, JPEG, TIFF, MTIFF, XPS, PDF/A; Scan to easy access USB: PDF, JPEG, TIFF, MTIFF, XPS, PDF/A
Scan resolution, optical
Up to 600 dpi
Scan size (flatbed), maximum
216 x 356 mm
Scan size (ADF), maximum
216 x 356 mm
Scan size (ADF), minimum
68 x 148 mm
Scan speed (normal, A4)
Up to 60 ppm (b&w), up to 45 ppm (color)13
Recommended monthly scan volume
14,250 to 23,750
Duplex ADF scanning
Yes, single pass duplexing ADF
Automatic document feeder capacity
Standard, 100 sheets
Digital sending standard features
-
- Scan to e-mail; Save-to-Network Folder; Save-to-USB drive; Send to FTP; Send to LAN Fax; Send to Internet Fax; Local Address Book; SMTP over SSL; Scan to HP Flow CM
File formats, supported
Digital Send: PDF, JPEG, TIFF, MTIFF, XPS, PDF/A
Scan to easy access USB: PDF, JPEG, TIFF, MTIFF, XPS, PDF/A
Print from easy access USB: PDF, PS, Print Ready files (.prn, .pcl, .cht)
- Scan input modes
- Front panel applications: Copy, E-mail, Save to Network Folder, Save to USB, Save to Device Memory, Open Extensibility Platform (OXP) applications
Copier specifications
Copy speed (normal)
Black: Up to 60 cpm6
Copy resolution (black text)
Up to 600 x 600 dpi (Flatbed), 300 x 600 dpi (ADF)
Copy resolution (color text and graphics)
Up to 600 x 600 dpi (Flatbed), 300 x 600 dpi (ADF)
Copy reduce / enlarge settings
25 to 400%
Copies, maximum
Up to 9999 copies
Fax specifications
Faxing
Yes
Fax transmission speed
3 sec per page15
Fax memory
Incoming fax can be stored to disk
Fax resolution
Up to 300 x 300 dpi
Speed dials, maximum number
Up to 100 (each can contain 100 numbers)
Broadcast locations
100
Power and operating requirements
Power
110-volt input voltage: 100 to 127 VAC (+/- 10%), 50/60 Hz (+/- 2 Hz), 12 A; 220-volt input voltage: 220 to 240 VAC (+/- 10%), 50 Hz (+/- 2 Hz), 6 A (Not dual voltage, power supply varies by part number with # Option code identifier)
Power consumption
970 watts (Printing), 6.5 watts (Sleep), 0.1 watts (Manual Off), 1.60 watts (Auto-Off/Wake on LAN), 0.1 watts (Auto-Off/Manual On)3
Energy efficiency
-
- ENERGY STAR qualified
- Blue Angel
- CECP
- EPEAT Silver
Operating temperature range
15 to 32.5C
Operating humidity range
30 to 70% RH
Acoustic power emissions (ready)
4.4 B(A)7
Acoustic pressure emissions bystander (active, printing)
58 dB(A)7
Dimensions and weight
Minimum dimensions (W x D x H)
737 x 643 x 1110 mm1
Maximum dimensions (W x D x H)
995 x 643 x 1142 mm (with multipurpose tray and output bin fully extended)1
Weight
73.5 kg
Package weight
93.58 kg (AMS, EMEA), 96.95 kg (APJ)
What's included
What's in the box
HP LaserJet Enterprise MFP M630f
Black print cartridge
CD(s) with software and documentation
Getting Started Guide
Power cord
Telecom cable
Cable included
No, please purchase USB cable separately.
Replacement cartridges
HP 81A Black Original LaserJet Toner Cartridge (10,500 yield) CF281A; HP 81X High Yield Black Original LaserJet Toner Cartridge (25,000 yield) CF281X
Software included
Windows: HP Installer/Uninstaller, HP PCL 6 print driver, DXP (Device Experience), HP Help & Learn Center, HP Send Fax, HP Update, Product Registration Assist, HP Web Services Assist (HP Connected), .NET 3.5 SP1 (only installed for older Windows operating systems that lack), Setup Scan To Folder and Email; Mac: Welcome Screen (Redirects users to HP.com, or OS App Source for LaserJet Software)
Warranty
One-year, onsite warranty
Multipurpose tray closed, output bin not extended, control panel down
Includes print cartridge
Power requirements are based on the country/region where the printer is sold. Do not convert operating voltages. This will damage the printer and void the product warranty.
Declared yield value in accordance with ISO/IEC 19752. Actual yields vary considerably based on images printed and other factors. For more information, visit https://www.hp.com/go/learnaboutsupplies Actual yields vary considerably based on images printed and other factors. For details see
https://www.hp.com/go/learnaboutsuppliesHP ePrint: Requires an Internet connection to the printer. Feature works with any connected Internet- and e-mail-capable device. Requires HP Web Services Account Registration. Print times may vary. For a list of supported documents, and image types, see hp.com/go/eprintcenter. HP Wireless Direct printing; Requires purchase of optional HP Jetdirect 2800w USB Wireless Print Server J8029A HIP accessory. Apple AirPrint: Supports the following devices running iOS 4.2 or later: iPad, iPad 2, iPhone (3GS or later), iPod touch (3rd generation or later). Works with HPs AirPrint enabled printers and requires the printer be connected to the same network as your iOS device. Wireless performance is dependent upon physical environment and distance from the access point. AirPrint, the AirPrint Logo, iPad, iPhone, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. Mobile Apps: For additional solutions, see hp.com/go/mobile-printing-solutions
First Copy Out and Copy Speed measured using ISO/IEC 29183 and ISO/IEC 24735, excludes first set of test documents. For more information see https://www.hp.com/go/printerclaims. Exact speed varies depending on the system configuration, software application, driver, and document complexity
Acoustic values are subject to change. For current information see https://www.hp.com/support. Configuration tested: M630z, simplex printing, A4 paper at an average of 57 ppm.
Measured using ISO/IEC 24734, excludes first set of test documents. For more information see https://www.hp.com/go/printerclaims. Exact speed varies depending on the system configuration, software application, driver, and document complexity.
Exact speed varies depending on the system configuration, software application, driver and document complexity.
Duty cycle is defined as the maximum number of pages per month of imaged output. This value provides a comparison of product robustness in relation to other HP LaserJet or HP Color LaserJet devices, and enables appropriate deployment of printers and MFPs to satisfy the demands of connected individuals or groups.
HP recommends that the number of printed pages per month be within the stated range for optimum device performance, based on factors including supplies replacement intervals and device life over an extended warranty period.
HP SureSupply alerts you when your print cartridge is running low and helps you purchase online or locally through HP or a participating retailer. For more information, visit https://www.hp.com/go/SureSupply; only available with Original HP supplies; Internet access required.
Scan speeds measured from ADF. Actual processing speeds may vary depending on scan resolution, network conditions, computer performance, and application software.
HP Software for Mac is no longer included on the CD, but can be downloaded from https://www.hp.com - the Mac driver and Mac Utility are installed for Mac operating systems.
Based on standard ITU-T test image #1 at standard resolution. More complicated pages or higher resolution will take longer and use more memory.
